Toyota CELICA — ALTERNATOR

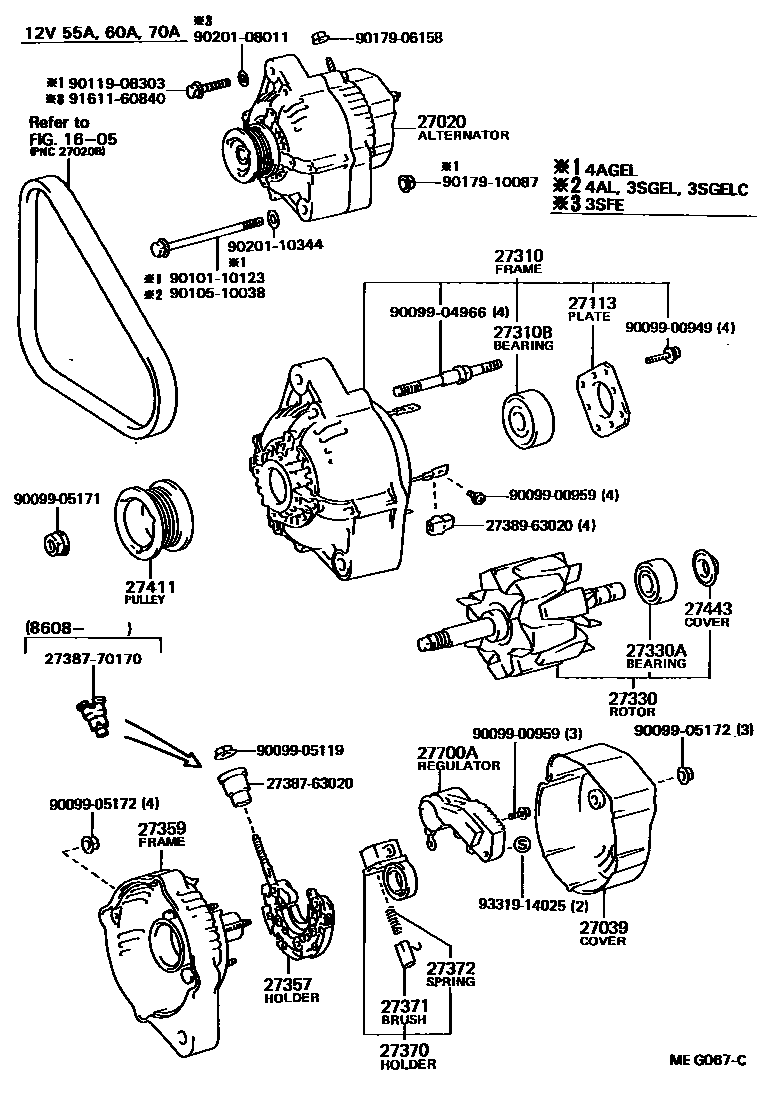

Parts diagram
1605V-BELT
→ Go to FIG 16-05
27020ALTERNATOR ASSY
main27060-16010i198508-198608
12V 60A,12V 60A
main27060-16011i198608-198702
12V 60A
main27060-16012i198702-198708
12V 60A,12V 60A
main27060-16042i198707-198708
12V 60A,12V 60A
main27060-63021i198608-198708
12V 70A,12V 70A
main27060-63060i198508-198608
12V 55A,12V 55A
main27060-63061i198608-198707
12V 55A,12V 55A
main27060-63100i198508-198608
12V 60A,12V 60A
main27060-63101i198608-198702
12V 60A,12V 60A
main27060-63102i198702-198708
12V 60A
27039COVER, ALTERNATOR REAR END
main27039-72010i198508-198708
12V 55A,60A,70A
27113PLATE, BEARING RETAINER, ALTERNATOR
main27312-72100i198508-198708
12V 55A,60A,70A
27310FRAME ASSY, DRIVE END, ALTERNATOR
main27310-16011i198508-198708
12V 60A
main27310-63021i198608-198708
12V 70A
main27310-70071i198508-198708
12V 55A,60A
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
main90099-10159i198508-198708
12V 55A,60A,70A
27330ROTOR ASSY, ALTERNATOR
main27330-72100i198508-198708
12V 55A,60A,70A
27330ABEARING(FOR ALTERNATOR ROTOR)
main90099-10140i198508-198708
12V 55A,60A,70A
27357HOLDER, ALTERNATOR, W/RECTIFIER
main27357-63020i198508-198708
12V 60A,70A
main27357-63060i198508-198707
12V 55A
27359FRAME, ALTERNATOR RECTIFIER END
main27359-16011i198508-198708
12V 60A
main27359-63021i198508-198708
12V 55A,70A
main27359-63081i198508-198708
12V 60A
27370HOLDER ASSY, ALTERNATOR BRUSH
main27370-16011i198508-198708
12V 60A
main27370-63021i198603-198708
12V 55A,60A,70A
main27370-72100i198508-198603
12V 55A,60A
27371BRUSH, ALTERNATOR
main27371-63020×2i198508-198708
12V 55A,60A,70A
27372SPRING, ALTERNATOR BRUSH
main27372-72100×2i198603-198708
12V 55A,60A,70A
27411PULLEY, ALTERNATOR
main27411-16011i198508-198708
12V 60A
main27411-63081i198508-198708
12V 55A,60A,70A
27443COVER, ALTERNATOR BEARING
main27443-63020i198508-198708
12V 55A,60A,70A
27700AREGULATOR ASSY, GENERATOR
main27700-63021i198508-198708
12V 55A,60A,70A
2738763020INSULATOR, TERMINAL
main27387-63020
2738770170INSULATOR, TERMINAL
main27387-70170
2738963020INSULATOR, TERMINAL
main27389-63020
9009900949
main90099-00949
9009900959
main90099-00959
9009904966
main90099-04966
9009905119
main90099-05119
9009905171
main90099-05171
9009905172
main90099-05172
9010110123
main90101-10123
9010510038
main90105-10038
9011908303
main90119-08303
9017906158
main90179-06158
9017910087
main90179-10087
9020108011
main90201-08011
9020110344
main90201-10344
9161160840
main91611-60840
9331914025
main93319-14025

34 parts on this diagram · 1 diagram in section

ALTERNATOR for Toyota CELICA

This section contains 34 genuine Toyota parts for the ALTERNATOR system of the Toyota CELICA. Key components include: V-BELT, ALTERNATOR ASSY, COVER, ALTERNATOR REAR END, PLATE, BEARING RETAINER, ALTERNATOR, FRAME ASSY, DRIVE END, ALTERNATOR.
