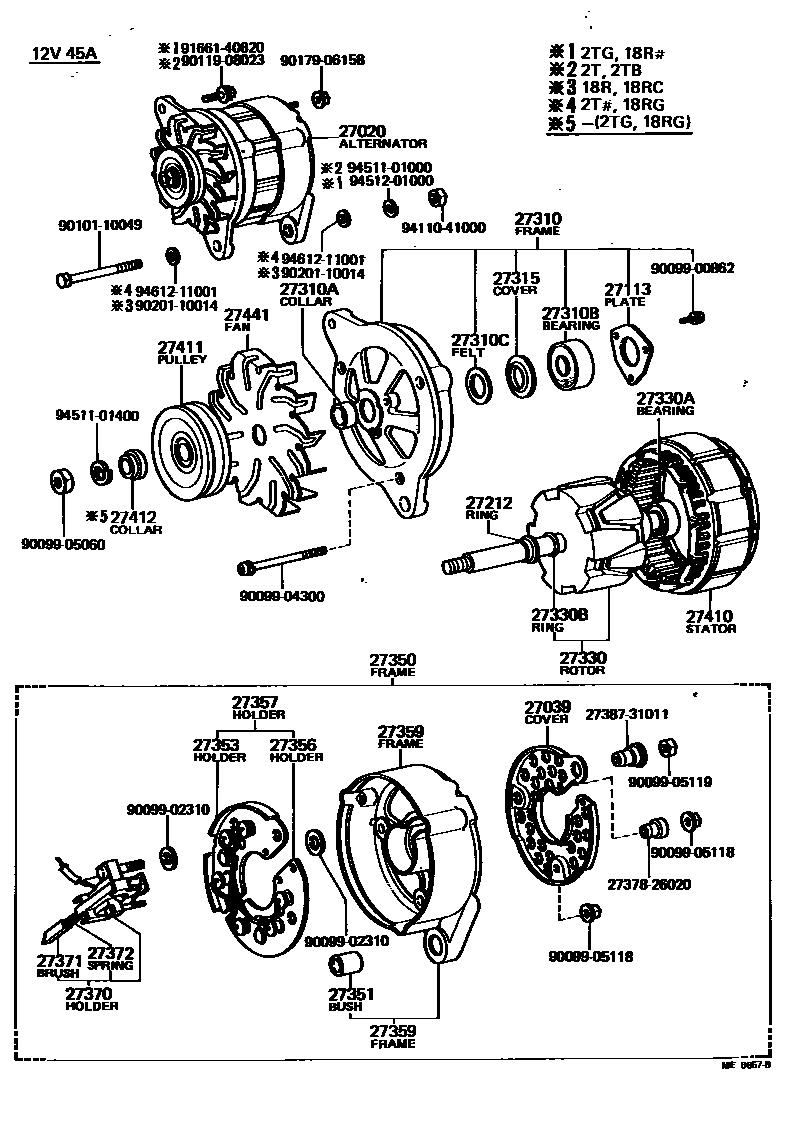

Toyota CELICA — ALTERNATOR
27020ALTERNATOR ASSY
12V 45A
12V 50A(A TYPE)
12V 50A(B TYPE)
12V 55A(A TYPE)
12V 55A(B TYPE)
12V 55A
12V 55A
12V 55A
12V 55A(A TYPE)
12V 55A,12V 55A(B TYPE)
12V 50A(A TYPE)
12V 50A,12V 50A(B TYPE)
12V 45A
27039COVER, ALTERNATOR REAR END
12V 45A,50A,55A
12V 50A; 12V 55A
27113PLATE, BEARING RETAINER, ALTERNATOR
12V 45A
27212RING, SPACE(FOR ALTERNATOR ROTOR)
12V 45A
12V 50A
27310FRAME ASSY, DRIVE END, ALTERNATOR
12V 45A
main27310-34050i18RG..RA40..LHD; 2T..TA40..RHD..5F;2T..TA40..5F..EUG;18RG..RA40..RHD..EUG;2TB..TA40..LB..RHD..4F;2TB..TA40..CP..LHD..5F..GEN;18R..RA40..LB..LHD..3FC..EUG;18R..RA40..CP..RHD..3FC..EUG;18R..RA40..LB..LHD..5F..XT..GEN; 2TG..TA40198001-198107
12V 50A; 12V 55A
12V 55A
27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
12V 45A,55A; 12V 50A
12V 45A
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
12V 45A
12V 50A
12V 50A,55A; 12V 55A
27310CFELT(FOR ALTERNATOR DRIVE END FRAME)
12V 45A
27315COVER, ALTERNATOR FELT, INNER NO.1
12V 45A
27330ROTOR ASSY, ALTERNATOR
12V 45A
12V 45A
12V 50A,55A; 12V 55A
12V 55A
27330ABEARING(FOR ALTERNATOR ROTOR)
12V 45A
12V 50A; 12V 55A
12V 55A
27330BRING, SNAP(FOR ALTERNATOR ROTOR)
12V 45A
27350FRAME ASSY, RECTIFIER END
12V 50A
12V 45A
12V 55A
12V 50A
27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
12V 45A,50A,55A
27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
12V 55A
12V 55A
12V 50A
12V 45A
12V 50A
12V 50A
27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
12V 55A
12V 50A
12V 45A
12V 55A
12V 50A
27357HOLDER, ALTERNATOR, W/RECTIFIER
12V 45A
27359FRAME, ALTERNATOR RECTIFIER END
12V 55A
12V 55A
12V 45A
12V 55A
12V 55A
27370HOLDER ASSY, ALTERNATOR BRUSH
12V 55A
27371BRUSH, ALTERNATOR
12V 50A
12V 50A
27372SPRING, ALTERNATOR BRUSH
12V 45A,50A,55A
12V 55A
27410STATOR ASSY, ALTERNATOR
12V 45A
12V 55A
12V 50A
12V 50A
12V 55A
27411PULLEY, ALTERNATOR
12V 45A
12V 50A
12V 45A; 12V 50A
12V 45A,50A,55A
27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)
12V 45A,55A; 12V 50A
27441FAN, ALTERNATOR
main27441-34030i18R,18RC..RA40..ARL,GEN; 18R..RA40..LHD..EUG; 2T,2TB..TA40..GEN; 2T..TA40..RHD..5F;2T..TA40..5F..EUG;18RG..RA40..RHD..EUG;2TB..TA40..LB..RHD..4F;2TB..TA40..CP..LHD..5F..GEN;18R..RA40..LB..LHD..3FC..EUG;18R..RA40..CP..RHD..3FC..EUG;18R..RA40..LB..LHD..5F..XT..GEN197908-198107
12V 50A; 12V 55A
12V 55A
2737826020INSULATOR, ALTERNATOR, NO.1
main27378-26020
2738731011INSULATOR, TERMINAL
main27387-31011
9009900862
main90099-00862
9009902310
main90099-02310
9009904300
main90099-04300
9009905060
main90099-05060
9009905118
main90099-05118
9009905119
main90099-05119
9010110049
main90101-10049
9011908023
main90119-08023
9017906158
main90179-06158
9020110014
main90201-10014
9166140820
main91661-40820
9411041000
main94110-41000
9451101000
main94511-01000
9451101400
main94511-01400
9451201000
main94512-01000
9461211001
main94612-11001
43 parts on this diagram · 4 diagrams in section
ALTERNATOR for Toyota CELICA
This section contains 61 genuine Toyota parts for the ALTERNATOR system of the Toyota CELICA. Key components include: ALTERNATOR ASSY, COVER, ALTERNATOR, COVER, ALTERNATOR REAR END, PLATE, REGULATOR COVER, PLATE, BEARING RETAINER, ALTERNATOR.
