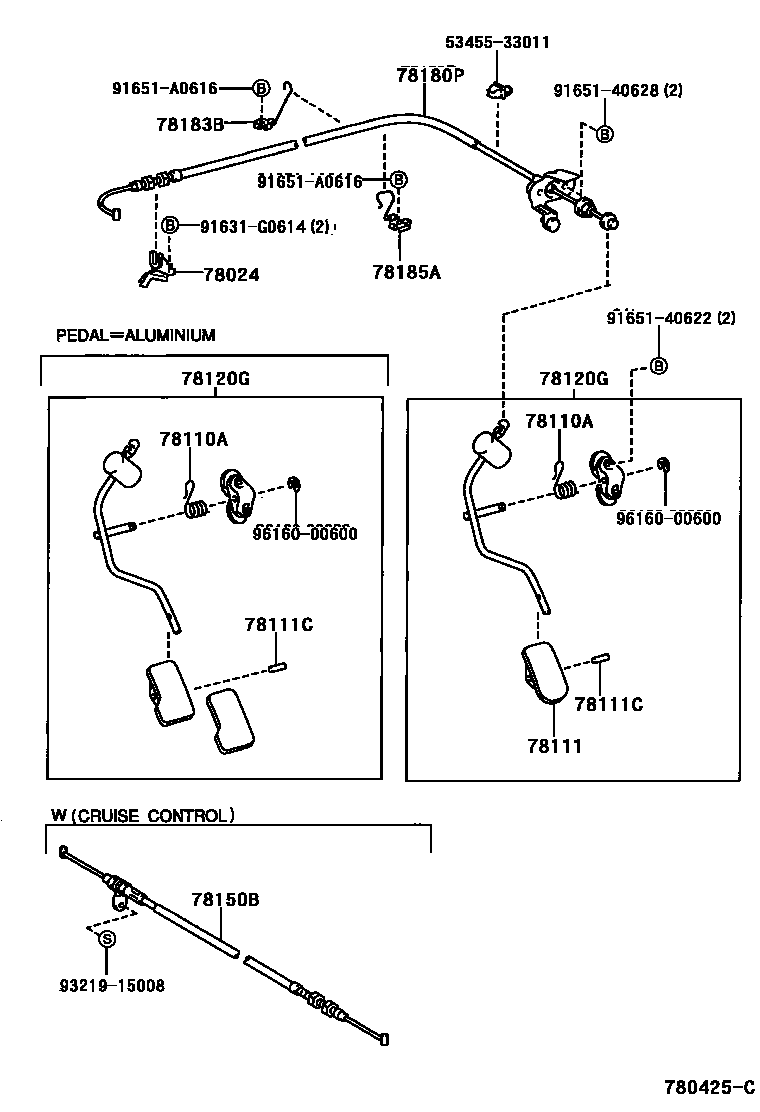

Toyota CELICA — ACCELERATOR LINK

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-88600iZZT231199908-200205

main78024-88602iZZT231200205-200208

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26054iZZT231199908-200208

78111PEDAL, ACCELERATOR

main78111-33020iZZT231199908-200208

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019iZZT231199908-200208

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20760iZZT231199908-200208

main78120-20780iZZT231199908-200208

PEDAL = ALUMINIUM

78150BCABLE ASSY, ACCELERATOR AUTO DRIVE

main78150-20190iZZT231199908-200208

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-2D740iZZT231199908-200208

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-20370iZZT231199908-200208

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78185-20100iZZT231199908-200208

5345533011CLAMP, HOOD SUPPORT ROD

main53455-33011

91631G0614

main91631-G0614

9165140622

main91651-40622

9165140628

main91651-40628

91651A0616

main91651-A0616

9321915008

main93219-15008

9616000600

main96160-00600

16 parts on this diagram · 1 diagram in section
