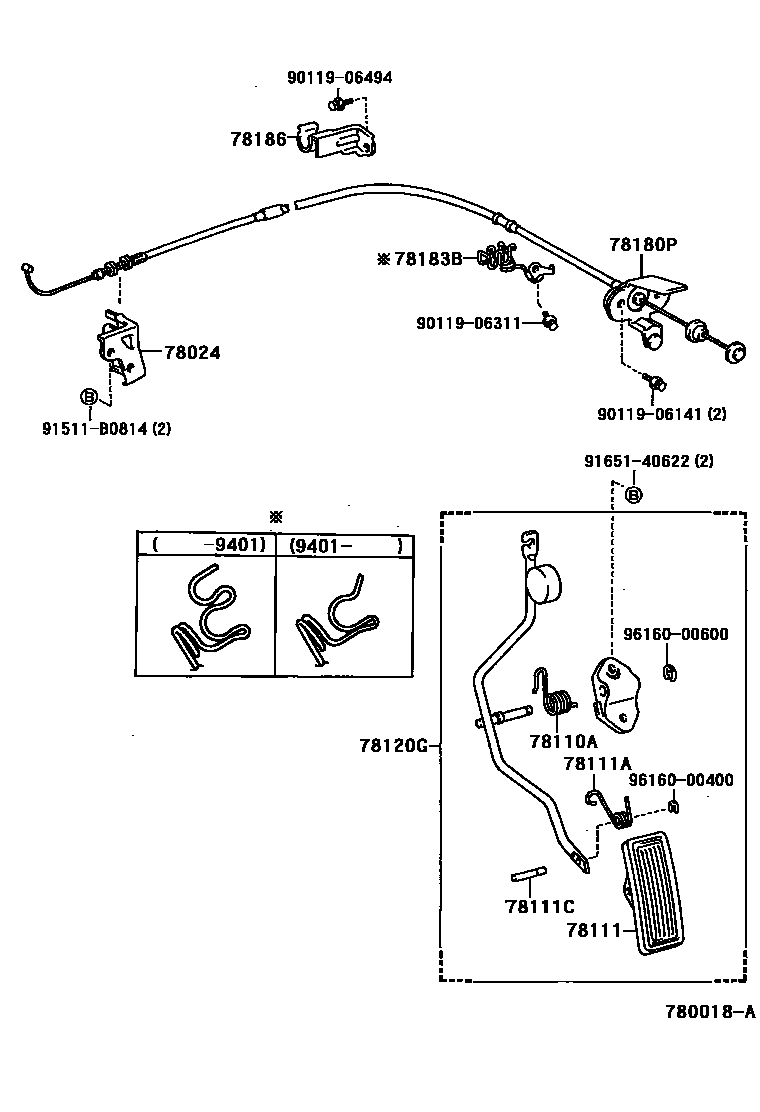

Toyota CELICA — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-20090iST202,204199311

main78024-88480iST205199402

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18048iST204..ATM199311

main90508-26054iST20#..RHD..MTM199311

main90959-03038iST202..ATM199311

main90959-03039iST202..LHD..MTM199311

78111PEDAL, ACCELERATOR

main78111-20030iST20#199311-199508

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050iST20#199311-199508

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iST20#199311-199508

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20590iST20#..RHD..MTM199311-199508

main78120-20600iST204..ATM199311-199508

main78120-20610iST202..LHD..MTM199311-199508

main78120-20620iST202..ATM199311-199508

main78120-20630iST20#..RHD..MTM199508

main78120-20640iST204..ATM199508

main78120-20650iST202..LHD..MTM199508

main78120-20660iST202..ATM199508

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-2D280iST202,204..RHD199311-199508

main78180-2D280iST204199401-199508

W(CRUISE CONTOROL)

main78180-2D300iST205199402-199508

main78180-2D340iST202..LHD199311-199508

main78180-2D390iST205199508

main78180-2D400iST202,204..RHD199508

main78180-2D450iST202..LHD199508

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-20310iST20#..RHD199311-199401

main78183-20330iST20#..RHD199401

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-20141iST202,204..MTM199311

9011906141

main90119-06141

9011906311

main90119-06311

9011906494

main90119-06494

91511B0814

main91511-B0814

9165140622

main91651-40622

9616000400

main96160-00400

9616000600

main96160-00600

16 parts on this diagram · 7 diagrams in section
