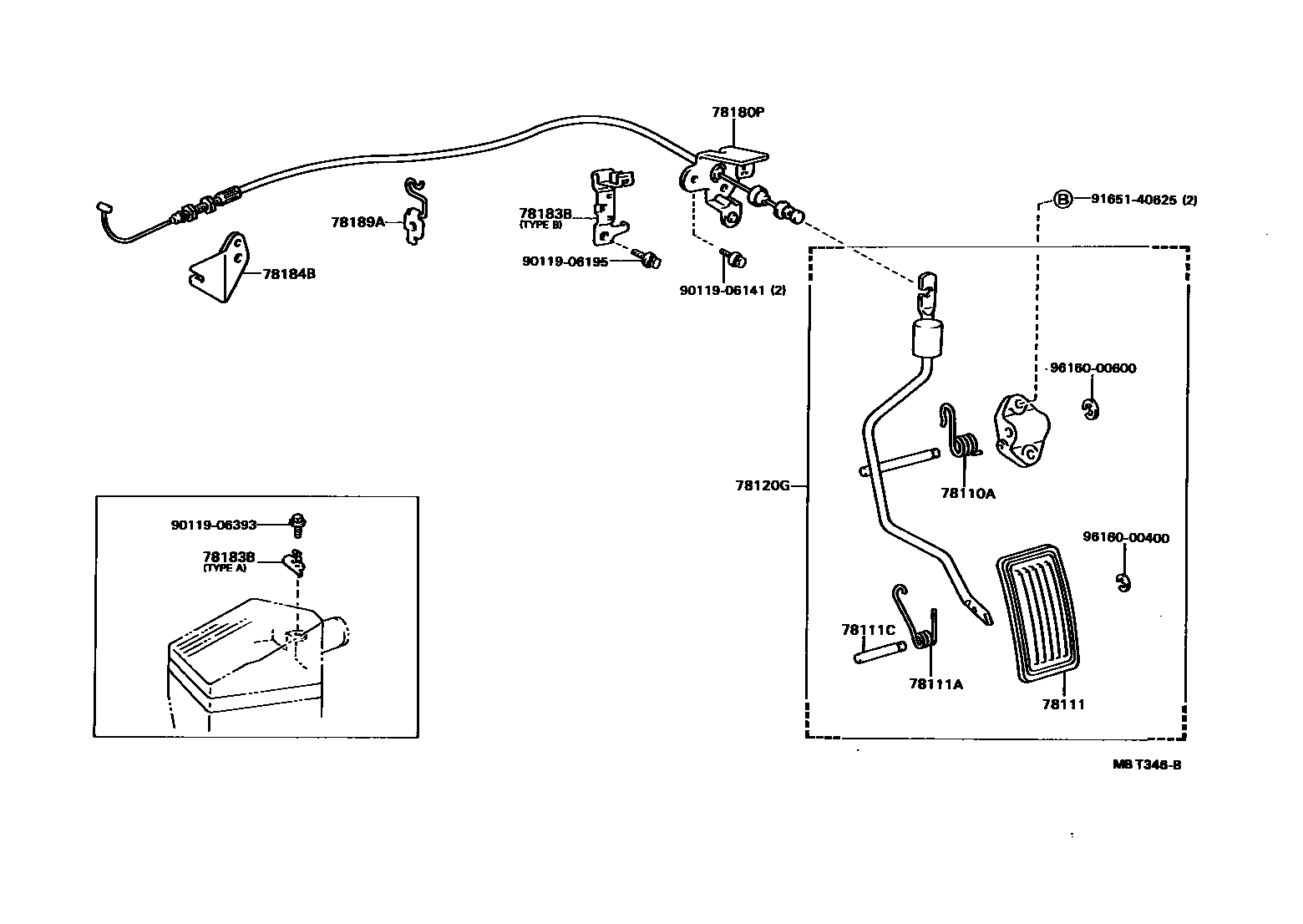

Toyota CELICA — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18050iST184..ATM198910-199311

main90508-26054iST182;AT180,ST184,185..RHD..MTM198910-199311

main90508-26062iAT180..LHD198911-199311

78111PEDAL, ACCELERATOR

main78111-20030iAT180,ST18#198910-199311

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18048iST184..ATM198910-199311

main90508-18050iAT180,ST18#..MTM198910-199311

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAT180,ST18#198910-199311

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20420iAT180..LHD198911-199311

main78120-20440iAT180,ST184..RHD..MTM198910-199311

main78120-20450iST184..ATM198910-199311

main78120-20460iST185198910-199311

main78120-20480iST182198911-199311

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-2B290iST184198910-199108

main78180-2B450iAT180..RHD198911-199311

main78180-2B470iAT180..LHD198911-199311

main78180-2B550iST182198911-199311

main78180-2B590iST185198910-199311

main78180-2B640iST184199108-199311

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-20040iAT180198912-199311

TYPE A

main78183-20130iST184,185198912-199311

TYPE B

main78183-20140iAT180..LHD198911-199311

TYPE B

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12260iAT180198911-199311

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78186-12260iAT180198911-199311

main78189-20110iST185198910-199311

main78189-20120iST184..ATM198910-199112

sub78189-20140

9011906141

main90119-06141

9011906195

main90119-06195

9011906393

main90119-06393

9165140625

main91651-40625

9616000400

main96160-00400

9616000600

main96160-00600

15 parts on this diagram · 5 diagrams in section
