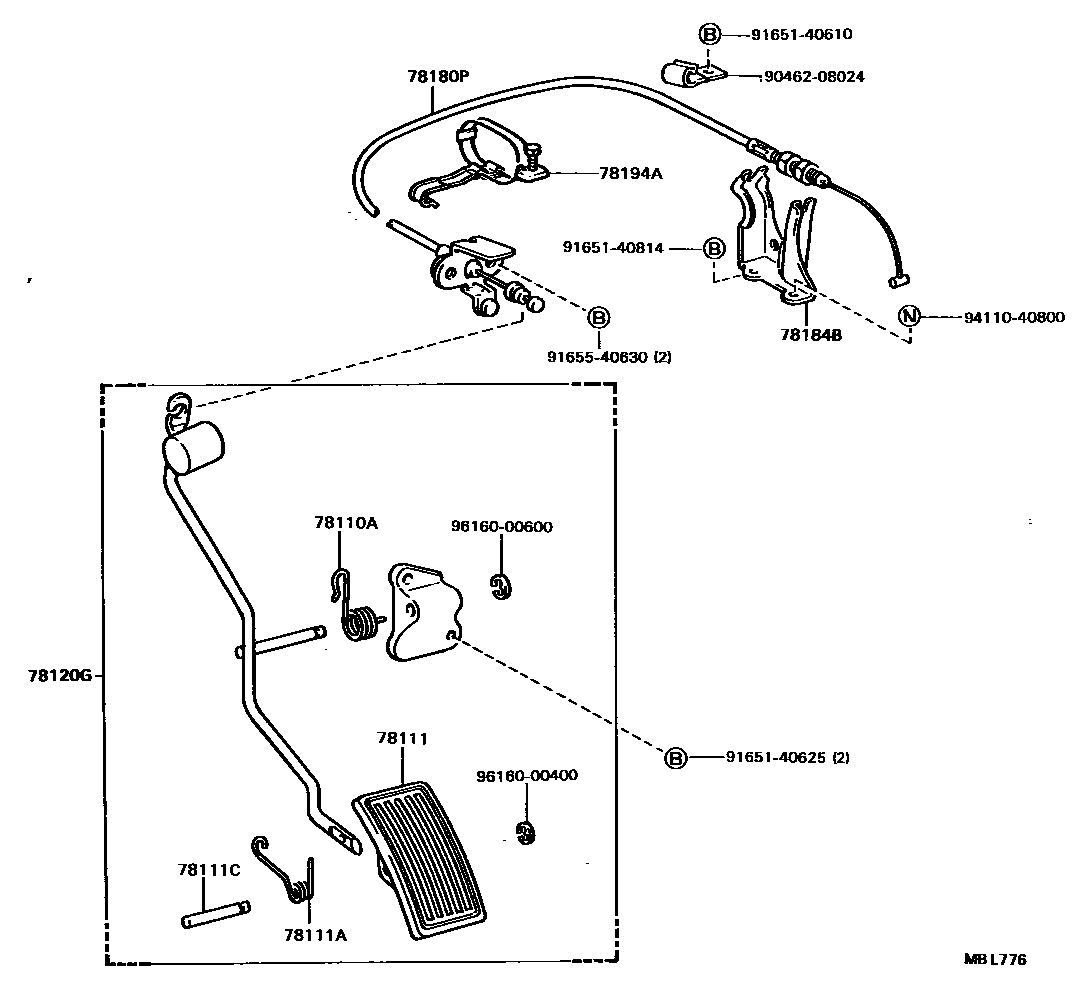

Toyota CELICA — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18050iST162..4FC..ARL198708-198908

W(CRUISE CONTROL)

main90508-18054iST162..4FC..ME198708-198908

main90508-26054iAT160,ST162..RHD..5F198708-198908

main90508-26062iAT160,ST162..LHD..5F198708-198908

78111PEDAL, ACCELERATOR

main78111-20030iAT160,ST162198708-198908

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18048iST162..4FC..ARL198708-198908

W(CRUISE CONTROL)

main90508-18050iST162..4FC..ME;AT160,ST162..5F198708-198908

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAT160,ST162198708-198908

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20260iST162..5F..ARL198708-198908

main78120-20270iST162..4FC..ARL198708-198908

W(CRUISE CONTROL)

main78120-20280iAT160,ST162..LHD..5F198708-198908

main78120-20290iST162..4FC..ME198708-198908

main78120-20300iAT160..RHD198708-198908

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-20240iAT160..CBR198708-198908

main78180-20430iST162..SX198708-198908

main78180-20440iST162..SX198708-198908

W(CRUISE CONTROL)

main78180-20470iST162..4FC..ME198708-198908

main78180-20560iAT160..RHD198708-198908

main78180-20580iAT160..LHD..TWC198708-198908

main78180-20640iST162..5F..ME198708-198908

main78180-20671iST162..ST198708-198908

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12160iAT160..CBR198708-198908

main78184-12220iAT160..TWC198708-198908

78194ASUPPORT, ACCELERATOR CONTROL CABLE, NO.4

main78194-20040iAT160..CBR198708-198908

main78194-20060iST162..ME198708-198908

9046208024

main90462-08024

9165140610

main91651-40610

9165140625

main91651-40625

9165140814

main91651-40814

9165540630

main91655-40630

9411040800

main94110-40800

9616000400

main96160-00400

9616000600

main96160-00600

16 parts on this diagram · 6 diagrams in section
