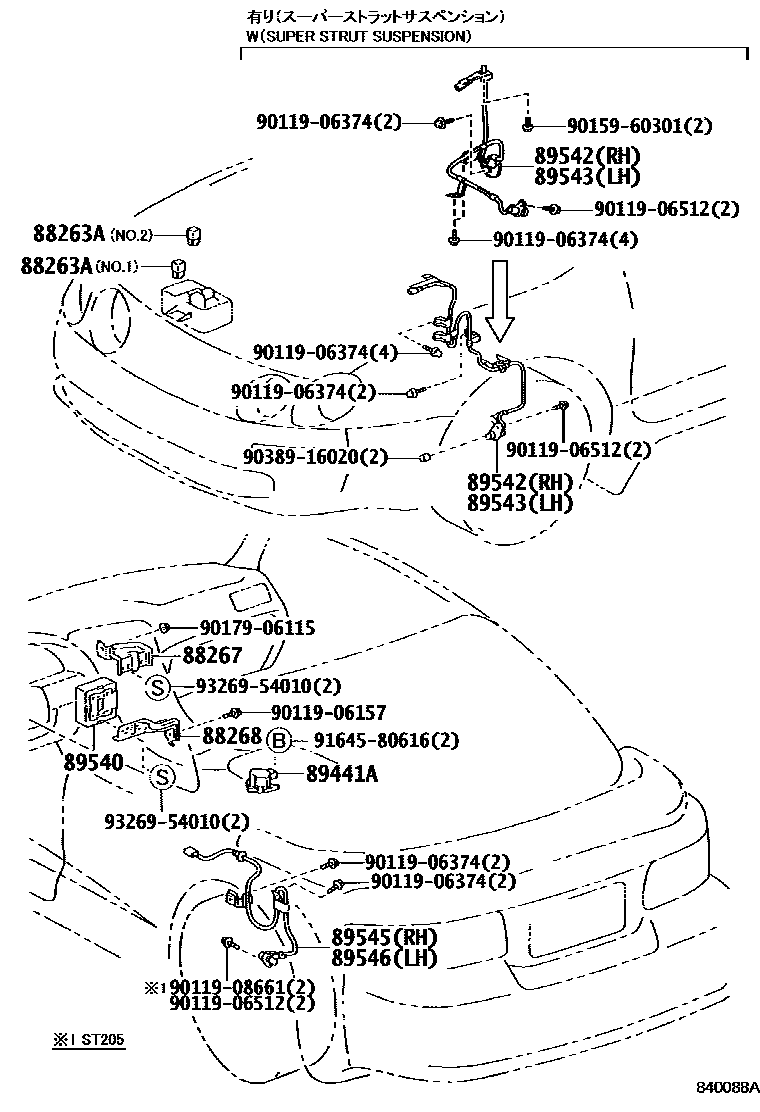

Toyota CELICA — ABS & VSC
88263ARELAY, SKID CONTROL
NO.1
NO.1
NO.2
88267BRACKET, SKID CONTROL COMPUTER, NO.1
88268BRACKET, SKID CONTROL COMPUTER, NO.2
89540COMPUTER ASSY, SKID CONTROL
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
9011906157
main90119-06157
9011906374
main90119-06374
9011906512
main90119-06512
9011908661
main90119-08661
9015960301
main90159-60301
9017906115
main90179-06115
9038916020
main90389-16020
9164580616
main91645-80616
9326954010
main93269-54010
18 parts on this diagram · 2 diagrams in section
ABS & VSC for Toyota CELICA
This section contains 23 genuine Toyota parts for the ABS & VSC system of the Toyota CELICA. Key components include: RELAY, SKID CONTROL, BRACKET, SKID CONTROL COMPUTER, NO.1, BRACKET, SKID CONTROL COMPUTER, NO.2, SENSOR, DECELERATION, COMPUTER ASSY, SKID CONTROL.
