Toyota CELICA — ABS & VSC

85999MBRACKET, RELAY

main85999-20350iST184,185198910-199311

88263ARELAY, SKID CONTROL

main88263-12070iST184,185198910-199311

sub88263-12080

88265LABEL, SKID CONTROL CAUTION

main88265-20050iST185198910-199311

89411SENSOR, SPEED

main89542-20020iST185198910-199311

main89543-20020iST184,185198910-199311

main89545-20050iST184199108-199311

main89545-20050iST184199109-199208

REAR-RH

main89545-20060iST185199108-199311

main89545-20060iST185198910-199108

REAR-RH

main89546-20050iST184199108-199311

main89546-20060iST185198910-199108

REAR-LH

main89546-20060iST185199108-199311

89439BBRACKET, SENSOR

main89439-20010iST185198910-199311

89441ASENSOR, DECELERATION

main89441-20030iST185198910-199311

89540COMPUTER ASSY, SKID CONTROL

main89541-20060iST185198910-199108

main89541-20100iST184199108-199311

main89541-20110iST185199108-199311

89549BRACKET, SKID CONTROL COMPUTER

main89549-20040iST185198910-199108

main89549-20070iST184,185199108-199311

9011906500

main90119-06500

9011906512

main90119-06512

9011908661

main90119-08661

9015950193

main90159-50193

9017906036

main90179-06036

90656B0616

main90656-B0616

91656B0616

main91656-B0616

9326954010

main93269-54010

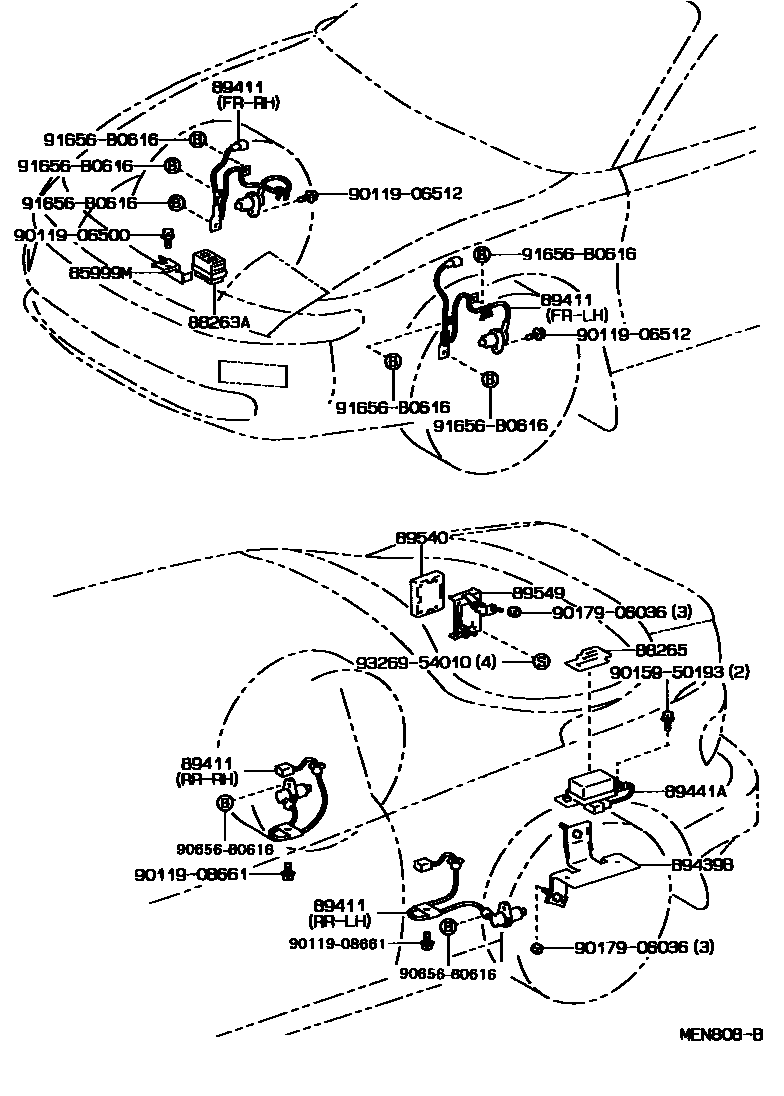

16 parts on this diagram · 1 diagram in section
