Toyota CELICA — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20230iST162..RHD198508-198708

main85110-20240iAT160,ST162..LHD198508-198708

85160LINK ASSY, WINDSHIELD WIPER

main85160-20170iAT160,ST162..LHD198508-198608

sub85160-20340

main85160-20171iAT160,ST162..LHD198608-198708

main85160-20260iST162..RHD198508-198708

sub85160-20310

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08033×2iAT160,ST162198508-198708

85190ARM ASSY, WINDSHIELD WIPER

main85190-20320iST162..RHD198508-198708

RH

main85190-20420iAT160,ST162..LHD198508-198708

LH

main85210-20130iST162..RHD198508-198605

LH

main85210-20131iST162..RHD198605-198708

LH

main85210-20140iAT160,ST162..LHD198508-198708

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16320iST162..RHD198508-198708

LH

sub85220-16321

main85220-16340iAT160,ST162..LHD198508-198708

RH

sub85220-16640

main85220-32450iST162..RHD198508-198708

RH

sub85212-23040

main85220-32460iAT160,ST162..LHD198508-198708

LH

85221BLADE, WINDSHIELD WIPER

main85221-30100iAT160,ST162..LHD198508-198708

RH

sub85221-40040

main85221-30120iST162..RHD198508-198708

LH

sub85221-40040

main85221-32060iAT160,ST162..LHD198508-198708

RH

sub85221-30130

85225WING, WIPER BLADE

main85225-20230iST162..RHD198508-198708

main85225-20420iAT160,ST162..LHD198508-198708

9009900925

main90099-00925

9009900955

main90099-00955

9011906187

main90119-06187

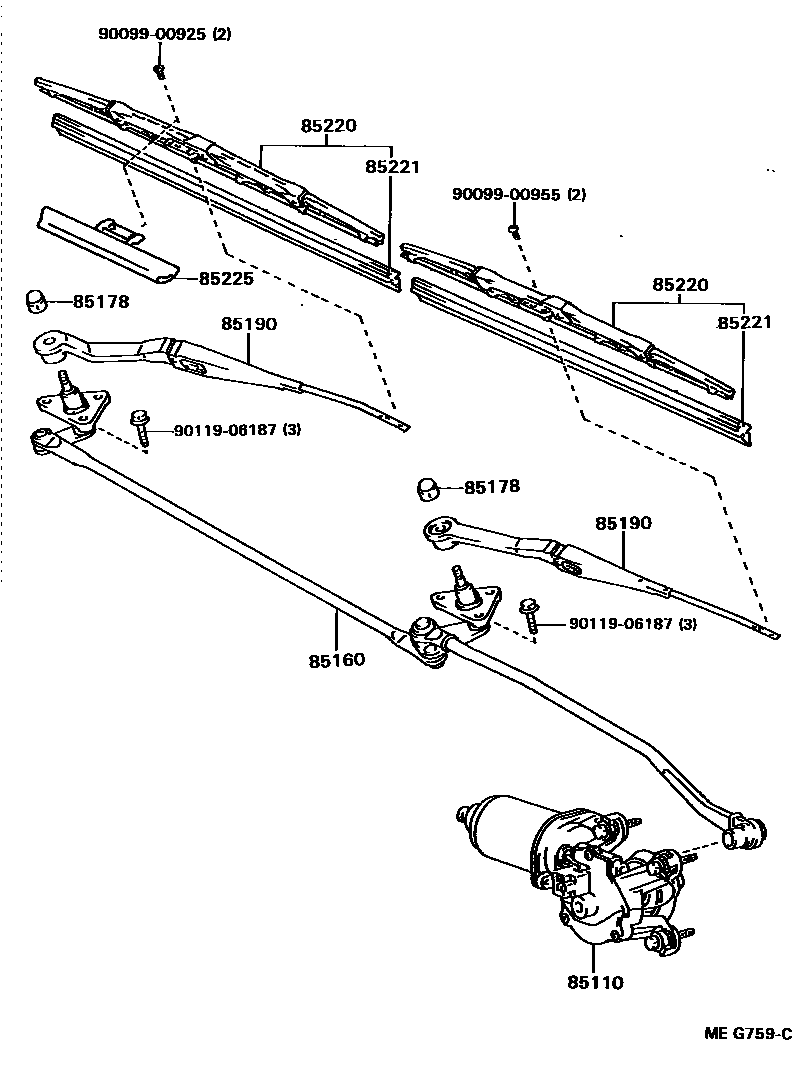

10 parts on this diagram · 1 diagram in section
