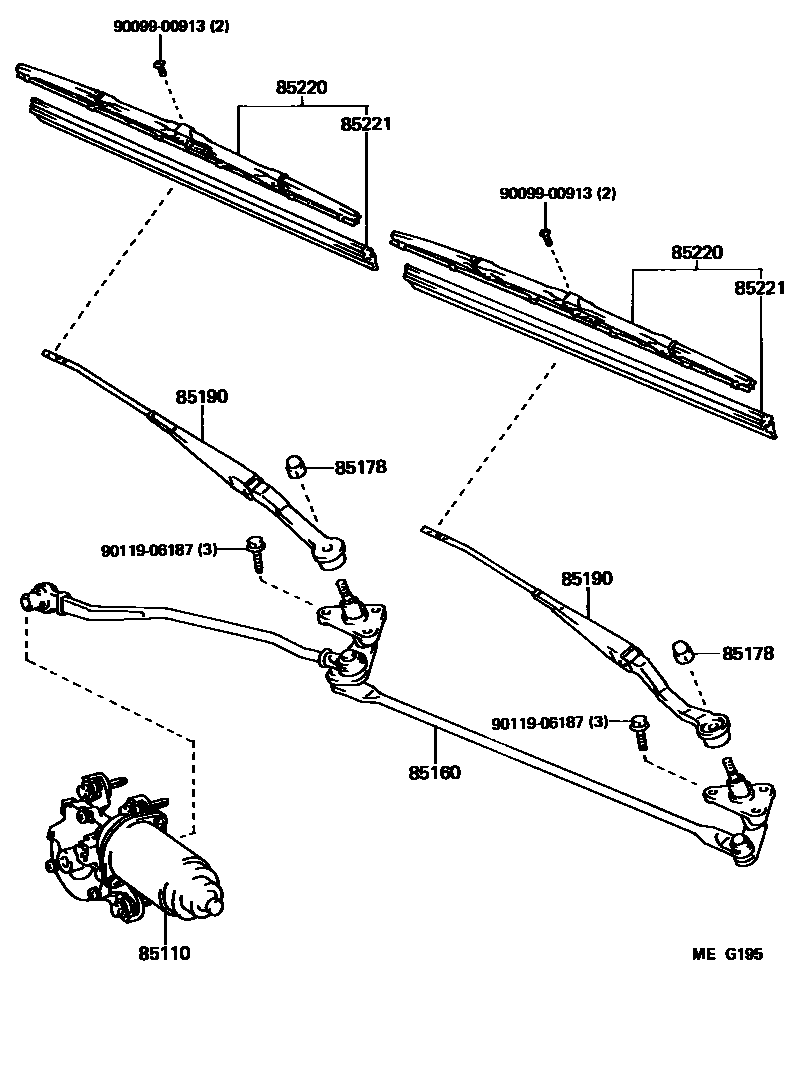

Toyota CELICA — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20260i198508-198608

main85110-20261i198608-198708

85160LINK ASSY, WINDSHIELD WIPER

main85160-20170i198508-198608

main85160-20171i198608-198708

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08033×2i198508-198708

85190ARM ASSY, WINDSHIELD WIPER

main85190-20430i198508-198708

main85210-20140i198508-198708

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16340i198508-198708

main85220-32280i198508-198708

85221BLADE, WINDSHIELD WIPER

main85221-30100i198508-198708

main85221-32060i198508-198708

9009900913

main90099-00913

9011906187

main90119-06187

8 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota CELICA

This section contains 8 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota CELICA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM ASSY, WINDSHIELD WIPER, BLADE ASSY, WINDSHIELD WIPER.
