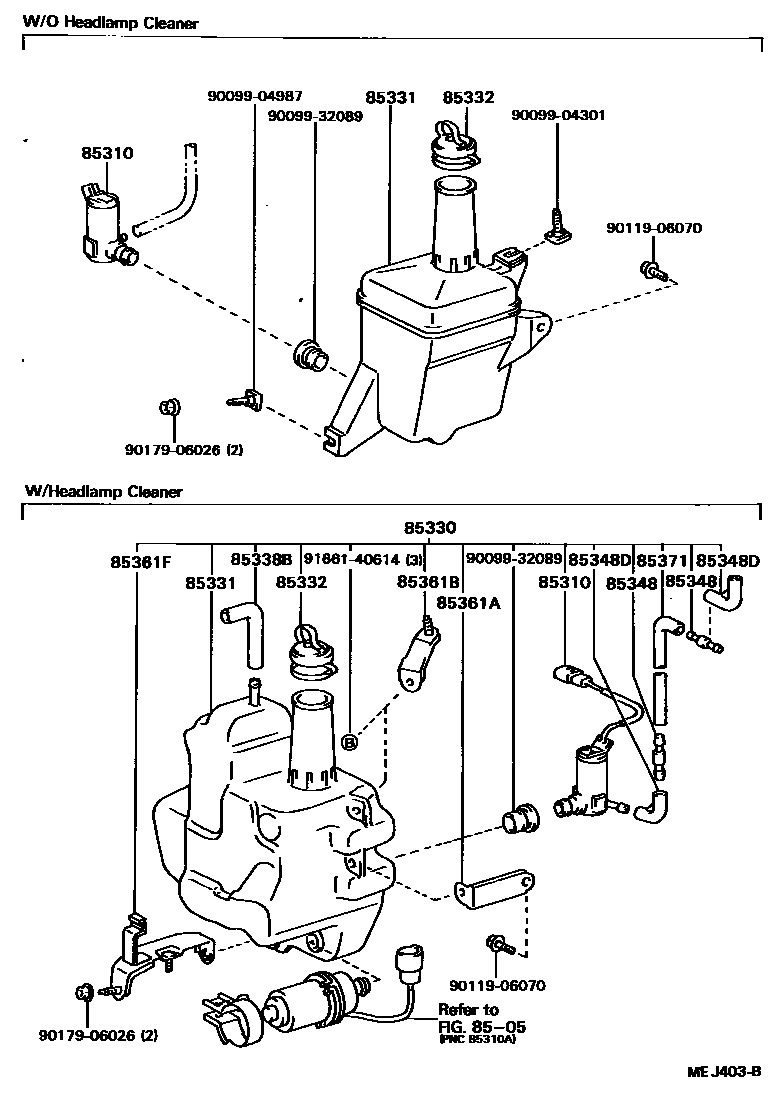

Toyota CELICA — WINDSHIELD WASHER

0001 1 0002 1

8505

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-16050iAT160,ST16#198708-198908

sub85330-60140

85330JAR ASSY, WINDSHIELD WASHER

main85330-20290iST165;AT160,ST162..CP198708-198802

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85331-20290iAT160,ST162..LB198708-198908

W(HEADLAMP CLEANER)

main85331-20560iAT160,ST16#198708-198908

85332CAP, WINDSHIELD WASHER JAR

main85332-32130iAT160,ST16#198708-198908

85338BBREATHER, FRONT WASHER

main85338-12240iAT160,ST162..LB198708-198908

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iST165198708-198908

W(REAR WINDOW WIPER),3-WAY

main85348-14390iAT160,ST162198708-198908

3-WAY

main85349-89122×4iAT160,ST16#198708-198908

2-WAY

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481×2iST165198710-198908

main85355-20070×2iST165198710-198908

W(HEADLAMP CLEANER)

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85361-20290iST165;AT160..CP;ST162..(CP,CVT)..FRG198808-198908

85361BBRACKET, WINDSHIELD WASHER, NO.2

main85361-20300iST165;AT160..CP;ST162..(CP,CVT)..FRG198808-198908

85361FBRACKET, WINDSHIELD WASHER, NO.3

main85363-20290iST165;AT160..CP;ST162..(CP,CVT)..FRG198808-198908

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33423iAT160,ST162..LB198708-198908

L=1800(*H,L=960),W/HEAD LAMP CLEANER

main90446-07001iAT160,ST16#198708-198908

L=1800

9009904301

main90099-04301

9009904987

main90099-04987

9009932089

main90099-32089

9011906070

main90119-06070

9017906026

main90179-06026

9166140614

main91661-40614

18 parts on this diagram · 2 diagrams in section
