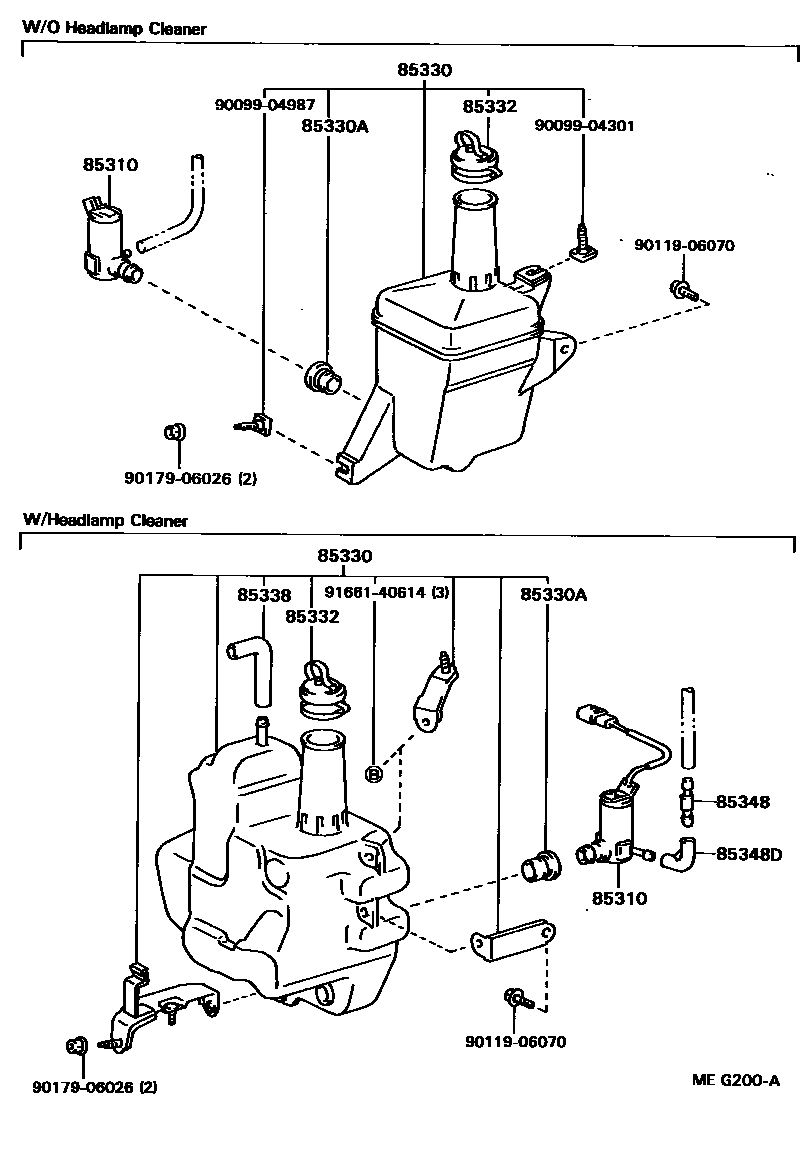

Toyota CELICA — WINDSHIELD WASHER

0001 1 0002 1

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-12150iAT160,ST162198508-198708

sub85310-89114

85330JAR ASSY, WINDSHIELD WASHER

main85331-20270iAT160,ST162..CP,LB198508-198708

W/HEADLAMP CLEANER

main85331-20360iAT160,ST162198508-198708

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAT160,ST162198508-198708

85332CAP, WINDSHIELD WASHER JAR

main85332-20441iAT160,ST162198508-198708

85338HOSE, BREATHER

main85338-12240iAT160,ST162..CP,LB198508-198708

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iAT160,ST162198508-198708

3 WAY

main85349-89122×4iAT160,ST162198508-198708

2 WAY

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20070×4iAT160,ST162198508-198708

sub85355-14481

9009904301

main90099-04301

9009904987

main90099-04987

9011906070

main90119-06070

9017906026

main90179-06026

9166140614

main91661-40614

12 parts on this diagram · 2 diagrams in section
