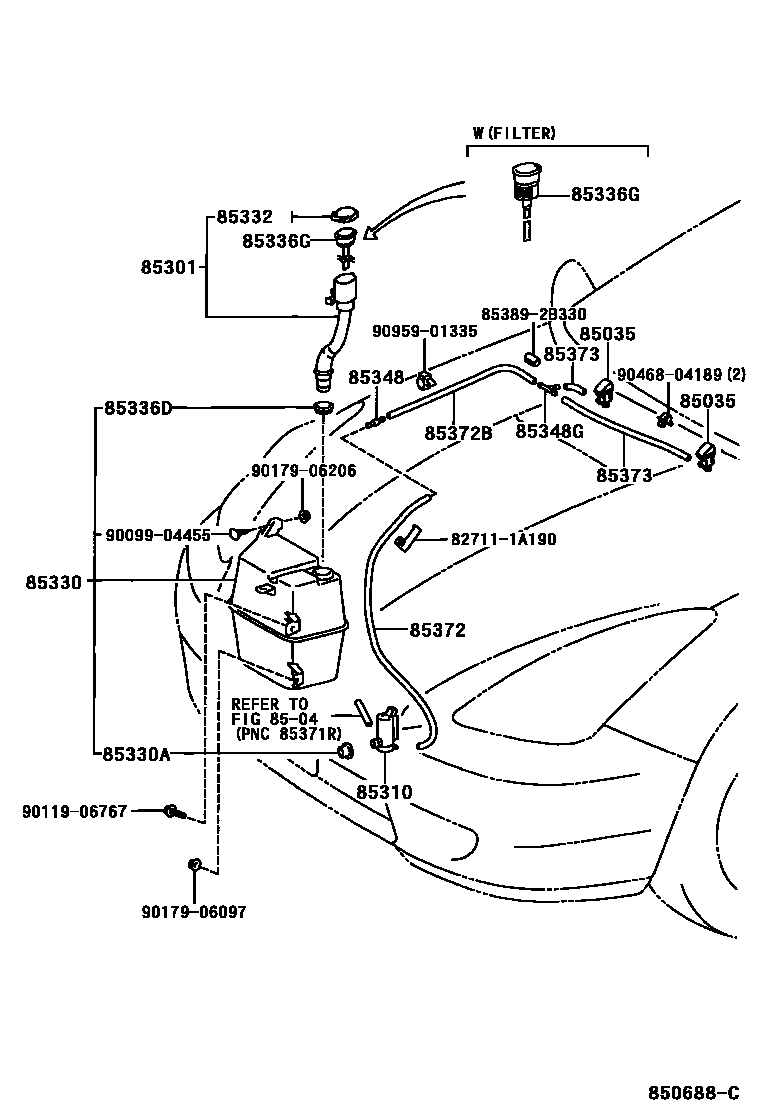

Toyota CELICA — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-20190×2iZZT23#199908-200208

2 JET

main85381-20200×2iZZT23#200208-200507

3 JET

8504

85301INLET SUB-ASSY, WASHER

main85301-20030iZZT23#199908-200208

main85301-20040iZZT23#200208-200507

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-20460iZZT231199908-200208

W(REAR WIPER)

sub85330-20461

main85330-20470iZZT231200208-200507

CANADA SPEC & W(REAR WIPER)

main85330-35080iZZT230200208-200507

85330JAR ASSY, WINDSHIELD WASHER

main85315-20590iZZT230199908-200208

2.5L TANK

main85315-20600iZZT23#199908-200208

4.5L TANK

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iZZT23#199908-200208

85332CAP, WINDSHIELD WASHER JAR

main85316-42011iZZT23#199908-200208

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iZZT23#199908-200208

85336GGAGE, WATER LEVEL

main85312-24010iZZT23#199908-200208

W(FILTER)

main85313-20130iZZT23#199908-200208

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470iZZT23#199908-200208

CANADA SPEC OR COLD SPEC

main85349-89122iZZT23#199908-200208

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-14390iZZT23#200208-200507

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33075iZZT23#199908-200204

L=1100(*H,L=630),CANADA SPEC OR COLD SPEC

main90099-33080iZZT23#200206-200208

L=1450(*H,L=670)

main90099-33788iZZT23#200204-200206

L=1450(*H,L=650)

main90099-62012iZZT23#200204-200208

L=630

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iZZT23#199908-200208

L=1450(*H,L=665)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iZZT23#199908-200208

L=1450(*H,L=60)

827111A190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A190

853892B330PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-2B330

9009904455

main90099-04455

9011906767

main90119-06767

9017906097

main90179-06097

9017906206

main90179-06206

9046804189

main90468-04189

9095901335

main90959-01335

22 parts on this diagram · 1 diagram in section
