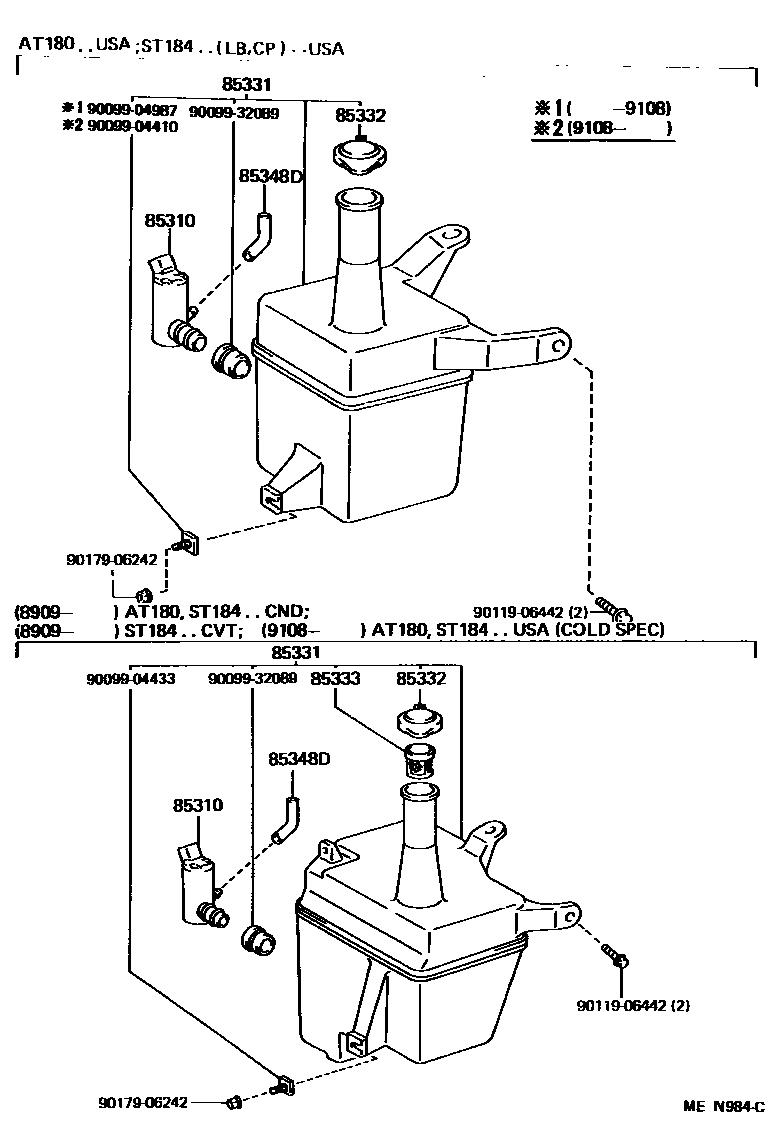

Toyota CELICA — WINDSHIELD WASHER

0001 1 0002 1W(REAR WINDOW WIPER) 0003 1

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20160iST184..LB198909-199309

W(REAR WINDOW WIPER)

main85310-20190iST184..CVT;AT180,ST184..CND198909-199309

sub85330-33020

main85310-20210iAT180,ST184..(CP,LB)..USA198909-199309

sub85330-10280

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85331-20750iAT180,ST184..(CP,LB)..USA198909-199309

main85331-20760iST185199108-199309

W(REAR WINDOW WIPER)

85332CAP, WINDSHIELD WASHER JAR

main85332-20750iAT180,ST18#198909-199309

sub85316-33120

85333FILTER, WINDSHIELD WASHER JAR

main85333-12470iST185;ST184..CVT;AT180,ST184..CND199108-199309

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470iST185198909-199109

2 WAY,NO.1

main85348-12250iST184..CVT198909-199109

3 WAY

main85349-89122iST185;ST184..CVT;AT180,ST184..CND199109-199309

2 WAY,NO.2

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iST184..LB..USA199108-199309

COLD SPEC OR W(REAR WINDOW WIPER)

main85355-32110iST185;ST184..CVT;AT180,ST184..CND199108-199309

COLD SPEC OR W(REAR WINDOW WIPER)

9009904410

main90099-04410

9009904433

main90099-04433

9009904987

main90099-04987

9009932089

main90099-32089

9011906442

main90119-06442

9017906242

main90179-06242

12 parts on this diagram · 3 diagrams in section
