Toyota CELICA — WINDSHIELD WASHER

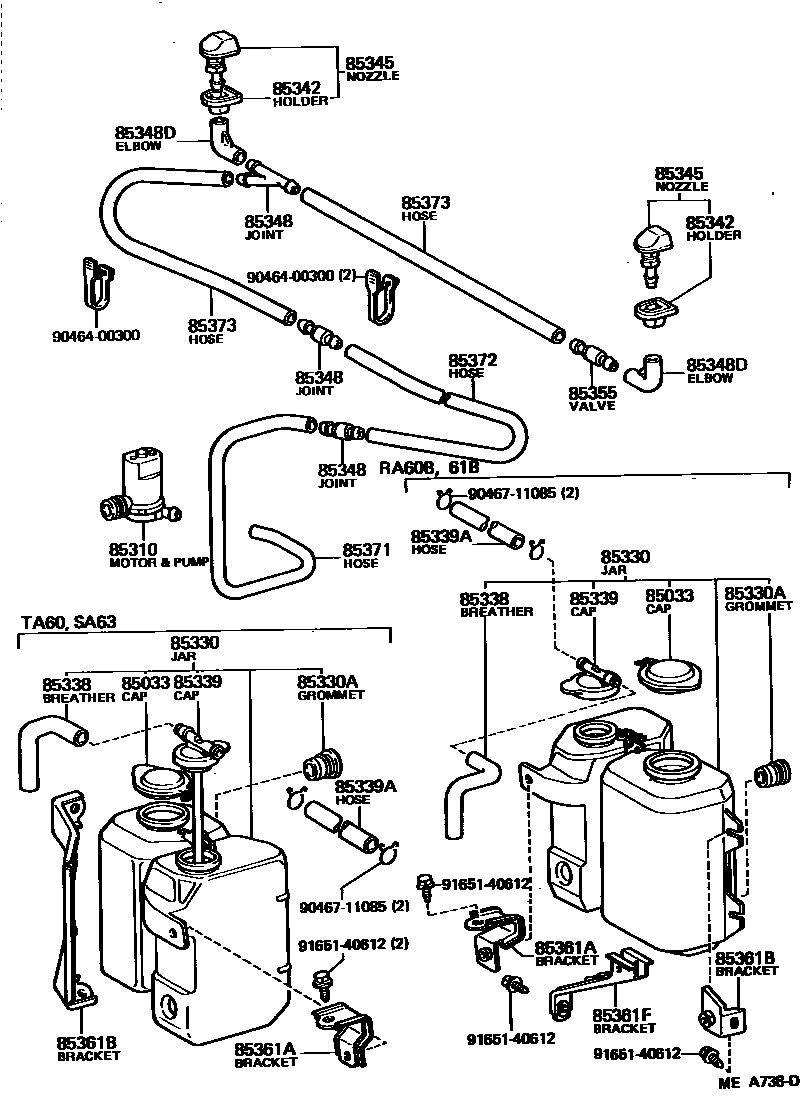

Parts diagram
85033CAP ASSY, WINDSHIELD WASHER
main85332-12320i198408-198512
W/HEADLAMP CLEANER
main85332-16010i198108-198512
main85332-20060i198108-198507
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-10130i198208-198210
W/HEADLAMP CLEANER
main85310-14050i198208-198408
W/HEADLAMP CLEANER
sub85310-14060
main85310-14070i198408-198512
W/HEADLAMP CLEANER
sub85330-12310
main85310-22080i198308-198507
main85310-30080i198210-198512
W/HEADLAMP CLEANER
85330JAR ASSY, WINDSHIELD WASHER
main85330-12100i198308-198512
main85330-14350i198108-198507
main85330-14370i198108-198308
main85330-14390i198108-198507
main85330-14400i198112-198512
main85330-20201i198108-198308
main85330-20221i198108-198507
main85330-20280i198108-198507
main85330-20350i198308-198507
main85330-20360i198308-198507
main85330-22170i198308-198512
main85330-24020i198112-198512
W/HEADLAMP CLEANER
main85331-14450i198112-198512
W/HEADLAMP CLEANER
main85331-14460i198408-198507
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i198108-198512
main90099-32103i198408-198512
W/HEADLAMP CLEANER
85338HOSE, BREATHER
main85338-14040i198108-198507
main85338-14050i198108-198507
85339CAP SUB-ASSY, RESERVE TANK
main85339-14010i198108-198507
85339AHOSE (FOR RADIATOR RESERVE TANK)
main90445-12005i198308-198408
sub90445-12897
main90445-12043i198108-198507
sub90445-12078
85342HOLDER, WASHER NOZZLE
main85342-14010×2i198108-198512
85345NOZZLE, WINDSHIELD WASHER
main85035-14300×2i198408-198512
main85035-19015×2i198408-198512
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85348-40010i198408-198512
3-WAY W/HEADLAMP CLEANER
main85349-12250i198408-198512
3-WAY
main85355-14010i198108-198408
3-WAY
sub85348-12250
main85355-87201×2i198108-198507
2-WAY
sub85349-89122
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85355-14481×2i198408-198512
main85355-20070×2i198108-198408
85355VALVE, WINDSHIELD WASHER HOSE
main85031-12250×2i198408-198512
main85031-14080i198108-198408
85361ABRACKET, WINDSHIELD WASHER, NO.1
main85036-14110i198308-198512
main85036-14130i198108-198507
main85036-14140i198108-198507
main85036-14160i198112-198512
main85036-14170i198112-198512
W/HEADLAMP CLEANER
main85036-14190i198408-198507
main85036-24010i198112-198512
W/HEADLAMP CLEANER
main85361-14320i198108-198308
main85361-14340i198108-198507
main85361-20120i198308-198507
main85361-24020i198501-198512
main85361-30013i198308-198501
85361BBRACKET, WINDSHIELD WASHER, NO.2
main85361-14330i198108-198308
main85361-14350i198108-198507
main85361-14380i198112-198308
main85361-14440i198112-198512
main85361-14450i198112-198512
W/HEADLAMP CLEANER
main85361-20170i198308-198507
main85361-24030i198112-198512
W/HEADLAMP CLEANER
85361FBRACKET, WINDSHIELD WASHER, NO.3
main85361-14400i198108-198507
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33072i198408-198512
L=800,W/HEADLAMP CLEANER
sub90099-33075
main90099-33299i198112-198512
L=1000
main90446-06013i198108-198507
L=1000
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90446-07001i198108-198507
L=1800
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33061i198408-198512
L=1450(*H,L=550)
sub90099-33080
main90099-33299i198108-198408
L=1450(*H,L=550)
main90446-06013i198308-198507
L=1450(*H,L=550)
9046400300
main90464-00300
9046711085
main90467-11085
9165140612
main91651-40612

21 parts on this diagram · 5 diagrams in section
