Toyota CELICA — V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02148i198708-198802

main90916-02216i198810-198909

main99365-00970i198708-198908

main99365-01000i198708-198808

main99365-50820i198802-198803

44310ABELT, V(FOR VANE PUMP)

main90916-02205i198710-198908

main99363-00630i198708-198808

W(POWER STEERING)

main99363-50630i198708-198808

W(POWER STEERING)

main99363-50760i198708-198908

main99365-50920i198708-198908

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02116i198708-198908

MITSUBOSHI; MITUBOSHI

main90916-02197i198801-198908

BANDO

main99332-10870i198708-198908

L=870,W(AIR CONDITIONER=MANUAL),MITUBOSHI

main99332-60870i198708-198908

W(AIR CONDITIONER=MANUAL),BANDO

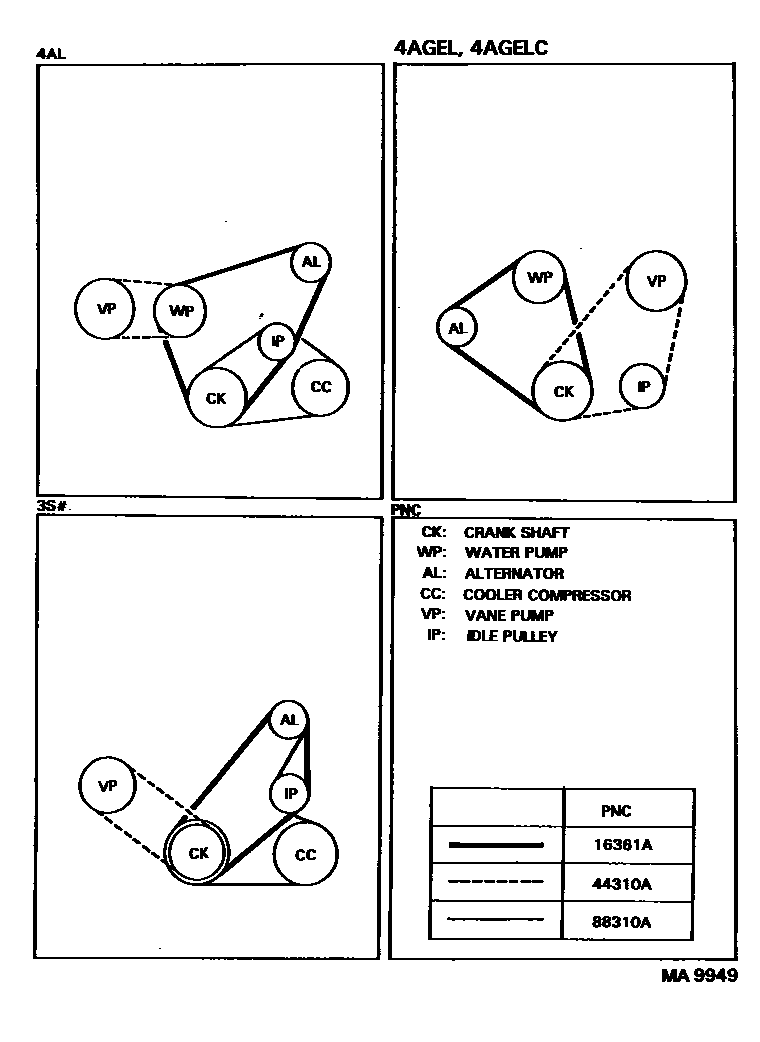

3 parts on this diagram · 1 diagram in section

V-BELT for Toyota CELICA

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota CELICA. Key components include: BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR VANE PUMP), BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
