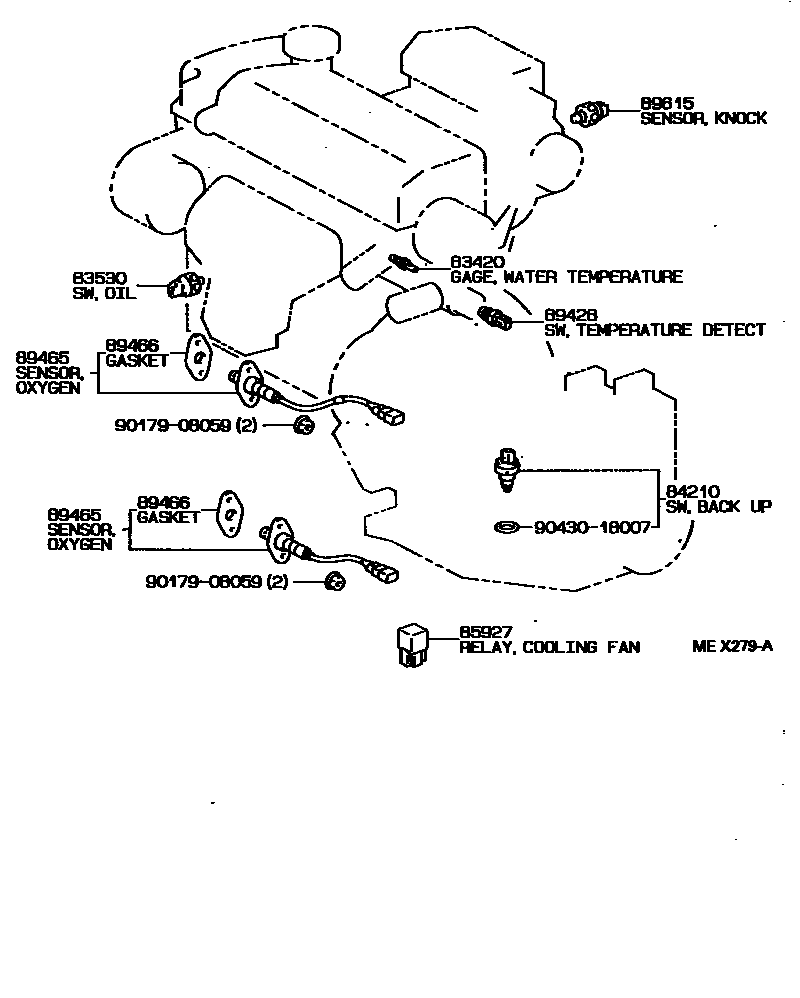

Toyota CELICA — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1INSTRUMENT PANEL 0005 1COWL 0006 1COMBINATION SWITCH 0007 1ROOF,DOOR SEAT,FLOOR & LUG

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iST20#199311

main83420-20040iAT200199311

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iAT200,ST202199802

NIPPONDENSO

main83530-30090iAT200,ST20#199311-199802

main83530-60020iAT200,ST202199802

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAT200,ST20#199311

sub84210-52050

85927RELAY, COOLING FAN

main90987-03003iAT200,ST20#199311

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iAT200199311

main89428-33010iST20#199311

89465SENSOR, OXYGEN

main89465-20490iST202199606

main89465-20520iAT200199606

main89465-29715iST202..CVT199508-199512

main89465-29735iST205199402-199606

main89465-29765iAT200199311-199606

main89465-80009iST202..LB199508-199512

89466GASKET, OXYGEN SENSOR

main89466-20020iAT200,ST202199311-199606

main89466-20030iST205199402-199606

89615SENSOR, KNOCK CONTROL

main89615-12030iAT200199311-199809

TOYOTA

main89615-20060iST20#199311

main89615-22030iAT200199311

MATSUSHITA

main89615-22040iAT200199311

NIPPON DENSO

main89615-22050iAT200199809

TOYOTA

sub89615-52010

9017908059

main90179-08059

9043018007

main90430-18007

10 parts on this diagram · 7 diagrams in section
