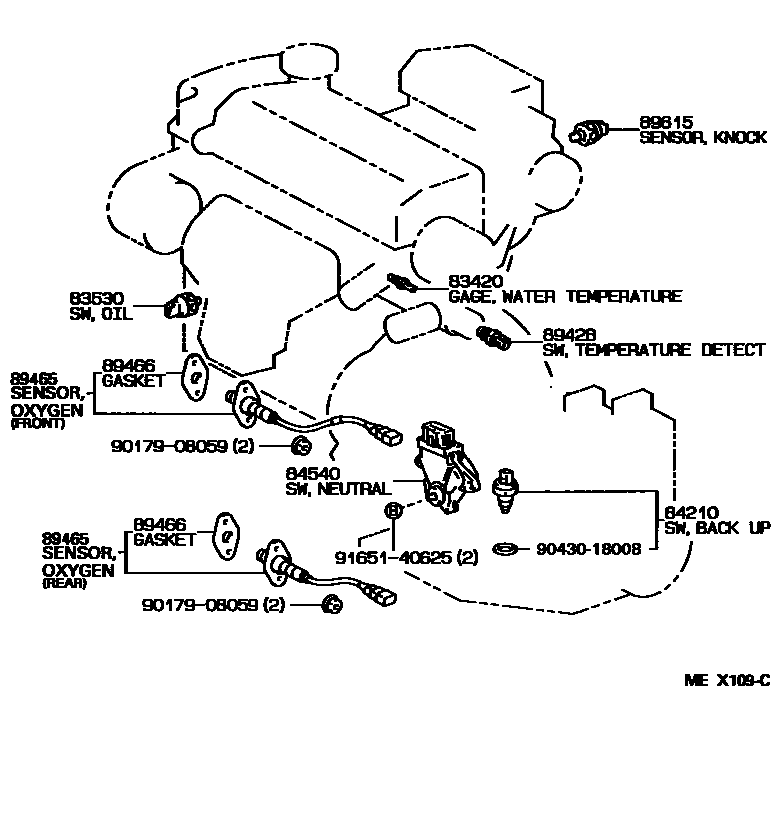

Toyota CELICA — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0006 1INSTRUMENT PANEL & DOOR SWITC0007 1COWL 0008 1COMBINATION SWITCH 0009 1ROOF,DOOR SEAT,FLOOR & LUGGAG

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iST204199309-199508

main83420-20040iAT200199309-199508

main83420-AA010iST204199610

(L)

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iST204199802

NIPPONDENSO

main83530-30090iAT200,ST204199309-199802

main83530-60020iST204199802

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAT200,ST204..MTM199309

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12200iAT200..ATM199309-199712

TOKAIRIKA

main84540-12210iAT200..ATM199309-199712

MATSUSHITA

main84540-20220iST204..ATM199309

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iAT200199309-199505

main89428-33010iST204199309-199712

89465SENSOR, OXYGEN

main89465-20420iST204..GT..USA199904-199905

CALIFORNIA SPEC,REAR

main89465-20460iST204..CVT199508-199510

REAR

main89465-20500iAT200199508-199712

FRONT

main89465-20510iAT200199508-199712

REAR

main89465-29745iAT200199309-199508

REAR

main89465-29755iAT200199309-199508

FRONT

main89465-29775iST204199408-199508

FRONT

main89465-29785iST204..USA199309-199508

CALIFORNIA SPEC,FRONT

main89465-80008iST204199510-199904

FRONT

89466GASKET, OXYGEN SENSOR

main89466-20020×2iAT200199309-199508

89615SENSOR, KNOCK CONTROL

main89615-12030iAT200199309-199712

TOYOTA

sub89615-22050

main89615-20030iST204..GT..USA199904-199905

TOYOTA

sub89615-32040

main89615-22030iAT200199309-199712

MATSUSHITA

main89615-22040iAT200199309-199712

NIPPON DENSO

main89615-33020iST204199309-199904

NIPPON DENSO

sub89615-32030

9017908059

main90179-08059

9043018008

main90430-18008

9165140625

main91651-40625

11 parts on this diagram · 9 diagrams in section
