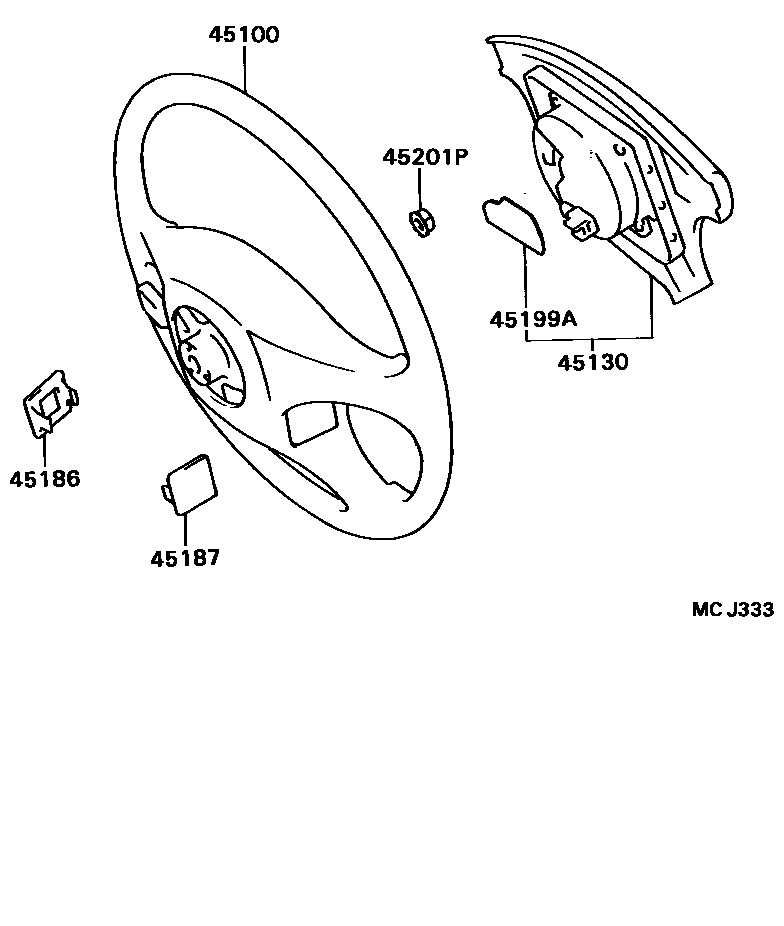

Toyota CELICA — STEERING WHEEL

0001 1 0002 1

45100WHEEL ASSY, STEERING

main45100-20660-02iAT180,ST184..(CP,LB)..NOB..USA198909-199008

RED,TRIM3#

sub45100-20661

main45100-20660-03iAT180,ST184..NOB..USA198909-199308

SHADOW GRAY,TRIM1#

sub45100-20661

main45100-20660-04iAT180,ST184..(CP,LB)..NOB..USA198909-199308

DARK BLUE,TRIM8#

sub45100-20661

main45100-20660-16iAT180,ST184..(CP,LB)..NOB..USA199008-199108

CHOCOLATE BROWN,TRIM4#

sub45100-20661

main45100-20661-P0iAT180;ST184..USA;ST184..GT..CND199308-199309

SHADOW GRAY,TRIM1#

sub45100-20661

main45100-20661-R8iAT180;ST184..GT..CND;ST184..(CP,LB)..USA199308-199309

DARK BLUE,TRIM8#

sub45100-20661

main45100-20670-L6iAT180,ST184..(CP,LB)..NOB..USA199008-199108

W(CRUISE CONTROL),CHOCOLATE BROWN,TRIM4#

sub45100-20671

main45100-20670-P0iST184..USA198909-199308

W(CRUISE CONTROL),SHADOW GRAY,TRIM1#

sub45100-20671

main45100-20670-R8iAT180..USA198909-199308

W(CRUISE CONTROL),DARK BLUE,TRIM8#

sub45100-20671

main45100-20671-P0iST184..USA;ST184..GT..CND199308-199309

W(CRUISE CONTROL),SHADOW GRAY,TRIM1#

sub45100-20671

main45100-20671-R8iAT180199308-199309

W(CRUISE CONTROL),DARK BLUE,TRIM8#

sub45100-20671

main45100-20680-02iST184..GTS..USA198909-199008

RED,TRIM3#

sub45100-20681

main45100-20680-02iST184..GTS..USA198909-199008

LEATHER,RED,TRIM3#

sub45100-20681

main45100-20680-03iST184..GTS..USA198909-199308

SHADOW GRAY,TRIM1#

sub45100-20681

main45100-20680-03iST184..CP;ST184..GTS..USA198909-199308

LEATHER,SHADOW GRAY,TRIM1#

sub45100-20681

main45100-20680-04iST184..GTS..USA198909-199308

LEATHER,DARK BLUE,TRIM8#

sub45100-20681

main45100-20680-04iST184..GTS..USA198909-199308

DARK BLUE,TRIM8#

sub45100-20681

main45100-20680-16iST184..CP..USA199008-199108

CHOCOLATE BROWN,TRIM4#

sub45100-20681

main45100-20680-16iST184..GTS..USA199008-199108

LEATHER,CHOCOLATE BROWN,TRIM4#

sub45100-20681

main45100-20681-P0iST184..GTS..CND199308-199309

LEATHER,SHADOW GRAY,TRIM1#

sub45100-20681

main45100-20681-P0iST184..CP;ST184..GTS..USA199308-199309

SHADOW GRAY,TRIM1#

sub45100-20681

main45100-20681-R8iST184..CP;ST184..GTS..USA199308-199309

LEATHER,DARK BLUE,TRIM8#

sub45100-20681

main45100-20681-R8iST184..GTS..CND199308-199309

DARK BLUE,TRIM8#

sub45100-20681

main45100-20690-02iST185..USA198910-199008

RED,TRIM3#

sub45100-20691

main45100-20690-02iST184..CP..USA198909-199008

LEATHER,W(VACUUM TYPE CRUISE CONTROL),RED,TRIM3#

sub45100-20691

main45100-20690-02iST184..GTS..USA198909-199008

W(CRUISE CONTROL),RED,TRIM3#

sub45100-20691

main45100-20690-03iST185198910-199308

SHADOW GRAY,TRIM1#

sub45100-20691

main45100-20690-03iST184..CP;ST184..GTS..USA199108-199308

LEATHER,W(CRUISE CONTROL),SHADOW GRAY,TRIM1#

sub45100-20691

main45100-20690-03iST184..CP;ST184..GTS..USA198909-199308

W(CRUISE CONTROL),SHADOW GRAY,TRIM1#

sub45100-20691

main45100-20690-03iST184..CP..USA198909-199108

LEATHER,W(VACUUM TYPE CRUISE CONTROL),SHADOW GRAY,TRIM1#

sub45100-20691

main45100-20690-04iST184..GTS..USA198909-199308

W(CRUISE CONTROL),DARK BLUE,TRIM8#

sub45100-20691

main45100-20690-04iST184..GTS..USA198909-199108

LEATHER,W(VACUUM TYPE CRUISE CONTROL),DARK BLUE,TRIM8#

sub45100-20691

main45100-20690-04iST185..USA198910-199108

DARK BLUE,TRIM8#

sub45100-20691

main45100-20690-04iST184..CP..USA;ST184..GTS..USA199108-199308

LEATHER,W(CRUISE CONTROL),DARK BLUE,TRIM8#

sub45100-20691

main45100-20690-06iST185..USA199008-199108

CHOCOLATE BROWN,TRIM4#

sub45100-20691

main45100-20690-06iST184..CP..USA199008-199108

LEATHER,W(VACUUM TYPE CRUISE CONTROL),CHOCOLATE BROWN,TRIM4#

sub45100-20691

main45100-20690-06iST184..CP..USA199008-199108

W(CRUISE CONTROL),CHOCOLATE BROWN,TRIM4#

sub45100-20691

main45100-20691-P0iST185199308-199309

LEATHER,W(CRUISE CONTROL),SHADOW GRAY,TRIM1#

sub45100-20691

main45100-20691-P0iST184..CP;ST184..GTS..USA199308-199309

W(CRUISE CONTROL),SHADOW GRAY,TRIM1#

sub45100-20691

main45100-20691-P0iST184..CP;ST184..GTS..USA199308-199309

SHADOW GRAY,TRIM1#

sub45100-20691

main45100-20691-R8iST184..CP;ST184..GTS..USA199308-199309

LEATHER,W(CRUISE CONTROL),DARK BLUE,TRIM8#

sub45100-20691

main45100-20691-R8iST184..GTS..CND199308-199309

W(CRUISE CONTROL),DARK BLUE,TRIM8#

sub45100-20691

main45100-20700-02iAT180,ST184..NOB..CND198909-199008

RED,TRIM3#

sub45100-20820

main45100-20700-03iAT180,ST184..NOB..CND198909-199108

SHADOW GRAY,TRIM1#

sub45100-20820

main45100-20700-04iAT180,ST184..NOB..CND198909-199108

DARK BLUE,TRIM8#

sub45100-20820

main45100-20700-16iAT180,ST184..NOB..CND199008-199108

CHOCOLATE BROWN,TRIM4#

sub45100-20820

main45100-20720-02iST184..CP..CND198909-199008

LEATHER,RED,TRIM3#

sub45100-2B050

main45100-20720-02iST184..CP..CND198909-199008

RED,TRIM3#

sub45100-2B050

main45100-20720-03iST184..CP..CND198909-199108

LEATHER,SHADOW GRAY,TRIM1#

sub45100-2B050

main45100-20720-03iST184..CP..CND198909-199108

SHADOW GRAY,TRIM1#

sub45100-2B050

main45100-20720-04iST184..CP..CND198909-199108

DARK BLUE,TRIM8#

sub45100-2B050

main45100-20720-04iST18#..WIB..CND198909-199108

LEATHER,DARK BLUE,TRIM8#

sub45100-2B050

main45100-20720-26iST184..CP..CND199008-199108

CHOCOLATE BROWN,TRIM4#

sub45100-2B050

main45100-20720-26iST18#..WIB..CND199008-199108

LEATHER,CHOCOLATE BROWN,TRIM4#

sub45100-2B050

main45100-20820-P0iAT180,ST184..NOB..CND199108-199208

SHADOW GRAY,TRIM1#

sub45100-20820

main45100-20820-R8iAT180,ST184..NOB..CND199108-199208

DARK BLUE,TRIM8#

sub45100-20820

main45100-2B050-P0iST18#..WIB..CND199108-199208

SHADOW GRAY,TRIM1#

sub45100-2B050

main45100-2B050-P0iST18#..WIB..CND199108-199208

LEATHER,SHADOW GRAY,TRIM1#

sub45100-2B050

main45100-2B050-R8iST184..GTS..CND199108-199208

LEATHER,DARK BLUE,TRIM8#

sub45100-2B050

main45100-2B050-R8iST184..CP..CND199108-199208

DARK BLUE,TRIM8#

sub45100-2B050

45130BUTTON ASSY, HORN

main45130-20831-02iAT180,ST184..(CP,LB)..USA198909-199008

RED,TRIM3#

sub45130-20832

main45130-20831-03iAT180,ST18#..GT,GTS,ST,TBO4W198909-199308

SHADOW GRAY,TRIM1#

sub45130-20832

main45130-20831-04iAT180,ST184..(CP,LB)..USA198909-199308

DARK BLUE,TRIM8#

sub45130-20832

main45130-20831-06iAT180,ST184..(CP,LB)..USA199008-199108

CHOCOLATE BROWN,TRIM4#

sub45130-20832

main45130-20832-P0iAT180,ST18#..GT,GTS,ST,TBO4W199308-199309

SHADOW GRAY,TRIM1#

sub45130-20832

main45130-20832-R8iAT180,ST184..CP,LB199308-199309

DARK BLUE,TRIM8#

sub45130-20832

main45130-20841-02iST185..USA198910-199008

RED,TRIM3#

sub45130-20842

main45130-20841-03iST185..USA198910-199308

SHADOW GRAY,TRIM1#

sub45130-20842

main45130-20841-04iST185..USA198910-199108

DARK BLUE,TRIM8#

sub45130-20842

main45130-20841-06iST185..USA199008-199108

CHOCOLATE BROWN,TRIM4#

sub45130-20842

main45130-20842-P0iST185..USA199308-199309

SHADOW GRAY,TRIM1#

sub45130-20842

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-20030-02iAT180,ST184..(CP,LB)..USA198909-199008

RED,TRIM3#

sub45186-20030

main45186-20030-03iAT180,ST184198909-199309

SHADOW GRAY,TRIM1#

sub45186-20030

main45186-20030-04iAT180,ST184..(CP,LB)..USA198909-199309

DARK BLUE,TRIM8#

sub45186-20030

main45186-20030-16iAT180,ST184..(CP,LB)..USA199008-199108

CHOCOLATE BRONWN,TRIM4#

sub45186-20030

main45186-20040-02iST184..(CP,LB)..GT..USA198909-199008

W(CRUISE CONTROL),RED,TRIM3#

sub45186-20040

main45186-20040-02iST185..USA198910-199008

RED,TRIM3#

sub45186-20040

main45186-20040-03iST185198909-199309

W(CRUISE CONTROL),SHADOW GRAY,TRIM1#

sub45186-20040

main45186-20040-03iST185..USA198910-199309

SHADOW GRAY,TRIM1#

sub45186-20040

main45186-20040-04iAT180..USA198909-199309

W(CRUISE CONTROL),DARK BLUE,TRIM8#

sub45186-20040

main45186-20040-04iST185..USA198910-199108

DARK BLUE,TRIM8#

sub45186-20040

main45186-20040-16iST185..USA199008-199108

W(CRUISE CONTROL),CHOCOLATE BROWN,TRIM4#

sub45186-20040

main45186-20040-16iST184..GTS..USA199008-199108

CHOCOLATE BROWN,TRIM4#

sub45186-20040

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-20020-02iAT180,ST18#..(CP,LB)..USA198909-199008

RED,TRIM3#

sub45187-20020

main45187-20020-03iAT180,ST18#198909-199309

SHADOW GRAY,TRIM1#

sub45187-20020

main45187-20020-04iAT180,ST184..(CP,LB)..USA198909-199309

DARK BLUE,TRIM8#

sub45187-20020

main45187-20020-16iAT180,ST18#..(CP,LB)..USA199008-199108

CHOCOLATE BROWN,TRIM4#

sub45187-20020

45199ALABEL, INFLATOR REPLACE CAUTION(FOR STEERING WHEEL PAD)

main45199-32010iAT180,ST18#..USA198909-199309

45201PNUT, STEERING WHEEL SET

main90179-12071iAT180,ST18#199306-199309

main90179-12086iAT180,ST18#198909-199306

6 parts on this diagram · 2 diagrams in section
