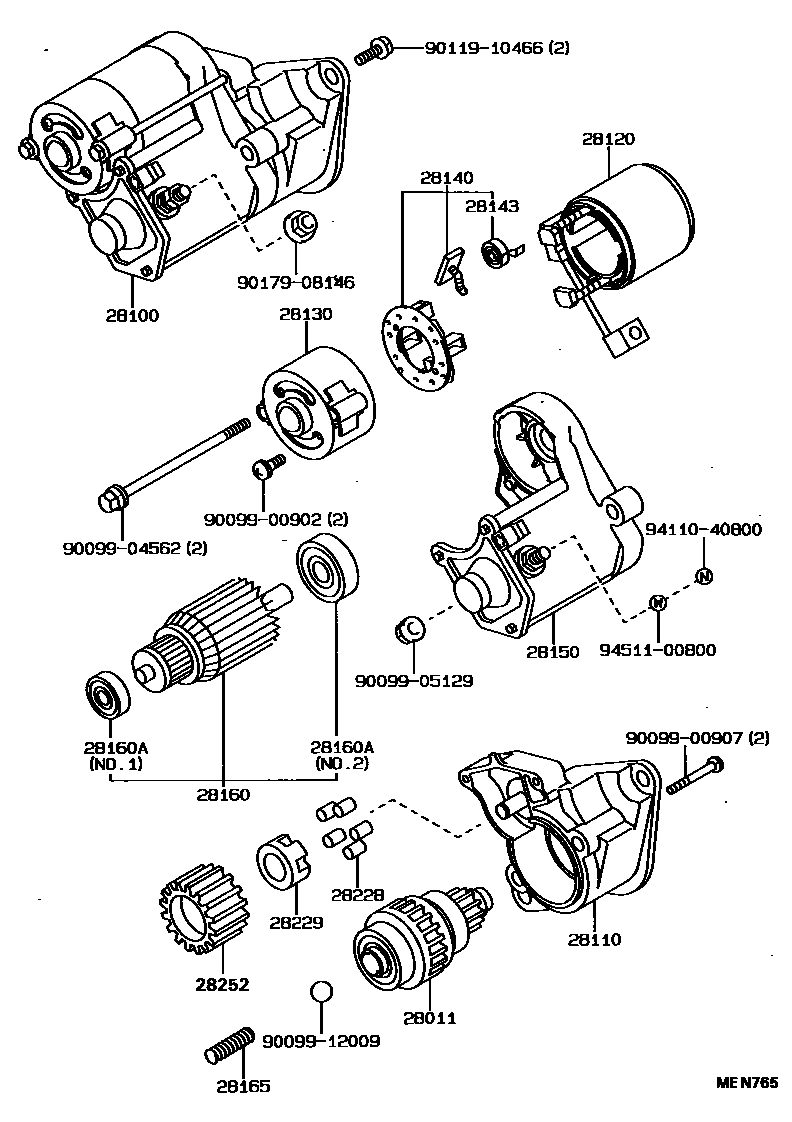

Toyota CELICA — STARTER

0001 112V 1.0KW 0002 112V 1.4KW 0003 112V 1.0KW 0004 112V 1.6KW 0005 112V 1.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i4AFE..AT180..USA199108-199309

main28011-74011i3SGTE,5SFE..ST18#..(CP,LB)..USA198909-199108

main28011-74060i5SFE..ST184..CVT;3SGTE,5SFE..ST18#..CND198909-199108

COLD SPEC

main28011-76070i4AFE..AT180..USA199108-199309

COLD SPEC

28100STARTER ASSY

main28100-16100i4AFE..AT180..USA198909-199108

12V 1.4KW,COLD SPEC

main28100-16110i4AFE..AT180..USA198909-199309

12V 1.0KW

main28100-16130i4AFE..AT180..USA199108-199309

12V 1.4KW,COLD SPEC

main28100-62011i3SGTE..ST185..USA198910-199309

12V 1.0KW

sub28100-74070

main28100-74011i5SFE..ST184..(CP,LB)..USA198909-199108

12V 1.0KW

main28100-74050i3SGTE..ST185..USA199108-199309

12V 1.6KW,COLD SPEC

28110HOUSING ASSY, STARTER DRIVE

main28110-16020i4AFE..AT180..USA198909-199309

main28110-16050i4AFE..AT180..USA198909-199108

COLD SPEC

main28110-16130i4AFE..AT180..USA199108-199309

COLD SPEC

main28110-62010i3SGTE..ST185..USA198910-199309

main28110-62020i5SFE..ST184..CVT;3SGTE,5SFE..ST18#..CND198909-199108

COLD SPEC

main28110-74010i5SFE..ST184..(CP,LB)..USA198909-199108

28120YOKE ASSY, STARTER

main28120-15090i4AFE..AT180..USA198909-199108

COLD SPEC

main28120-26071i4AFE,3SGTE..AT180,ST185..USA199108-199309

main28120-65030i5SFE..ST184..CVT;3SGTE,5SFE..ST18#..CND198909-199108

COLD SPEC

main28120-74070i4AFE..AT180..USA199108-199309

COLD SPEC

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-16130i4AFE..AT180..USA199108-199309

COLD SPEC

main28130-62020i5SFE..ST184..CVT;3SGTE,5SFE..ST18#..CND198909-199108

COLD SPEC

main28130-72010i4AFE..AT180..USA198909-199309

main28130-72020i4AFE..AT180..USA198909-199108

COLD SPEC

main28130-74010i3SGTE,5SFE..ST18#..CP,LB198909-199108

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i4AFE..AT180..USA198909-199108

COLD SPEC

main28140-26070i4AFE..AT180..USA198909-199309

main28140-74010i3SGTE..ST185..USA199108-199309

main28140-74020i5SFE..ST184..CVT;3SGTE,5SFE..ST18#..CND198909-199108

COLD SPEC

main28140-76070i4AFE..AT180..USA199108-199309

COLD SPEC

28143SPRING, STARTER BRUSH

main90099-17112×4i4AFE,3SGTE,5SFE..AT180,ST18#198909-199309

28150SWITCH ASSY, MAGNET STARTER

main28150-16100i4AFE..AT180..USA198909-199108

COLD SPEC

main28150-16110i4AFE..AT180..USA198909-199309

main28150-16130i4AFE..AT180..USA199108-199309

COLD SPEC

main28150-74010i3SGTE..ST185..USA199108-199309

main28150-74020i5SFE..ST184..CVT;3SGTE,5SFE..ST18#..CND198909-199108

COLD SPEC

28160ARMATURE ASSY, STARTER

main28160-15090i4AFE..AT180..USA198909-198911

COLD SPEC

main28160-15091i4AFE..AT180..USA198911-199108

COLD SPEC

main28160-26071i4AFE,3SGTE,5SFE..AT180,ST18#..(CP,LB)..USA198909-199108

main28160-65030i5SFE..ST184..CND198909-198910

COLD SPEC

main28160-65031i5SFE..ST184..CVT;3SGTE,5SFE..ST18#..CND198910-199108

COLD SPEC

main28160-74070i4AFE..AT180..USA199108-199309

COLD SPEC

28160ABEARING, STARTER ARMATURE

main28253-45020i4AFE,3SGTE,5SFE..AT180,ST18#..(CP,LB)..USA198909-199108

NO.1

main90099-10113i4AFE,3SGTE,5SFE..AT180,ST18#..(CP,LB)..USA198909-199108

NO.2

main90099-10143i4AFE..AT180..USA198909-199108

COLD SPEC,NO.2

main90099-10144i5SFE..ST184..CVT;4AFE,3SGTE,5SFE..AT180,ST18#..CND198909-199108

NO.1

main90099-10196i4AFE..AT180..USA199108-199309

COLD SPEC,NO.2

main90099-10197i4AFE..AT180..USA199108-199309

NO.1

main90099-65030i5SFE..ST184..CVT;3SGTE,5SFE..ST18#..CND198909-199108

COLD SPEC,NO.2

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i4AFE..AT180198909-199108

main28165-74010i3SGTE,5SFE..ST18#198909-199309

main28165-76070i4AFE..AT180..USA199108-199309

COLD SPEC

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i4AFE,3SGTE,5SFE..AT180,ST18#198909-199309

28229RETAINER, STARTER IDLE GEAR

main28229-26040i4AFE,3SGTE,5SFE..AT180,ST18#198909-199108

main28229-74070i4AFE..AT180..USA199108-199309

COLD SPEC

28252GEAR, STARTER IDLE

main28254-45020i4AFE..AT180198909-199108

main28254-54070i3SGTE,5SFE..ST18#198909-199309

main28254-74070i4AFE..AT180..USA199108-199309

COLD SPEC

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9011910466

main90119-10466

9017908146

main90179-08146

9411040800

main94110-40800

9451100800

main94511-00800

23 parts on this diagram · 5 diagrams in section
