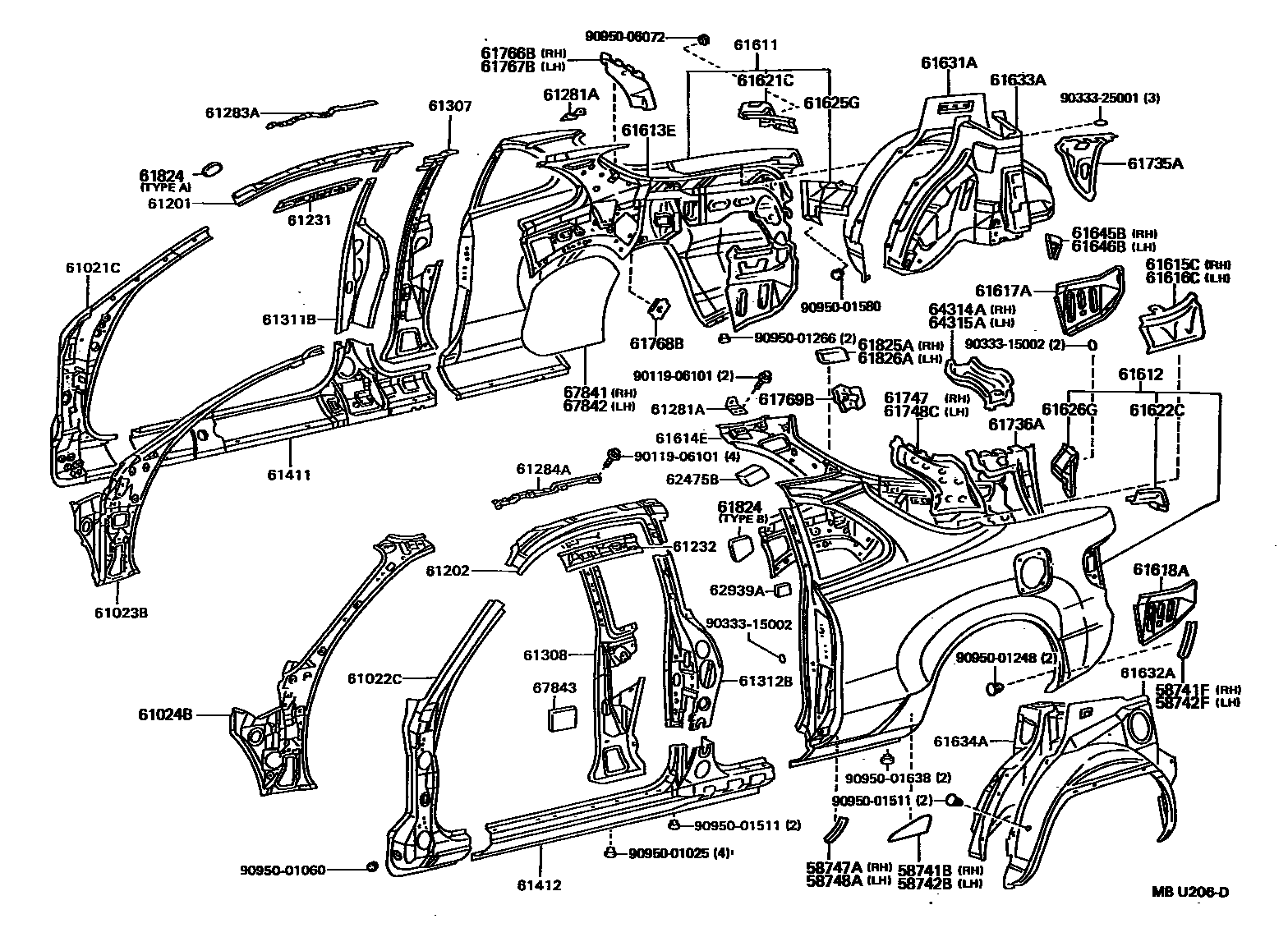

Toyota CELICA — SIDE MEMBER
58741BPROTECTOR, QUARTER PANEL, RH
58741FPROTECTOR, REAR WHEEL EXTENSION, RH
58742BPROTECTOR, QUARTER PANEL, LH
58742FPROTECTOR, REAR WHEEL EXTENSION, LH
58747APROTECTOR, QUARTER PANEL, REAR RH
58748APROTECTOR, QUARTER PANEL, REAR LH
61021CPILLAR SUB-ASSY, FRONT BODY, RH
61022CPILLAR SUB-ASSY, FRONT BODY, LH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61202RAIL SUB-ASSY, ROOF SIDE, LH
61231RAIL, ROOF SIDE, INNER RH
W(SUN ROOF)
61232RAIL, ROOF SIDE, INNER LH
W(SUN ROOF)
61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH
61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61308PILLAR SUB-ASSY, CENTER BODY, INNER LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61611PANEL, QUARTER, RH
W(REAR SPOILER)
W(REAR SPOILER)
61612PANEL, QUARTER, LH
W(REAR SPOILER)
W(REAR SPOILER)
61613EPANEL, QUARTER, INNER RH
61614EPANEL, QUARTER, INNER LH
61615CPANEL, QUARTER INNER, CENTER RH
61616CPANEL, QUARTER INNER, CENTER LH
61617APANEL, QUARTER INNER, REAR RH
61618APANEL, QUARTER, INNER REAR LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61625GEXTENSION, QUARTER PANEL, REAR RH
61626GEXTENSION, QUARTER PANEL, REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH
61824PLATE, NOISE CONTROL, NO.1
TYPE A
TYPE B
61825APLATE, NOISE CONTROL, NO.2
61826APLATE, NOISE CONTROL, NO.3
62475BSEAL, ROOF SIDE, INNER
sub61824-12120
64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH
64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH
67841COVER, QUARTER SERVICE HOLE, NO.1 RH
67842COVER, QUARTER SERVICE HOLE, NO.1 LH
67843COVER, QUARTER SERVICE HOLE, NO.2
9011906101
main90119-06101
9033315002
main90333-15002
9033325001
main90333-25001
9095001025
main90950-01025
9095001060
main90950-01060
9095001248
main90950-01248
9095001266
main90950-01266
9095001511
main90950-01511
9095001580
main90950-01580
9095001638
main90950-01638
9095006072
main90950-06072
70 parts on this diagram · 3 diagrams in section
