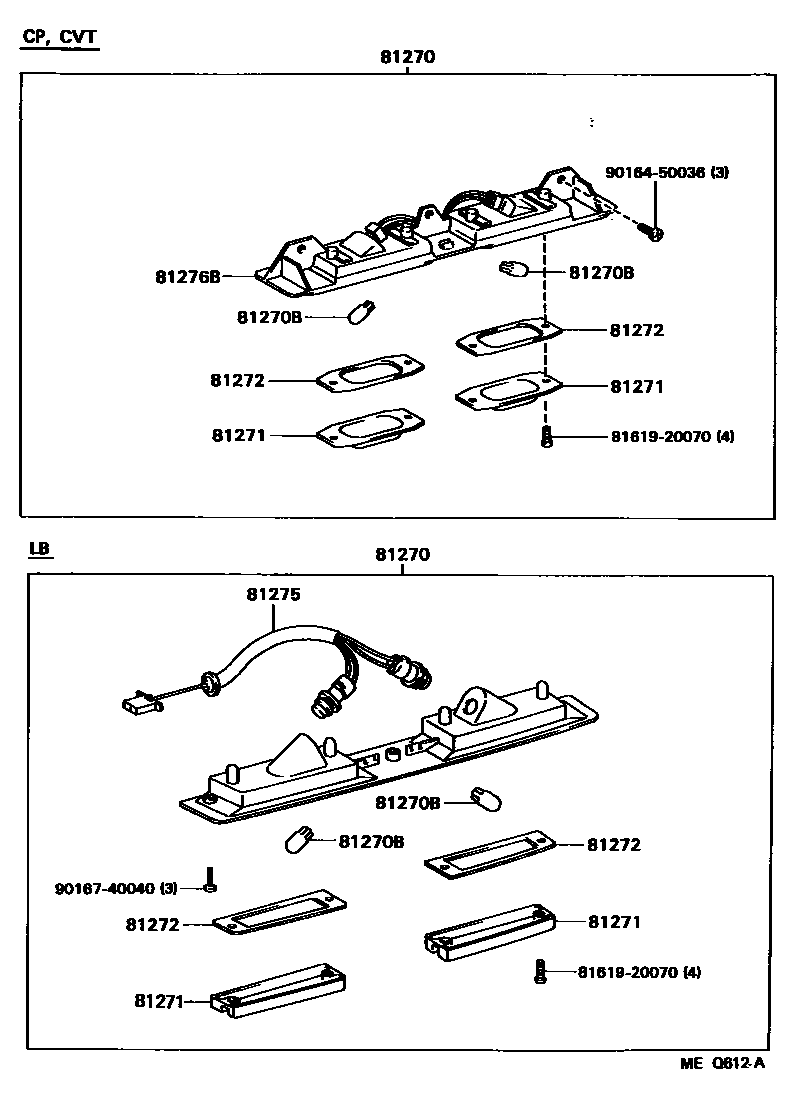

Toyota CELICA — REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-20440iAT180,ST184..CP,CVT198909-199309

main81270-20450iST18#..LB198909-199309

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050iAT180,ST18#198909-199309

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-20440iAT180,ST184..CP,CVT198909-199309

main81271-20450iST18#..LB198909-199309

RH

main81274-20450iST18#..LB198909-199309

LH

81272GASKET, LICENSE PLATE LAMP LENS

main81272-20440iAT180,ST184..CP,CVT198909-199309

main81272-20450iST18#..LB198909-199309

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-20450iST18#..LB198909-199309

81276BCOVER, LICENSE PLATE LAMP

main81276-20440iAT180,ST184..CP,CVT198909-199309

8161920070

main81619-20070

9016450036

main90164-50036

9016740040

main90167-40040

9 parts on this diagram · 1 diagram in section
