Toyota CELICA — PARTIAL ENGINE ASSEMBLY

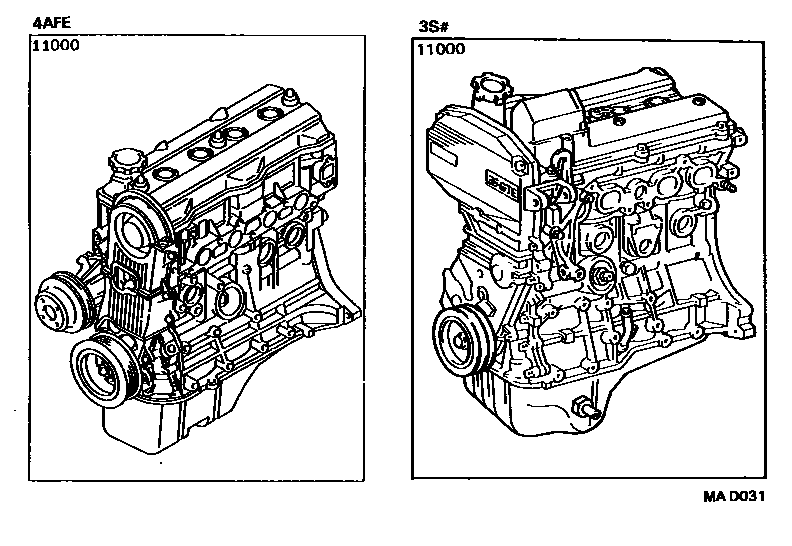

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-16790i198910-199311
main19000-16900i198910-199001
main19000-1A010i199001-199311
main19000-88372i199108-199109
sub16268-88364
sub16281-88360
sub90467-20011
main19000-88373i199108-199109
sub16268-88364
sub16281-88360
sub90467-20011
main19000-88384i198910-199108
sub16268-88383
sub16281-88380
sub90467-20011
main19000-88394i199108-199109
main19000-88501i199202-199311
main19000-88504i199108-199202

1 parts on this diagram · 1 diagram in section
