Toyota CELICA — PARTIAL ENGINE ASSEMBLY

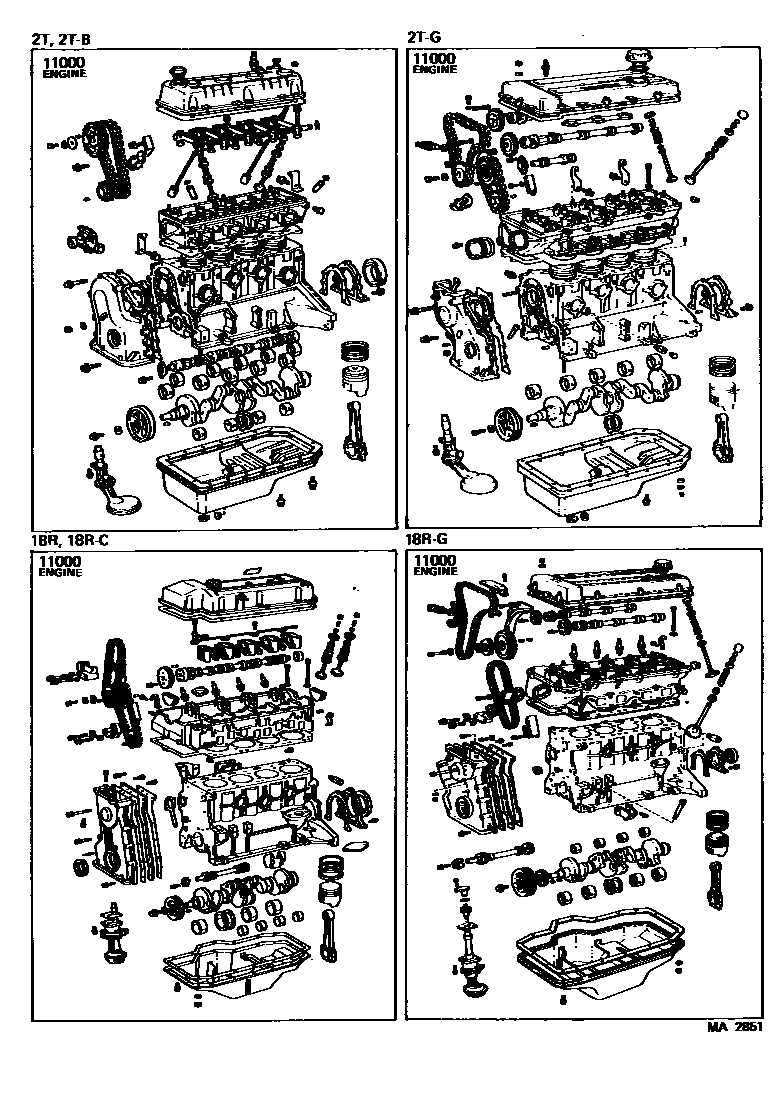

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-26133i197708-197908
main19000-26134i197908-198107
main19000-26143i197708-197908
main19000-26144i197908-198107
main19000-27014i197708-197805
main19000-27015i197805-197903
sub83520-14021
main19000-27016i197903-197908
main19000-27017i197908-198107
main19000-34313i197708-197808
sub90344-53011
main19000-34344i197708-198104
sub25601-34021
sub25601-34041
main19000-34345i198104-198107
main19000-34400i197708-197808
main19000-34430i197708-198107

1 parts on this diagram · 1 diagram in section
