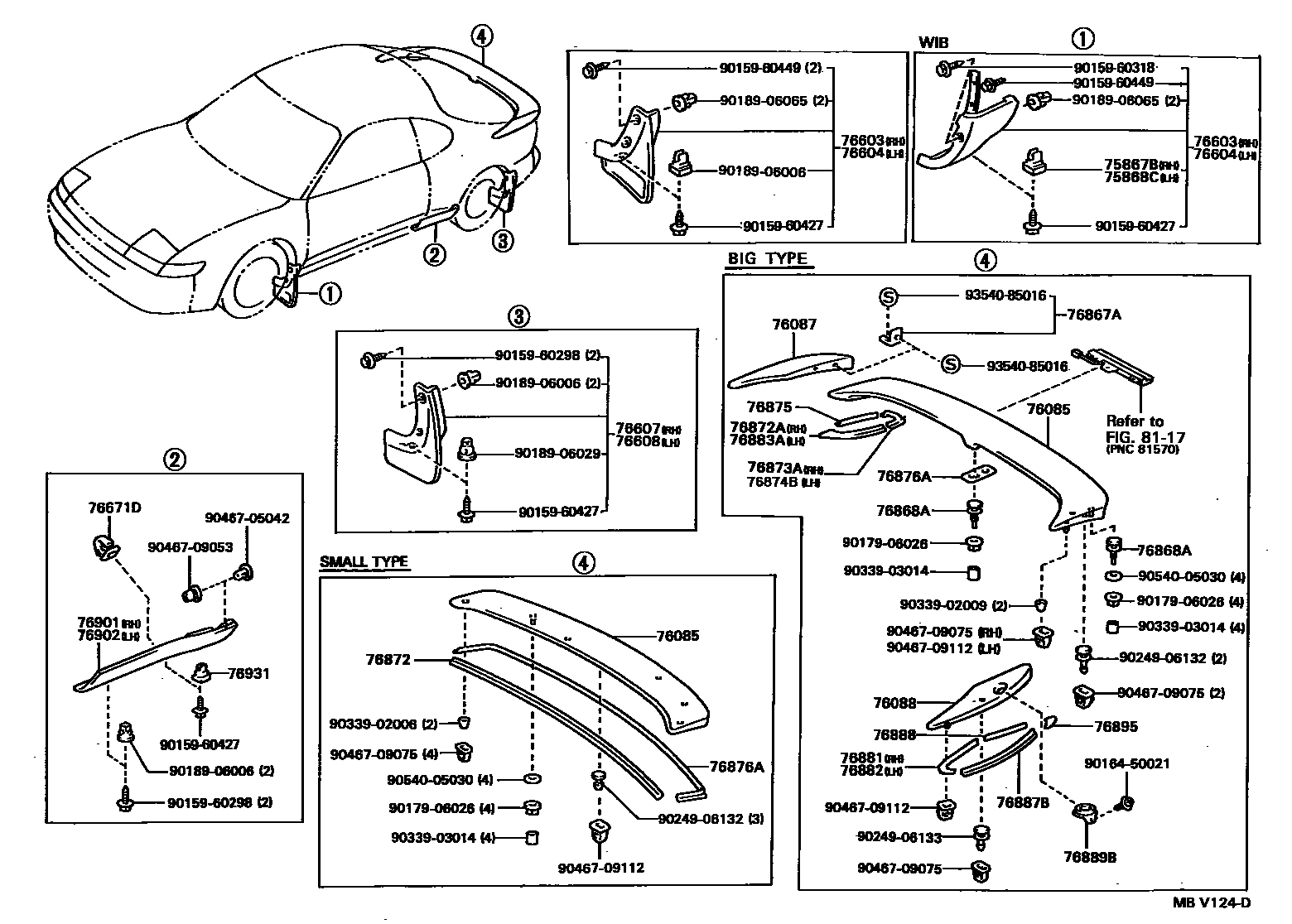

Toyota CELICA — MUDGUARD & SPOILER

0001 1 0002 1

75867BCLIP, ROCKER PANEL MOULDING

main75867-20100iST18#..WIB198909-199309

75868CCLIP, REAR SPOILER, NO.2

main75868-20020iST18#..WIB198909-199309

76085SPOILER SUB-ASSY, REAR

main76085-20903iST18#..WIB198909-199309

main76085-20904iST184..LB..GT199008-199309

main76085-20906iST184..CP,CVT199006-199309

76087SPOILER SUB-ASSY, REAR NO.1

main76087-20909iST18#..WIB198909-199309

main76087-20910iST184..CVT199006-199309

76088SPOILER SUB-ASSY, REAR NO.2

main76088-20910iST18#..WIB198909-199309

main76088-20911iST184..CVT199006-199309

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-29145-02iAT180,ST184..(CP,LB)..NOB199108-199309

SUPER RED 2,3E5

main76603-29145-03iAT180,ST184..(CP,LB)..NOB199108-199309

BLUEISH GRAY M,182

main76603-29145-04iAT180,ST184..(CP,LB)..NOB199108-199309

LIGHT BLUE M,8G6

main76603-29145-08iAT180,ST184..(CP,LB)..NOB199108-199309

SUPER WHITE 2,040

main76603-29145-C0iAT180,ST184..(CP,LB)..NOB199108-199309

BLACK,202

main76603-29145-D0iAT180,ST184..(CP,LB)..NOB199108-199309

WINE RED MICA,3J8

main76603-29145-E0iAT180,ST184..(CP,LB)..NOB199108-199208

BEIGE M.M,4J1

main76603-29145-H0iAT180,ST184..(CP,LB)..NOB199108-199309

MEDIUM TURQUOISE M,749

main76603-29145-H1iAT180199208-199309

TURQUOISE MICA ME,746

main76603-29145-J0iAT180,ST184..(CP,LB)..NOB199108-199309

DARK BLUE M.M,8J1

main76603-29165iAT180,ST184..(CP,LB)..NOB198909-199108

main76603-29175-01iST18#..WIB198909-199309

BLACK,202

main76603-29175-02iST18#..WIB198909-199108

RED MICA,3H4

main76603-29175-03iST18#..WIB198909-199309

BLUEISH GRAY M,182

main76603-29175-04iST184..GTS198909-199309

LIGHT BLUE M,8G6

main76603-29175-07iST18#..WIB199008-199108

DARK TURQUOISE MICA,742

main76603-29175-08iST18#..WIB198909-199309

SUPER WHITE 2,040

main76603-29175-12iST18#..WIB198909-199309

SUPER RED 2,3E5

main76603-29175-13iST18#..WIB199008-199108

BLUISH SILVER M,181

main76603-29175-14iST18#..WIB198909-199108

BLUE MICA M,8G7

main76603-29175-D0iST184..GTS199108-199309

WINE RED MICA,3J8

main76603-29175-E0iST184..GTS199108-199208

BEIGE M.M,4J1

main76603-29175-H0iST18#..WIB199108-199309

MEDIUM TURQUOISE M,749

main76603-29175-J0iST184..GTS199108-199309

DARK BLUE M.M,8J1

main76621-29095iST184..CVT199006-199109

main76621-29105-01iST184..CVT199109-199309

BLACK,202

main76621-29105-02iST184..CVT199109-199309

SUPER RED 2,3E5

main76621-29105-08iST184..CVT199109-199309

SUPER WHITE 2,040

main76621-29105-J0iST184..CVT199109-199309

LIGTH BLUE M,8G6

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-29145-02iAT180,ST184..(CP,LB)..NOB199108-199309

SUPER RED 2,3E5

main76604-29145-03iAT180,ST184..(CP,LB)..NOB199108-199309

BLUEISH GRAY M,182

main76604-29145-04iAT180,ST184..(CP,LB)..NOB199108-199309

LIGHT BLUE M,8G6

main76604-29145-08iAT180,ST184..(CP,LB)..NOB199108-199309

SUPER WHITE 2,040

main76604-29145-C0iAT180,ST184..(CP,LB)..NOB199108-199309

BLACK,202

main76604-29145-D0iAT180,ST184..(CP,LB)..NOB199108-199309

WINE RED MICA,3J8

main76604-29145-E0iAT180,ST184..(CP,LB)..NOB199108-199208

BEIGE M.M,4J1

main76604-29145-H0iAT180,ST184..(CP,LB)..NOB199108-199309

MEDIUM TURQUOISE M,749

main76604-29145-H1iAT180199208-199309

TURQUOISE MICA ME,746

main76604-29145-J0iAT180,ST184..(CP,LB)..NOB199108-199309

DARK BLUE M.M,8J1

main76604-29165iAT180,ST184..(CP,LB)..NOB198909-199108

main76604-29175-01iST18#..WIB198909-199309

BLACK,202

main76604-29175-02iST18#..WIB198909-199108

RED MICA,3H4

main76604-29175-03iST18#..WIB198909-199309

BLUEISH GRAY M,182

main76604-29175-04iST184..GTS198909-199309

LIGHT BLUE M,8G6

main76604-29175-07iST18#..WIB199008-199108

DARK TURQUOISE MICA,742

main76604-29175-08iST18#..WIB198909-199309

SUPER WHITE 2,040

main76604-29175-12iST18#..WIB198909-199309

SUPER RED 2,3E5

main76604-29175-13iST18#..WIB199008-199108

BLUISH SILVER M,181

main76604-29175-14iST18#..WIB198909-199108

BLUE MICA M,8G7

main76604-29175-D0iST184..GTS199108-199309

WINE RED MICA,3J8

main76604-29175-E0iST184..GTS199108-199208

BEIGE M.M,4J1

main76604-29175-H0iST18#..WIB199108-199309

MEDIUM TURQUOISE M,749

main76604-29175-J0iST184..GTS199108-199309

DARK BLUE M.M,8J1

main76622-29095iST184..CVT199006-199109

main76622-29105-01iST184..CVT199109-199309

BLACK,202

main76622-29105-02iST184..CVT199109-199309

SUPER RED 2,3E5

main76622-29105-08iST184..CVT199109-199309

SUPER WHITE 2,040

main76622-29105-J0iST184..CVT199109-199309

LIGHT BLUE M,8G6

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-29195-01iAT180,ST184..(CP,LB)..NOB199108-199309

BLACK,202

main76607-29195-02iAT180,ST184..(CP,LB)..NOB199108-199309

SUPER RED 2,3E5

main76607-29195-03iAT180,ST184..(CP,LB)..NOB199108-199309

BLUEISH GRAY M,182

main76607-29195-04iAT180,ST184..NOB199108-199309

LIGHT BLUE M,8G6

main76607-29195-08iAT180,ST184..(CP,LB)..NOB199108-199309

SUPER WHITE 2,040

main76607-29195-D0iAT180,ST184..(CP,LB)..NOB199108-199309

WINE RED MICA,3J8

main76607-29195-E0iAT180,ST184..(CP,LB)..NOB199108-199208

BEIGE M.M,4J1

main76607-29195-H0iAT180,ST184..(CP,LB)..NOB199108-199309

MEDIUM TURQUOISE M,749

main76607-29195-H1iAT180199208-199309

TURQUOISE MICA ME,746

main76607-29195-J0iAT180,ST184..(CP,LB)..NOB199108-199309

DARK BLUE M.M,8J1

main76607-29235iAT180,ST184..NOB198909-199109

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-29195-01iAT180,ST184..NOB199108-199309

BLACK,202

main76608-29195-02iAT180,ST184..NOB199108-199309

SUPER RED 2,3E5

main76608-29195-03iAT180,ST184..(CP,LB)..NOB199108-199309

BLUEISH GRAY M,182

main76608-29195-04iAT180,ST184..NOB199108-199309

LIGHT BLUE M,8G6

main76608-29195-08iAT180,ST184..NOB199108-199309

SUPER WHITE 2,040

main76608-29195-D0iAT180,ST184..(CP,LB)..NOB199108-199309

WINE RED MICA,3J8

main76608-29195-E0iAT180,ST184..(CP,LB)..NOB199108-199208

BEIGE M.M,4J1

main76608-29195-H0iAT180,ST184..(CP,LB)..NOB199108-199309

MEDIUM TURUQUOISE M,749

main76608-29195-H1iAT180199208-199309

TURQUOISE MICA ME,746

main76608-29195-J0iAT180,ST184..(CP,LB)..NOB199108-199309

DARK BLUE M.M,8J1

main76608-29235iST184..CVT198909-199109

76671DCLIP, SIDE MUDGUARD

main76671-14010iST18#..WIB198909-199309

sub76671-14020

76867ARETAINER, REAR SPOILER, NO.3

main76867-20150iST18#..WIB198909-199309

76868ARETAINER, REAR SPOILER, NO.4

main76868-20110iST18#..WIB198909-199309

76872PROTECTOR, REAR SPOILER, NO.1

main76872-20100iST184..LB..GT199008-199305

sub76872-20101

main76872-20101iST184..LB..GT199305-199309

sub90999-91055

76872APROTECTOR, REAR SPOILER, NO.1

main76872-20080iST184..CVT199006-199309

main76872-20090iST18#..WIB198909-199309

76873APROTECTOR, REAR SPOILER, RH

main76873-20080iST18#..WIB198909-199309

sub90999-91054

76874BPROTECTOR, REAR SPOILER, LH

main76874-20070iST18#..WIB198909-199309

sub90999-91054

76875PROTECTOR, REAR SPOILER, NO.4

main76875-20040iST184..CVT199006-199305

sub76875-20041

main76875-20041iST184..CP,CVT199305-199309

sub90999-91054

main76875-20050iST18#..WIB198909-199305

sub76875-20051

main76875-20051iST18#..WIB199305-199309

sub90999-91054

76876APROTECTOR, REAR SPOILER, NO.10

main76876-20040iST184..CVT199006-199309

main76876-20060iST18#..WIB198909-199309

main76876-20070iST184..LB..GT199008-199309

sub90999-91056

76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH

main76881-20040iST184..CVT199006-199305

main76881-20050iST18#..WIB198909-199309

76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH

main76882-20050iST18#..WIB198909-199309

76883APROTECTOR, REAR SOPILER, NO.7

main76883-20050iST18#..WIB198909-199309

76887BPROTECTOR, REAR SPOILER SIDE, NO.2

main76887-20050iST18#..WIB198909-199309

sub90999-91056

76888PROTECTOR, REAR SPOILER SIDE, NO.3

main76888-20040iST184..CVT199006-199309

sub90999-91057

main76888-20050iST18#..WIB198909-199309

sub90999-91055

76889BSEAL, REAR SPOILER, NO.1

main76889-20030iST18#..WIB198909-199309

76895PROTECTOR, REAR SPOILER, NO.5

main76895-20050iST18#..WIB198909-199305

76901MUDGUARD SUB-ASSY, SIDE, RH

main76901-20030-01iST18#..WIB198909-199309

BLACK,202

main76901-20030-02iST18#..WIB198909-199108

RED MICA,3H4

main76901-20030-03iST18#..WIB199008-199108

BLUISH SILVER M,181

main76901-20030-04iST184..GTS198909-199309

LIGHT BLUE M,8G6

main76901-20030-08iST18#..WIB198909-199309

SUPER WHITE 2,040

main76901-20030-12iST18#..WIB198909-199309

SUPER RED 2,3E5

main76901-20030-13iST18#..WIB198909-199309

BLUISH GRAY M,182

main76901-20030-14iST18#..WIB198909-199108

BLUE MICA M,8G7

main76901-20030-17iST18#..WIB199008-199108

DARK TURQUOISE MICA,742

main76901-20030-D0iST184..GTS199108-199309

WINE RED M,3J8

main76901-20030-E0iST184..GTS199108-199208

BEIGE M.M,4J1

main76901-20030-H0iST18#..WIB199108-199309

MEDIUM TURQUDISE M,749

main76901-20030-J0iST184..GTS199108-199309

DARK BLUE M,8J1

76902MUDGUARD SUB-ASSY, SIDE, LH

main76902-20030-01iST18#..WIB198909-199309

BLACK,202

main76902-20030-02iST18#..WIB198909-199108

RED MICA,3H4

main76902-20030-03iST18#..WIB199008-199108

BLUISH SILVER M,181

main76902-20030-04iST184..GTS198909-199309

LIGHT BLUE M,8G6

main76902-20030-08iST18#..WIB198909-199309

SUPER WHITE 2,040

main76902-20030-12iST18#..WIB198909-199309

SUPER RED 2,3E5

main76902-20030-13iST18#..WIB198909-199309

BLUISH GRAY M,182

main76902-20030-14iST18#..WIB198909-199108

BLUE MICA M,8G7

main76902-20030-17iST18#..WIB199008-199108

DARK TURQUOISE MICA,742

main76902-20030-D0iST184..GTS199108-199309

WINE RED M,3J8

main76902-20030-E0iST184..GTS199108-199208

BEIGE M.M,4J1

main76902-20030-H0iST18#..WIB199108-199309

MEDIUM TURQUOISE M,749

main76902-20030-J0iST184..GTS199108-199309

DARK BLUE M,8J1

76931RETAINER, SIDE MUDGUARD, NO.3

main76931-20020iST18#..WIB198909-199309

8117

9015960298

main90159-60298

9015960318

main90159-60318

9015960427

main90159-60427

9015960449

main90159-60449

9016450021

main90164-50021

9017906026

main90179-06026

9018906006

main90189-06006

9018906029

main90189-06029

9018906065

main90189-06065

9024906132

main90249-06132

9024906133

main90249-06133

9033902006

main90339-02006

9033902009

main90339-02009

9033903014

main90339-03014

9046705042

main90467-05042

9046709053

main90467-09053

9046709075

main90467-09075

9046709112

main90467-09112

9054005030

main90540-05030

9354085016

main93540-85016

49 parts on this diagram · 2 diagrams in section
