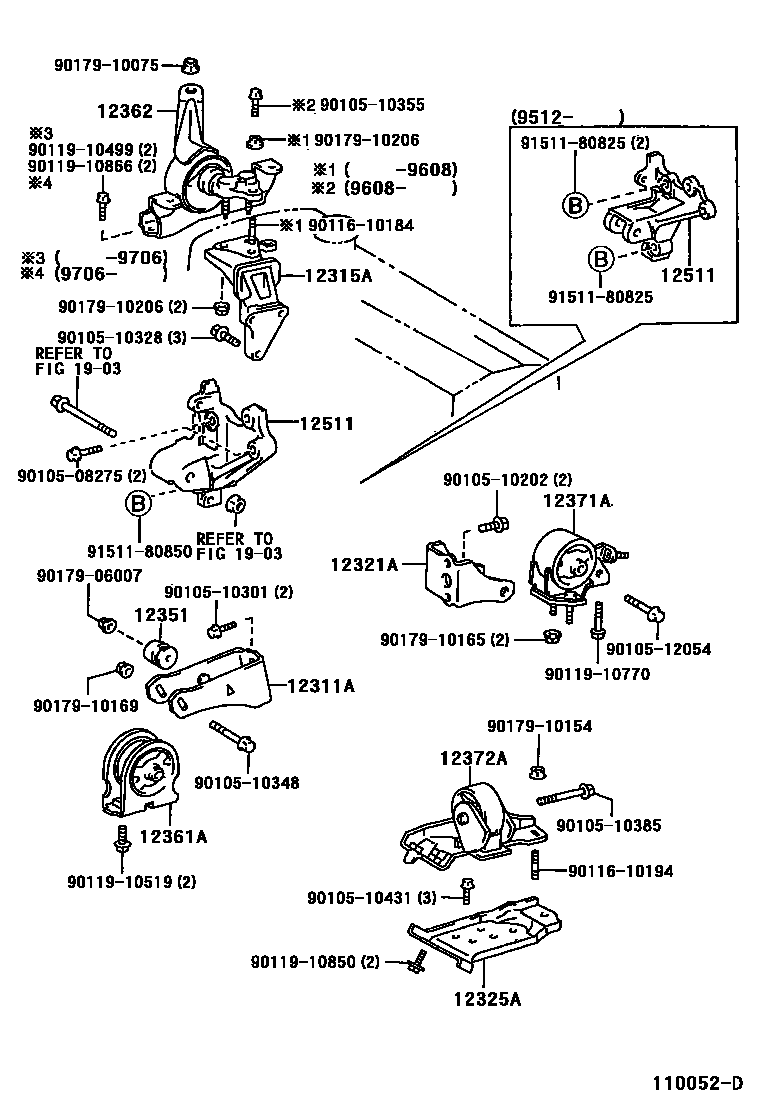

Toyota CELICA — MOUNTING
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12351DAMPER, ENGINE MOUNTING
12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
TYPE A
TYPE B
TYPE A
TYPE B
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12511BRACKET, ALTERNATOR, NO.1
1903ALTERNATOR
9010508275
main90105-08275
9010510202
main90105-10202
9010510301
main90105-10301
9010510328
main90105-10328
9010510348
main90105-10348
9010510355
main90105-10355
9010510385
main90105-10385
9010510431
main90105-10431
9010512054
main90105-12054
9011610184
main90116-10184
9011610194
main90116-10194
9011910499
main90119-10499
9011910519
main90119-10519
9011910770
main90119-10770
9011910850
main90119-10850
9011910866
main90119-10866
9017906007
main90179-06007
9017910075
main90179-10075
9017910154
main90179-10154
9017910165
main90179-10165
9017910169
main90179-10169
9017910206
main90179-10206
9151180825
main91511-80825
9151180850
main91511-80850
35 parts on this diagram · 3 diagrams in section
MOUNTING for Toyota CELICA
This section contains 55 genuine Toyota parts for the MOUNTING system of the Toyota CELICA. Key components include: BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, NO.2 RH, BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE).
