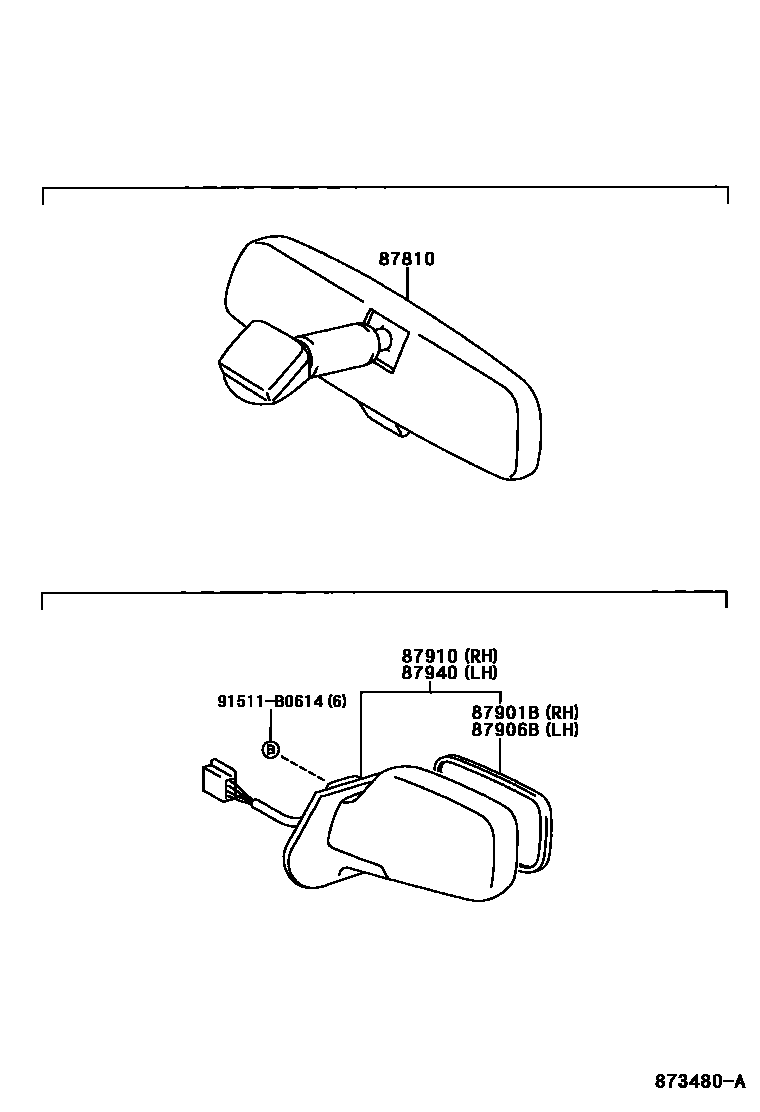

Toyota CELICA — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-52040iZZT23#200208-200509

sub87810-52041

main87810-AA010iZZT23#199908-200208

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-2B470iZZT23#..LHD200208-200509

main87931-2B700iZZT23#..RHD200208-200509

main87931-2B850iZZT23#..RHD199908-200208

ELECTRIC REMOTE CONTROL W/HEATER

main87931-2D210iZZT23#..LHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-2D210iZZT23#..RHD199908-200208

main87961-2D240iZZT23#..LHD200208-200509

main87961-2D250iZZT23#..RHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER

main87961-2D260iZZT23#..LHD199908-200208

ELECTRIC REMOTE CONTROL W/HEATER

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-2B700-A0iZZT23#..RHD199908-200208

SUPER WHITE 2,040

main87910-2B700-B0iZZT23#..RHD199908-200208

SILVER ME.,1D0

main87910-2B700-B1iZZT23#..RHD200008-200208

GRAY ME.,1D2

main87910-2B700-B2iZZT23#..RHD200208-200509

SILVER M.M.,1E7

main87910-2B700-C0iZZT23#..RHD199908-200208

BLACK,202

main87910-2B700-C1iZZT23#..RHD200208-200509

BLACK MC.CC.,210

main87910-2B700-D0iZZT23#..RHD199908-200208

SUPER RED 5,3P0

main87910-2B700-F0iZZT23#..RHD200208-200509

SUPER BRIGHT YELLOW,576

main87910-2B700-G0iZZT23#..RHD200208-200509

DARK GREEN MC.,6R4

main87910-2B700-J0iZZT23#..RHD199908-200208

BLUE MC.,8M6

main87910-2B850-A0iZZT23#..RHD199908-200208

ELECTRIC REMOTE CONTROL W/HEATER,SUPER WHITE 2,040

main87910-2B850-B0iZZT23#..RHD199908-200208

ELECTRIC REMOTE CONTROL W/HEATER,SILVER ME.,1D0

main87910-2B850-B1iZZT23#..RHD200008-200208

ELECTRIC REMOTE CONTROL W/HEATER,GRAY ME.,1D2

main87910-2B850-B2iZZT23#..RHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,SILVER M.M.,1E7

main87910-2B850-C0iZZT23#..RHD199908-200208

ELECTRIC REMOTE CONTROL W/HEATER,BLACK,202

main87910-2B850-C1iZZT23#..RHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,BLACK MC.CC.,210

main87910-2B850-D0iZZT23#..RHD199908-200208

ELECTRIC REMOTE CONTROL W/HEATER,SUPER RED 5,3P0

main87910-2B850-F0iZZT23#..RHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,SUPER BRIGHT YELLOW,576

main87910-2B850-G0iZZT23#..RHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,DARK GREEN MC.,6R4

main87910-2B850-J0iZZT23#..RHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,BLUE MC.,8M6

main87910-2D210-A0iZZT23#..LHD199908-200208

ELECTRIC REMOTE CONTROL W/HEATER,SUPER WHITE 2,040

main87910-2D210-B0iZZT23#..LHD199908-200208

ELECTRIC REMOTE CONTROL W/HEATER,SILVER ME.,1D0

main87910-2D210-B1iZZT23#..LHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,GRAY ME.,1D2

main87910-2D210-B2iZZT23#..LHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,SILVER M.M.,1E7

main87910-2D210-C0iZZT23#..LHD199908-200208

ELECTRIC REMOTE CONTROL W/HEATER,BLACK,202

main87910-2D210-C1iZZT23#..LHD199908-200208

ELECTRIC REMOTE CONTROL W/HEATER,BLACK MC.CC.,210

main87910-2D210-D0iZZT23#..LHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,SUPER RED 5,3P0

main87910-2D210-F0iZZT23#..LHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,SUPER BRIGHT YELLOW,576

main87910-2D210-G0iZZT23#..LHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,DARK GREEN MC.,6R4

main87910-2D210-J0iZZT23#..LHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,BLUE MC.,8M6

main87910-2D220-A0iZZT23#..LHD200208-200509

SUPER WHITE 2,040

main87910-2D220-B0iZZT23#..LHD199908-200208

SILVER ME.,1D0

main87910-2D220-B1iZZT23#..LHD200008-200208

GRAY ME.,1D2

main87910-2D220-B2iZZT23#..LHD200208-200509

SILVER M.M.,1E7

main87910-2D220-C0iZZT23#..LHD200208-200509

BLACK,202

main87910-2D220-C1iZZT23#..LHD199908-200208

BLACK MC.CC.,210

main87910-2D220-D0iZZT23#..LHD200208-200509

SUPER RED 5,3P0

main87910-2D220-F0iZZT23#..LHD200208-200509

SUPER BRIGHT YELLOW,576

main87910-2D220-G0iZZT23#..LHD200208-200509

DARK GREEN MC.,6R4

main87910-2D220-J0iZZT23#..LHD200208-200509

BLUE MC.,8M6

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-2D210-A0iZZT23#..RHD200208-200509

SUPER WHITE 2,040

main87940-2D210-B0iZZT23#..RHD199908-200208

SILVER ME.,1D0

main87940-2D210-B1iZZT23#..RHD200008-200208

GRAY ME.,1D2

main87940-2D210-B2iZZT23#..RHD200208-200509

SILVER M.M.,1E7

main87940-2D210-C0iZZT23#..RHD199908-200208

BLACK,202

main87940-2D210-C1iZZT23#..RHD200208-200509

BLACK MC.CC.,210

main87940-2D210-D0iZZT23#..RHD199908-200208

SUPER RED 5,3P0

main87940-2D210-F0iZZT23#..RHD200208-200509

SUPER BRIGHT YELLOW,576

main87940-2D210-G0iZZT23#..RHD200208-200509

DARK GREEN MC.,6R4

main87940-2D210-J0iZZT23#..RHD200208-200509

BLUE MC.,8M6

main87940-2D240-A0iZZT23#..LHD200208-200509

SUPER WHITE 2,040

main87940-2D240-B0iZZT23#..LHD199908-200208

SILVER ME.,1D0

main87940-2D240-B1iZZT23#..LHD200008-200208

GRAY ME.,1D2

main87940-2D240-B2iZZT23#..LHD200208-200509

SILVER M.M.,1E7

main87940-2D240-C0iZZT23#..LHD199908-200208

BLACK,202

main87940-2D240-C1iZZT23#..LHD200208-200509

BLACK MC.CC.,210

main87940-2D240-D0iZZT23#..LHD199908-200208

SUPER RED 5,3P0

main87940-2D240-F0iZZT23#..LHD200208-200509

SUPER BRIGHT YELLOW,576

main87940-2D240-G0iZZT23#..LHD200208-200509

DARK GREEN MC.,6R4

main87940-2D240-J0iZZT23#..LHD199908-200208

BLUE MC.,8M6

main87940-2D250-A0iZZT23#..RHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,SUPER WHITE 2,040

main87940-2D250-B0iZZT23#..RHD199908-200208

ELECTRIC REMOTE CONTROL W/HEATER,SILVER ME.,1D0

main87940-2D250-B1iZZT23#..RHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,GRAY ME.,1D2

main87940-2D250-B2iZZT23#..RHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,SILVER M.M.,1E7

main87940-2D250-C0iZZT23#..RHD199908-200208

ELECTRIC REMOTE CONTROL W/HEATER,BLACK,202

main87940-2D250-C1iZZT23#..RHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,BLACK MC.CC.,210

main87940-2D250-D0iZZT23#..RHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,SUPER RED 5,3P0

main87940-2D250-F0iZZT23#..RHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,SUPER BRIGHT YELLOW,576

main87940-2D250-G0iZZT23#..RHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,DARK GREEN MC.,6R4

main87940-2D250-J0iZZT23#..RHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,BLUE MC.,8M6

main87940-2D260-A0iZZT23#..LHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,SUPER WHITE 2,040

main87940-2D260-B0iZZT23#..LHD199908-200208

ELECTRIC REMOTE CONTROL W/HEATER,SILVER ME.,1D0

main87940-2D260-B1iZZT23#..LHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,GRAY ME.,1D2

main87940-2D260-B2iZZT23#..LHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,SILVER M.M.,1E7

main87940-2D260-C0iZZT23#..LHD199908-200208

ELECTRIC REMOTE CONTROL W/HEATER,BLACK,202

main87940-2D260-C1iZZT23#..LHD199908-200208

ELECTRIC REMOTE CONTROL W/HEATER,BLACK MC.CC.,210

main87940-2D260-D0iZZT23#..LHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,SUPER RED 5,3P0

main87940-2D260-F0iZZT23#..LHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,SUPER BRIGHT YELLOW,576

main87940-2D260-G0iZZT23#..LHD200208-200509

ELECTRIC REMOTE CONTROL W/HEATER,DARK GREEN MC.,6R4

main87940-2D260-J0iZZT23#..LHD199908-200208

ELECTRIC REMOTE CONTROL W/HEATER,BLUE MC.,8M6

91511B0614

main91511-B0614

6 parts on this diagram · 1 diagram in section
