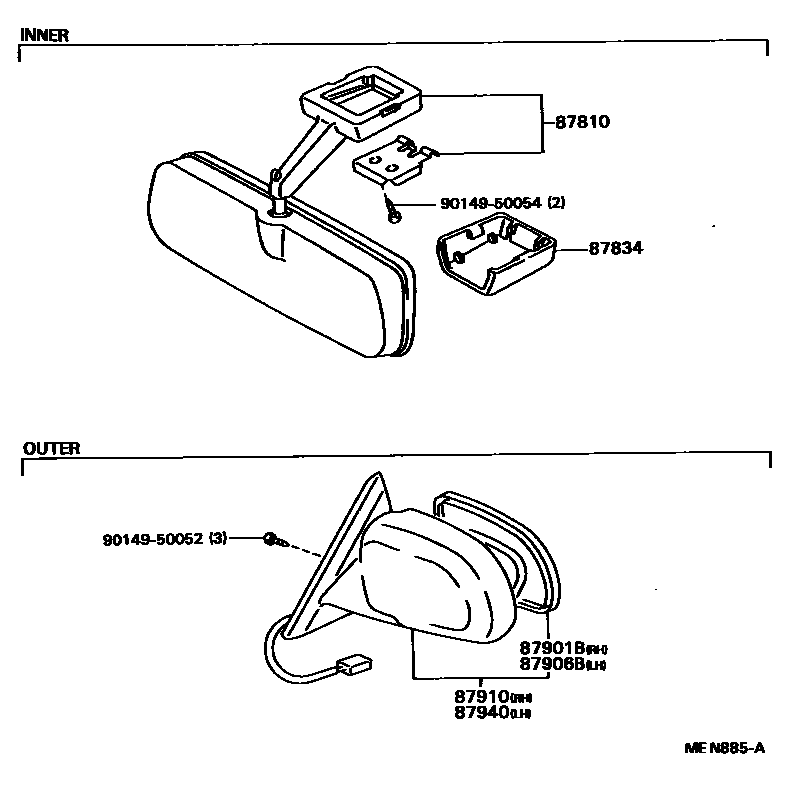

Toyota CELICA — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-20250-03iAT180,ST18#..CP,LB198910-199311

SHADOW GRAY,TRIM1#

main87810-20250-04iAT180,ST182..CP,LB198910-199311

DARK BLUE,TRIM8#

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20110-03iAT180..CP..W;AT180,ST18#..LB198910-199311

SHADOW GRAY,TRIM1#

main87834-20110-04iAT180..CP..W;AT180,ST182..LB198910-199311

DARK BLUE,TRIM8#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-2B400iAT180;ST18#..RHD..WIB;ST182..RHD..CVT199007-199108

W(ELECTRIC REMOTE CONTROL MIRROR)

main87931-2B411iAT180199007-199108

W(ELECTRIC REMOTE CONTROL MIRROR)

main87931-2B412iAT180199110-199311

W(ELECTRIC REMOTE CONTROL MIRROR)

main87931-2B430iST182..LHD198910-199008

W(ELECTRIC REMOTE CONTROL HEATER MIRROR)

main87931-2B432iST182..LHD..LB..NOB199008-199108

W(ELECTRIC REMOTE CONTROL HEATER MIRROR)

main87931-2B433iST182..CVT;ST18#..LHD..WIB199110-199311

W(ELECTRIC REMOTE CONTROL HEATER MIRROR)

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-2B400iAT180;ST18#..RHD..WIB;ST182..RHD..CVT199007-199108

W(ELECTRIC REMOTE CONTROL MIRROR)

main87961-2B411iAT180199108-199110

W(ELECTRIC REMOTE CONTROL MIRROR)

main87961-2B412iAT180199110-199311

W(ELECTRIC REMOTE CONTROL MIRROR)

main87961-2B430iST182..LHD198910-199008

W(ELECTRIC REMOTE CONTROL HEATER MIRROR)

main87961-2B432iST182..LHD..LB..NOB199008-199108

W(ELECTRIC REMOTE CONTROL HEATER MIRROR)

main87961-2B433iST182..CVT;ST18#..LHD..WIB199110-199311

W(ELECTRIC REMOTE CONTROL HEATER MIRROR)

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-2B320-01iST182..RHD198911-199007

W(ELECTRIC REMOTE CONTROL COLORED MIRROR),BLACK,202

main87910-2B320-02iST182..RHD198911-199007

SUPER RED,3E5

main87910-2B320-03iST182..RHD198911-199007

W(ELECTRIC REMOTE CONTROL COLORED MIRROR),BLUISH GRAY METALLIC,182

main87910-2B320-08iST182..RHD198911-199007

W(ELECTRIC REMOTE CONTROL COLORED MIRROR),SUPER WHITE,040

main87910-2B320-12iST182..RHD198911-199007

RED MICA,3H4

main87910-2B320-14iST182..RHD198911-199007

LIGHT BLUE METALLIC,8G7

main87910-2B321-01iST18#..RHD..WIB;ST182..RHD..CVT199007-199108

W(ELECTRIC REMOTE CONTROL COLORED MIRROR),BLACK,202

main87910-2B321-02iST182..RHD..LB..NOB199108-199110

SUPER RED,3E5

main87910-2B321-03iST18#..RHD..WIB199007-199110

BLUISH GRAY M,182

main87910-2B321-08iST18#..RHD..WIB;ST182..RHD..CVT199007-199108

W(ELECTRIC REMOTE CONTROL COLORED MIRROR),SUPER WHITE,040

main87910-2B321-12iST182..RHD..LB..NOB199007-199108

RED MICA,3H4

main87910-2B321-14iST182..RHD..LB..NOB199007-199108

LIGHT BLUE M,8G7

main87910-2B321-23iST182..RHD..LB..NOB199008-199108

BLUISH SILVER M,181

main87910-2B321-38iST182..RHD..LB..NOB199108-199110

WIN RED MICA,3J8

main87910-2B321-H0iST182..RHD..LB..NOB199108-199110

W(ELECTRIC REMORTE CONTROL MIRROR),MEDIUM TORQUOISE M.,749

main87910-2B321-J0iST182..RHD..LB..NOB199108-199110

DARK BLUE MICA,8J1

main87910-2B322-38iST182..RHD..NOB199110-199311

WINE RED MICA,3J8

main87910-2B322-A0iST18#..RHD..WIB199110-199311

W(ELECTRIC REMORTE CONTROL MIRROR),SUPER WHITE,040

main87910-2B322-B0iST18#..RHD..WIB199110-199311

W(ELECTRIC REMORTE CONTROL MIRROR),BLUISH GRAY M.,182

main87910-2B322-C0iST18#..RHD..WIB199110-199311

BLACK,202

main87910-2B322-D0iST18#..RHD..WIB199110-199311

SUPER RED,3E5

main87910-2B322-H0iST18#..RHD..WIB199110-199311

MEDIUM TURQ UOISE M.,749

main87910-2B322-J0iST182..RHD..NOB199110-199311

DARK BLUE M.M,8J1

main87910-2B390iAT180198910-199007

main87910-2B391iAT180199007-199311

main87910-2B400iST182..RHD198911-199007

main87910-2B401iST182..RHD..LB..NOB199007-199110

main87910-2B402iST182..RHD..NOB199110-199311

main87910-2B410iST182..LHD198910-199007

W(ELECTRIC REMOTE CONTROL MIRROR)

main87910-2B411iAT180199007-199108

W(ELECTRIC REMOTE CONTROL MIRROR)

main87910-2B412iAT180199110-199311

W(ELECTRIC REMOTE CONTROL MIRROR)

main87910-2B430-01iST182..LHD198910-199005

W(ELECTRIC REMOTE CONTROL HEATER MIRROR),BLACK,202

main87910-2B430-02iST182..LHD198910-199005

SUPER RED,3E5

main87910-2B430-03iST182..LHD198910-199005

BLUISH GRAY METALLIC,182

main87910-2B430-08iST182..LHD198910-199005

W(ELECTRIC REMOTE CONTROL HEATER MIRROR),SUPER WHITE,040

main87910-2B430-12iST182..LHD198910-199005

RED MICA,3H4

main87910-2B430-14iST182..LHD198910-199005

W(ELECTRIC REMOTE CONTROL HEATER MIRROR),BLUE MICA METALLIC,8G7

main87910-2B432-01iST18#..LHD..WIB;ST182..LHD..CVT199008-199108

W(ELECTRIC REMOTE CONTROL HEATER MIRROR),BLACK,202

main87910-2B432-02iST18#..LHD..WIB;ST182..LHD..CVT199008-199108

SUPER RED,3E5

main87910-2B432-03iST182..LHD..LB..NOB199008-199108

W(ELECTRIC REMOTE CONTROL HEATER MIRROR),BLUISH GRAY M,182

main87910-2B432-08iST18#..LHD..WIB;ST182..LHD..CVT199008-199108

W(ELECTRIC REMOTE CONTROL HEATER MIRROR),SUPER WHITE,040

main87910-2B432-12iST18#..LHD..WIB199008-199108

RED MICA,3H4

main87910-2B432-13iST18#..LHD..WIB199008-199108

BLUISH SILVER,181

main87910-2B432-14iST18#..LHD..WIB199008-199108

W(ELECTRIC REMOTE CONTROL HEATER MIRROR),BLUE MICA M,8G7

main87910-2B432-38iST182..LHD..WIB199108-199110

W(ELECTRIC REMOTE CONTROL MIRROR),WINE RED MICA,3J8

main87910-2B432-H0iST18#..LHD..WIB199108-199110

W(ELECTRIC REMOTE CONTROL MIRROR),MEDIUM TURQUOISE M.,749

main87910-2B432-J0iST182..LHD..WIB199108-199110

DARK BLUE M.M,8J1

main87910-2B433-38iST182..LHD..WIB199110-199311

W(ELECTRIC REMOTE CONTROL MIRROR),WINE RED MICA,3J8

main87910-2B433-A0iST182..CVT;ST18#..LHD..WIB199110-199311

W(ELECTRIC REMOTE CONTROL MIRROR),SUPER WHITE,040

main87910-2B433-B0iST18#..LHD..WIB199110-199311

W(ELECTRIC REMOTE CONTROL MIRROR),BLUISH GRAY M.,182

main87910-2B433-C0iST182..CVT;ST18#..LHD..WIB199110-199311

W(ELECTRIC REMOTE CONTROL MIRROR),BLACK,202

main87910-2B433-D0iST182..CVT;ST18#..LHD..WIB199110-199311

SUPER RED,3E5

main87910-2B433-H0iST18#..LHD..WIB199110-199311

W(ELECTRIC REMOTE CONTROL MIRROR),MEDIUM TURQUOISE M.,749

main87910-2B433-J0iST182..LHD..WIB199110-199311

DARK BLUE M.M,8J1

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-2B390iAT180198910-199007

main87940-2B391iAT180199007-199311

main87940-2B400iST182..RHD198911-199007

main87940-2B401iST182..RHD..LB..NOB199007-199110

main87940-2B402iST182..RHD..NOB199110-199311

main87940-2B410iST182..LHD198910-199007

W(ELECTRIC REMOTE CONTROL MIRROR)

main87940-2B411iAT180199007-199108

W(ELECTRIC REMOTE CONTROL MIRROR)

main87940-2B412iAT180199110-199311

W(ELECTRIC REMOTE CONTROL MIRROR)

main87940-2B430-01iST182..LHD198910-199005

W(ELECTRIC REMOTE CONTROL HEATER MIRROR),BLACK,202

main87940-2B430-02iST182..LHD198910-199005

SUPER RED,3E5

main87940-2B430-03iST182..LHD198910-199005

BLUISH GRAY METALLIC,182

main87940-2B430-08iST182..LHD198910-199005

W(ELECTRIC REMOTE CONTROL HEATER MIRROR),SUPER WHITE,040

main87940-2B430-12iST182..LHD198910-199005

RED MICA,3H4

main87940-2B430-14iST182..LHD198910-199005

W(ELECTRIC REMOTE CONTROL HEATER MIRROR),BLUE MICA METALLIC,8G7

main87940-2B431-01iST182..LHD..CVT199108-199109

BLACK,202

main87940-2B431-02iST18#..LHD..WIB;ST182..LHD..CVT199008-199108

SUPER RED,3E5

main87940-2B431-03iST18#..LHD..WIB199008-199108

BLUISH GRAY METALLIC,182

main87940-2B431-04iST18#..LHD..WIB199008-199108

BLUE MICA METALLIC,8G7

main87940-2B431-08iST18#..LHD..WIB;ST182..LHD..CVT199008-199108

W(ELECTRIC REMOTE CONTROL HEATER MIRROR),SUPER WHITE,040

main87940-2B431-12iST18#..LHD..WIB199008-199108

RED MICA,3H4

main87940-2B431-13iST18#..LHD..WIB199008-199108

BLUISH SILVER,181

main87940-2B432-01iST18#..LHD..WIB;ST182..LHD..CVT199008-199108

W(ELECTRIC REMOTE CONTROL HEATER MIRROR),BLACK,202

main87940-2B432-02iST18#..LHD..WIB;ST182..LHD..CVT199008-199108

SUPER RED,3E5

main87940-2B432-03iST182..LHD..LB..NOB199108-199110

W(ELECTRIC REMOTE CONTROL MIRROR),BLUISH GRAY M,182

main87940-2B432-08iST18#..LHD..WIB;ST182..LHD..CVT199008-199108

W(ELECTRIC REMOTE CONTROL HEATER MIRROR),SUPER WHITE,040

main87940-2B432-12iST18#..LHD..WIB199008-199108

RED MICA,3H4

main87940-2B432-13iST18#..LHD..WIB199008-199108

BLUISH SILVER,181

main87940-2B432-14iST18#..LHD..WIB199008-199108

W(ELECTRIC REMOTE CONTROL HEATER MIRROR),BLUE MICA M,8G7

main87940-2B432-38iST182..LHD..WIB199108-199110

W(ELECTRIC REMOTE CONTROL MIRROR),WINE RED MICA,3J8

main87940-2B432-H0iST18#..LHD..WIB199108-199110

W(ELECTRIC REMOTE CONTROL MIRROR),MEDIUM TURQUOISE M.,749

main87940-2B432-J0iST182..LHD..WIB199108-199110

W(ELECTRIC REMOTE CONTROL MIRROR),DARK BLUE MICA,8J1

main87940-2B433-38iST182..LHD..WIB199110-199311

W(ELECTRIC REMOTE CONTROL MIRROR),WINE RED MICA,3J8

main87940-2B433-A0iST182..CVT;ST18#..LHD..WIB199110-199311

W(ELECTRIC REMOTE CONTROL MIRROR),SUPER WHITE,040

main87940-2B433-B0iST18#..LHD..WIB199110-199311

W(ELECTRIC REMOTE CONTROL MIRROR),BLUISH GRAY M.,182

main87940-2B433-C0iST182..CVT;ST18#..LHD..WIB199110-199311

W(ELECTRIC REMOTE CONTROL MIRROR),BLACK,202

main87940-2B433-D0iST182..CVT;ST18#..LHD..WIB199110-199311

SUPER RED,3E5

main87940-2B433-H0iST18#..LHD..WIB199110-199311

W(ELECTRIC REMOTE CONTROL MIRROR),MEDIUM TURQUOISE M.,749

main87940-2B433-J0iST182..LHD..WIB199110-199311

DARK BLUE M.M,8J1

main87940-2B460-01iST182..RHD198911-199007

W(ELECTRIC REMOTE CONTROL COLORED MIRROR),BLACK,202

main87940-2B460-02iST18#..RHD198910-198911

SUPER RED,3E5

main87940-2B460-03iST182..RHD198911-199007

W(ELECTRIC REMOTE CONTROL COLORED MIRROR),BLUISH GRAY METALLIC,182

main87940-2B460-08iST182..RHD198911-199007

W(ELECTRIC REMOTE CONTROL COLORED MIRROR),SUPER WHITE,040

main87940-2B460-12iST182..RHD198911-199007

RED MICA,3H4

main87940-2B460-14iST18#..RHD198910-198911

BLUE MICA METALLIC,8G7

main87940-2B461-01iST182..RHD..LB..NOB199108-199109

BLACK,202

main87940-2B461-02iST182..RHD..LB..NOB199108-199109

SUPER RED,3E5

main87940-2B461-03iST18#..RHD..WIB199007-199110

BLUISH GRAY M,182

main87940-2B461-08iST182..RHD..LB..NOB199108-199109

W(ELECTRIC REMORTE CONTROL MIRROR),SUPER WHITE,040

main87940-2B461-12iST182..RHD..LB..NOB199007-199108

RED MICA,3H4

main87940-2B461-14iST182..RHD..LB..NOB199007-199108

W(ELECTRIC REMOTE CONTROL COLORED MIRROR),BLUE MICA M,8G7

main87940-2B461-23iST182..RHD..LB..NOB199008-199108

BLUISH SILVER M,181

main87940-2B461-38iST182..RHD..LB..NOB199108-199109

WINE RED MICA,3J8

main87940-2B461-H0iST182..RHD..LB..NOB199108-199109

W(ELECTRIC REMORTE CONTROL MIRROR),MEDIUM TURQUOISE M.,749

main87940-2B461-J0iST182..RHD..LB..NOB199108-199109

DARK BLUE MICA,8J1

main87940-2B462-38iST182..RHD..NOB199110-199311

WINE RED MICA,3J8

main87940-2B462-A0iST18#..RHD..WIB199110-199311

W(ELECTRIC REMORTE CONTROL MIRROR),SUPER WHITE,040

main87940-2B462-B0iST18#..RHD..WIB199110-199311

W(ELECTRIC REMORTE CONTROL MIRROR),BLUISH GRAY M.,182

main87940-2B462-C0iST18#..RHD..WIB199110-199311

BLACK,202

main87940-2B462-D0iST18#..RHD..WIB199110-199311

SUPER RED,3E5

main87940-2B462-H0iST18#..RHD..WIB199110-199311

W(ELECTRIC REMORTE CONTROL MIRROR),MEDIUM TURQUOISE M.,749

main87940-2B462-J0iST182..RHD..NOB199110-199311

DARK BLUE M.M,8J1

9014950052

main90149-50052

9014950054

main90149-50054

8 parts on this diagram · 1 diagram in section
