Toyota CELICA — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
DARK BEIGE,TRIM4#
BLACK,TRIM2#
BLUE,TRIM8#
87827ABSORBER, INNER REAR VIEW MIRROR
L=35
L=32
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
DEEP BLUE,TRIM8#
SHADOW GRAY,TRIM2#
DARK BEIGE,TRIM4#
BEIGE,TRIM4#
87908BMIRROR SUB-ASSY, RH
ELECTRIC *RCM---W(HEATER)
87909BMIRROR SUB-ASSY, LH
ELECTRIC *RCM
ELECTRIC *RCM---W(HEATER)
87910MIRROR ASSY, OUTER REAR VIEW, RH
ELECTRIC *RCM
ELECTRIC *RCM---W(HEATER)
BLACK,202
SUPER RED,3E5
BLUE MICA,8E3
SUPER WHITE,040
RED MAICA,3H4
GRAY M,168
BLACK,202
SUPER RED,3E5
GRAY METALLIC,168
BLUE MICA,8E3
SUPER WHITE,040
RED MICA,3H4
BLACK,202
SUPER RED,3E5
GRAY M,168; GRAY M,168 ,920
BLUE MAICA,21C ,8E3; BLUE MAICA,8E3
SUPER WHITE,040
87940MIRROR ASSY, OUTER REAR VIEW, LH
ELECTRIC *RCM
ELECTRIC *RCM---W(HEATER)
BLACK,202
SUPER RED,3E5
GRAY M,168
BLUE MAICA,21C ,8E3; BLUE MAICA,8E3
SUPER WHITE,040
BLACK,202
SUPER RED,3E5
GRAY METARIC,168
BLUE MICA,8E3
SUPER WHITE,040
BLACK,202
SUPER RED,3E5
GRAY METALLIC,168
BLUE MICA,8E3
DARK BROWN METALLIC,4J5
SUPER WHITE,040
RED MICA,3H4
BLUE MICA METALLIC,8G1
RUSSET BROWN METALLI,4J6
AMETHYST SILVER META,920
LIGHT BLUE MICA META,8G2
9014950044
main90149-50044
9331915016
main93319-15016

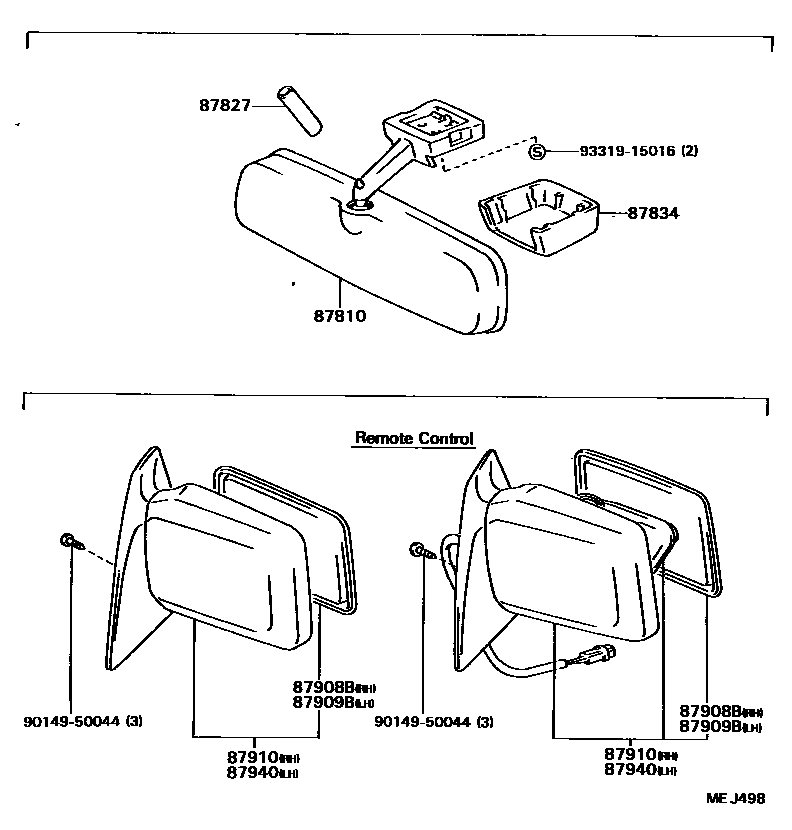

9 parts on this diagram · 1 diagram in section
MIRROR for Toyota CELICA
This section contains 9 genuine Toyota parts for the MIRROR system of the Toyota CELICA. Key components include: MIRROR ASSY, INNER REAR VIEW, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, RH, MIRROR SUB-ASSY, LH.
