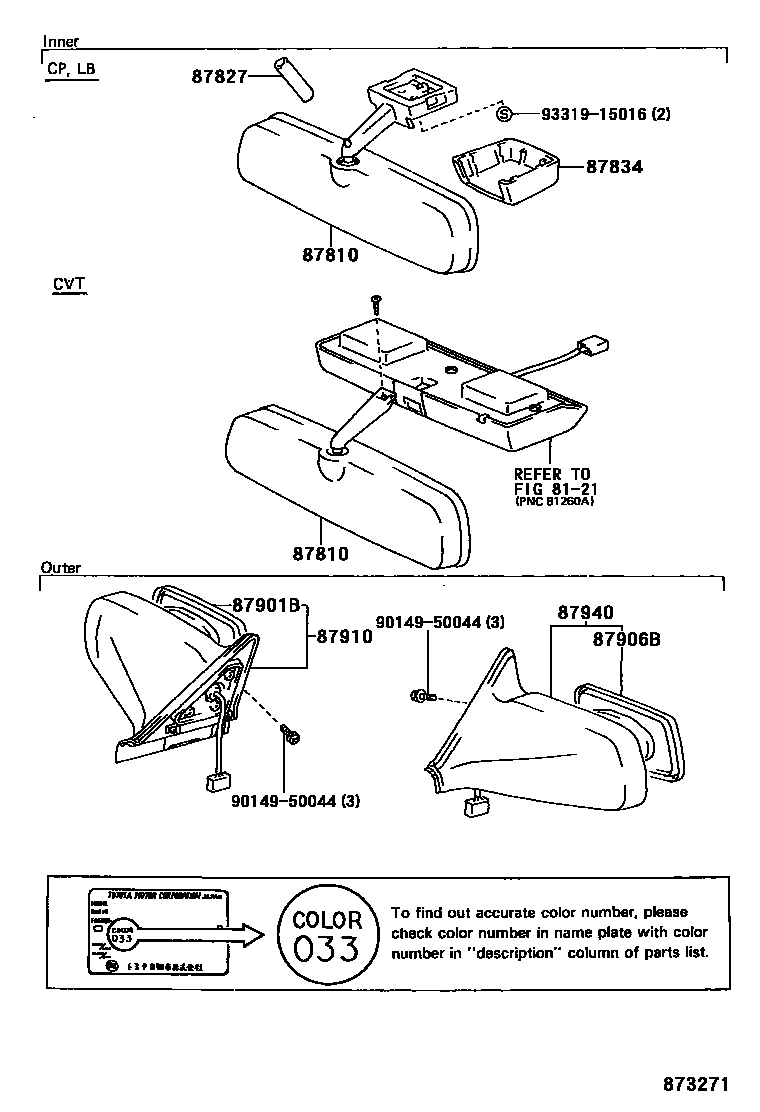

Toyota CELICA — MIRROR
8121INTERIOR LAMP
87810MIRROR ASSY, INNER REAR VIEW
GRAY,SHADOW GRAY,TRIM1#
RED,RED,TRIM3#
SHADOW GRAY,GRAY,TRIM1#
DEEP BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
87827ABSORBER, INNER REAR VIEW MIRROR
L=34.5
L=32
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
BROWN,BROWN,TRIM4#
RED,RED,TRIM3#
DEEP BLUE,DEEP BLUE,TRIM8#
SHADOW GRAY,SHADOW GRAY,TRIM1#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
W/*MIH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
W/*MIH
87910MIRROR ASSY, OUTER REAR VIEW, RH
W/*MIH
W/*MIH,BLACK(202),BLACK,202
W/*MIH,SUPER RED(3E5),SUPER RED,3E5
W/*MIH,SILVER-M(164),SILVER METALLIC,164
W/*MIH,LIGHT BLUE-M(8D8),LIGHT BLUE METALLIC,8D8
W/*MIH,MEDIUM BROWN-M(4H4,22C),MEDIUM BROWN M,4H4 ,22C
W/*MIH,WHITE(040),SUPER WHITE,040
W/*MIH,SHELL-M(3E3),SHELL METALLIC,3E3
W/*MIH,MEDIUM GRAY-M(159),MEDIUM GRAY METALLIC,159
W/*MIH,BLUE-M(8D7,23C),BLUE METALLIC,8D7 ,23C
W/*MIH,WINE RED-M(3G9),WINE RED METALLIC,3G9
W/*MIH,BLUISH GRAY-M(2Z3),BLUISH GRAY METALLIC,2Z3
87940MIRROR ASSY, OUTER REAR VIEW, LH
W/*MIH
W/*MIH,BLACK(202),BLACK,202
W/*MIH,SUPER RED(3E5),SUPER RED,3E5
W/*MIH,SILVER-M(164),SILVER METALLIC,164
W/*MIH,MEDIUM BLUE-M(8D8),LIGHT BLUE METALLIC,8D8
W/*MIH,MEDIUM BROWN-M(4H4,22C),MEDIUM BROWN M,4H4 ,22C
W/*MIH,WHITE(040),SUPER WHITE,040
W/*MIH,SHELL-M(3E3),SHELL METALLIC,3E3
W/*MIH,MEDIUM GRAY-M(159),MEDIUM GRAY METALLIC,159
W/*MIH,BLUE-M(8D7,23C,BLUE METALLIC,8D7 ,23C
W/*MIH,WINE RED-M(3G9),WINE RED METALLIC,3G9
W/*MIH,BLUISH GRAY-M(163),BLUISH GRAY METALLIC,163
9014950044
main90149-50044
9331915016
main93319-15016
10 parts on this diagram · 1 diagram in section
MIRROR for Toyota CELICA
This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota CELICA. Key components include: INTERIOR LAMP, MIRROR ASSY, INNER REAR VIEW, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
