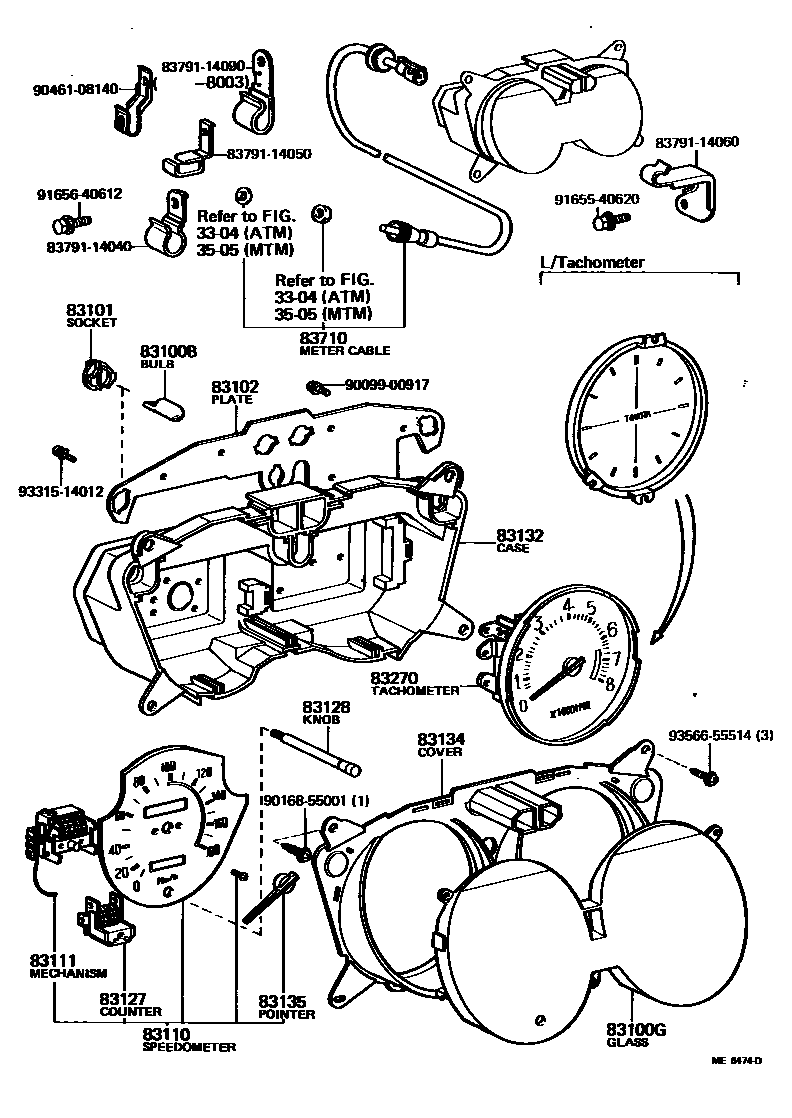

Toyota CELICA — METER
3304SPEEDOMETER DRIVEN GEAR (MTM)
3505SPEEDOMETER DRIVEN GEAR (ATM)
83100BBULB, COMBINATION METER, NO.1
12V 3.4W,12V 3.4W
83100GGLASS, COMBINATION METER
83101SOCKET SUB-ASSY, COMBINATION METER BULB
12V 3.4W
12V 1.4W
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83110SPEEDOMETER ASSY
KM
MILE & KM,HONGKONG SPEC
MILE & KM
KM
KM
KM
MILE & KM
MILE & KM
KM
KM
MILE & KM
83111MECHANISM, SPEEDOMETER
KM
MILE & KM
83127COUNTER, TRIP
83128KNOB, TRIP COUNTER
83132CASE, COMBINATION METER
83134COVER, COMBINATION METER, NO.1
83135POINTER, SPEEDOMETER
83270TACHOMETER ASSY, ENGINE
83710CABLE ASSY, SPEEDOMETER DRIVE, NO.1
L=1450
L=1450
L=1350
L=1380
L=1400
L=1420
L=1850
L=1850
L=1700
L=1750
L=1800
L=1750
8379114040
main83791-14040
8379114050
main83791-14050
8379114060
main83791-14060
8379114090
main83791-14090
9009900917
main90099-00917
9016855001
main90168-55001
9046108140
main90461-08140
9165540620
main91655-40620
9165640612
main91656-40612
9331514012
main93315-14012
9356655514
main93566-55514
26 parts on this diagram · 2 diagrams in section
METER for Toyota CELICA
This section contains 40 genuine Toyota parts for the METER system of the Toyota CELICA. Key components include: SPEEDOMETER DRIVEN GEAR (MTM), SPEEDOMETER DRIVEN GEAR (ATM), BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB.
