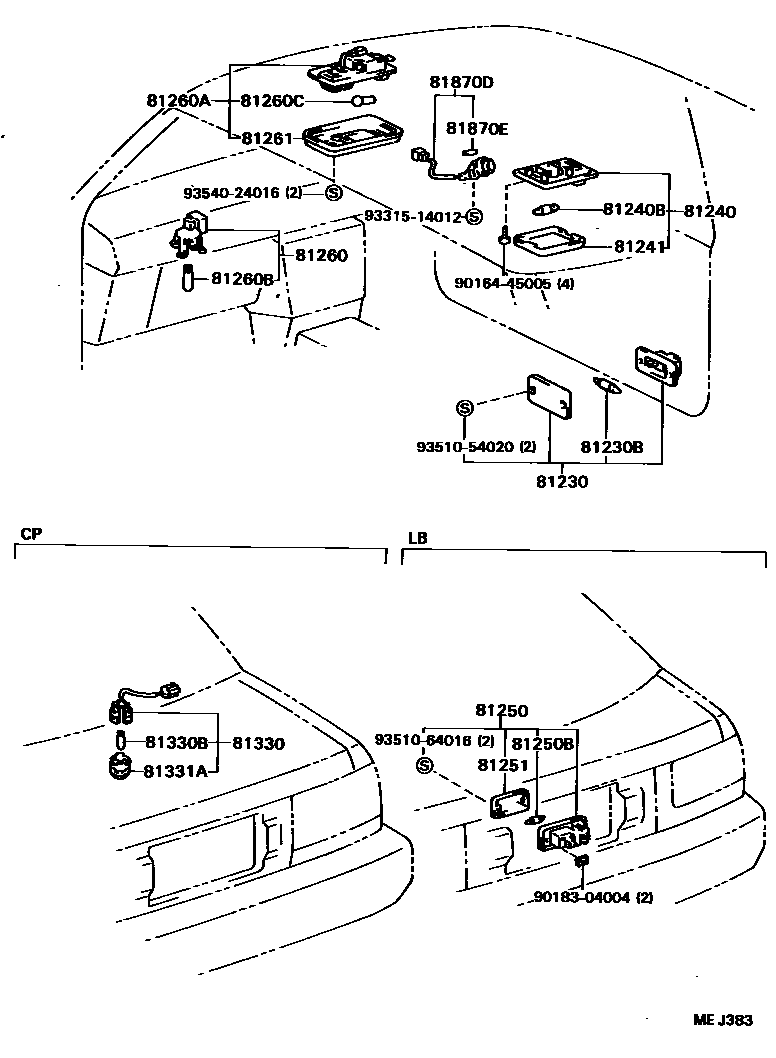

Toyota CELICA — INTERIOR LAMP
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81240LAMP ASSY, ROOM, NO.1
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM2#
DARK BEIGE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 10W
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
BLACK,TRIM2#
DARK BEIGE,TRIM4#
DEEP BLUE,TRIM8#
81250BBULB, ROOM LAMP, NO.2
12V 5W
81251LENS, ROOM LAMP, NO.2
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
SHADOW GRAY,TRIM2#
DEEP BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
12V 10W
81261LENS AND COVER, MAP LAMP
SHADOW GRAY,TRIM2#
DEEP BLUE,TRIM8#
DARK BEIGE,TRIM4#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81331ACOVER, LUGGAGE COMPARTMENT LAMP
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
12V 1.2W W/O SOCKET
9016445005
main90164-45005
9018304004
main90183-04004
9331514012
main93315-14012
9351054020
main93510-54020
9351064016
main93510-64016
9354024016
main93540-24016
24 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota CELICA
This section contains 24 genuine Toyota parts for the INTERIOR LAMP system of the Toyota CELICA. Key components include: LAMP ASSY, COURTESY, BULB(FOR COURTESY LAMP), LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1.
