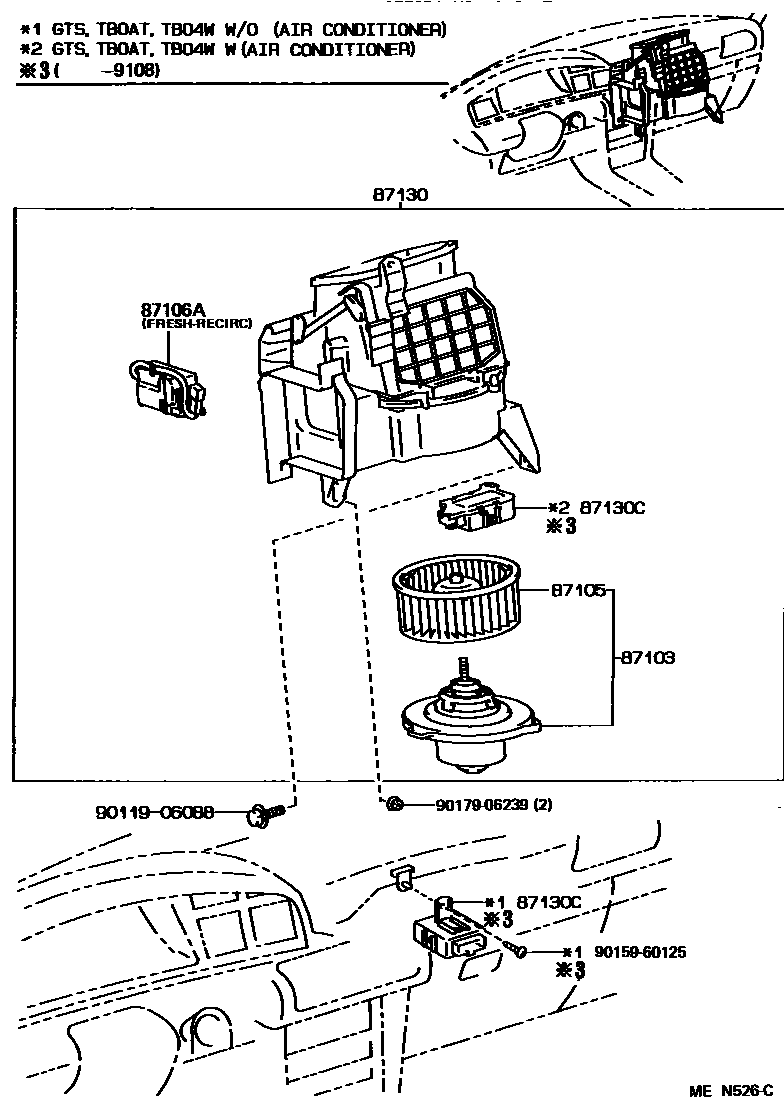

Toyota CELICA — HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1BLOWER 0002 1RADIATOR 0003 1RADIATOR 0004 1RADIATOR

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-20060iST18#198909-199309

main87103-20070iAT180198909-199008

87105FAN SUB-ASSY, HEATER BLOWER

main87105-20110iAT180,ST18#198909-199309

87106ASERVO SUB-ASSY, DAMPER

main87106-20130iAT180,ST18#..CP,LB198909-199309

MODE

main87106-20130iST184..CVT199108-199109

W(AUTOMATIC AIR CONDITIONER),MODE

main87106-20150iST18#..WIB198909-199108

AIR MIX

main87106-20150iST184..GT198909-199309

W(AUTOMATIC AIR CONDITIONER),AIR MIX

main87106-20170iAT180,ST18#198909-199309

FRESH-RECIRC

87130BLOWER ASSY, HEATER, FRONT

main87130-20460iST18#198909-199309

main87130-20470iAT180198909-199008

sub87130-20460

main87130-20480iST185198910-199004

EVP 2 PACKAGE OR W(AIR CONDITIONER)

main87130-20480iST184..GTS198909-199108

W(AIR CONDITIONER)

87130CRELAY, HEATER BLOWER MOTOR

main88630-20200iST18#..WIB198909-199108

9011906088

main90119-06088

9015960125

main90159-60125

9017906239

main90179-06239

8 parts on this diagram · 4 diagrams in section
