Toyota CELICA — FRONT SPRING & SHOCK ABSORBER

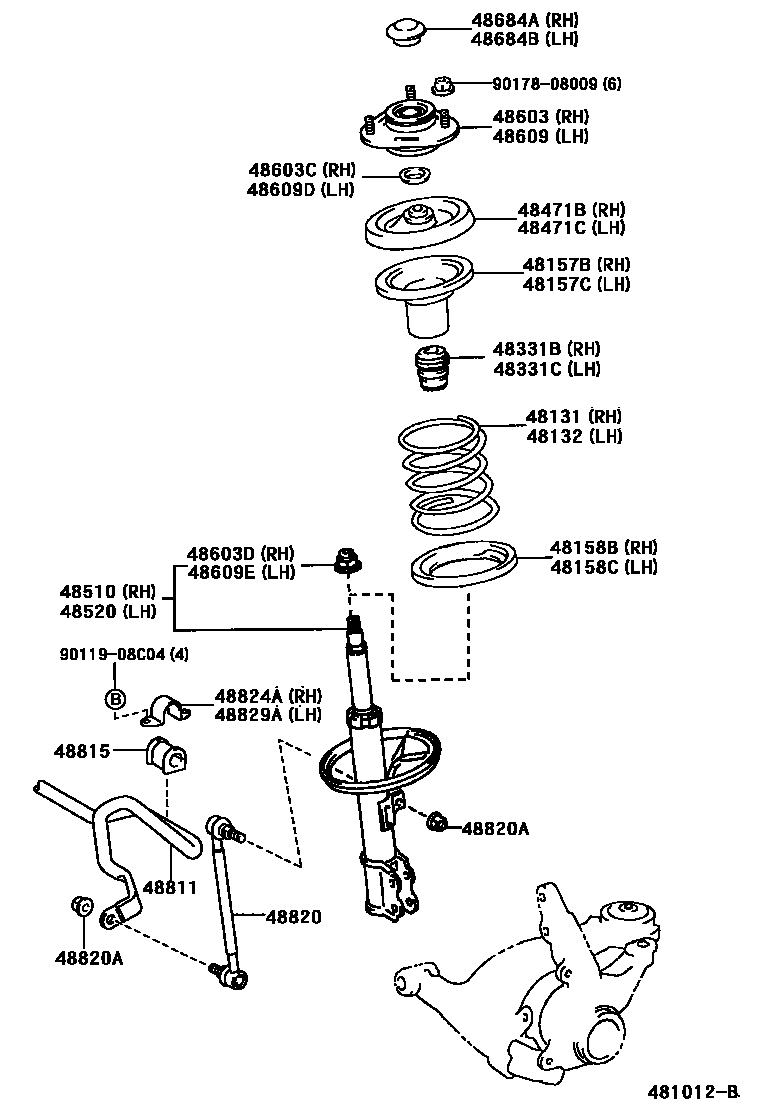

Parts diagram
48131SPRING, FRONT COIL, RH
main48131-2T290i199910-200008
L=298.5
main48131-2T300i199908-199910
L=305
main48131-2T370i200208-200509
main48131-2T380i200208-200509
48132SPRING, FRONT COIL, LH
main48131-2T290i199910-200008
L=298.5
main48131-2T300i199908-199910
L=305
main48131-2T370i200008-200208
main48131-2T380i200008-200208
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-47010i199908-200208
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-47010i199908-200208
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-47010i199908-200208
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
main48158-47010i199908-200208
48331BBUMPER, FRONT SPRING, RH
main48331-20150i199908-200208
48331CBUMPER, FRONT SPRING, LH
main48331-20150i199908-200208
48471BSEAT, FRONT COIL SPRING, UPPER RH
main48044-47010i199908-200208
48471CSEAT, FRONT COIL SPRING, UPPER LH
main48044-47010i199908-200208
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-29745i199908-199910
main48510-29755i199910-200008
sub48510-80071
main48510-29756i200008-200208
main48510-80072i200208-200406
MARK 48510-2B360
main48510-80221i200406-200508
MARK 48510-2B361
main48510-80325i200508-200509
MARK 48510-2B361
sub48510-80324
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-29455i199908-199910
main48520-29465i199910-200008
sub48520-29665
main48520-29466i200008-200208
main48520-29675i200208-200406
main48520-80047i200406-200508
MARK 48520-2B361
main48520-80102i200508-200509
MARK 48520-2B361
sub48520-80101
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-20470i199908-200012
main48609-20471i200208-200509
48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
main90303-22002i200205-200208
main90303-22049i199908-200205
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
main94182-11400i200208-200509
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-20470i199908-200012
main48609-20471i200012-200208
48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
main90303-22002i200205-200208
main90303-22049i199908-200205
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
main94182-11400i200208-200509
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
main48684-12070i199908-200208
main48684-52010i200212-200509
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
main48684-12070i199908-200208
main48684-52010i200212-200509
48811BAR, STABILIZER, FRONT
main48811-2B060i199908-200208
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-20280×2i199908-200208
48820LINK ASSY, FRONT STABILIZER
main48820-32010×2i199908-200208
48820ANUT(FOR FRONT STABILIZER LINK)
main90179-10183×4i199908-200208
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48824-26210i199908-200208
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-26210i199908-200208
9011908C04
main90119-08C04
9017808009
main90178-08009
9161160822
main91611-60822

29 parts on this diagram · 1 diagram in section
