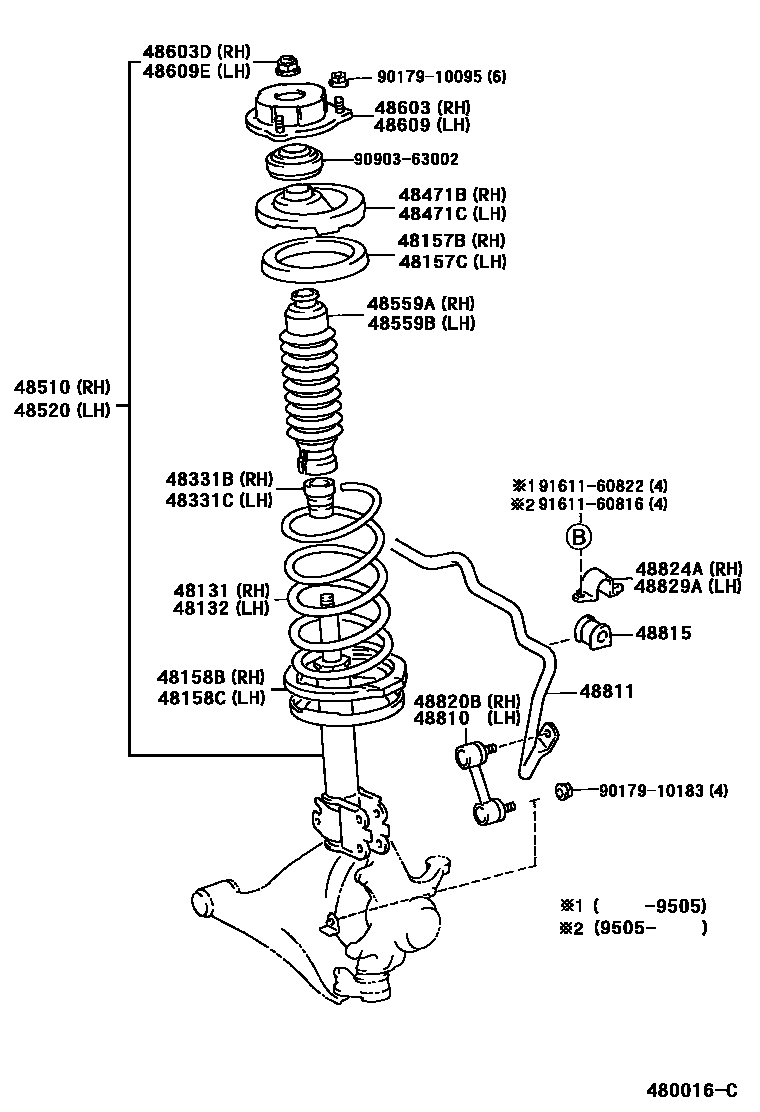

Toyota CELICA — FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
W(SUPER STRUT SUSPENSION)
48132SPRING, FRONT COIL, LH
W(SUPER STRUT SUSPENSION)
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
W(SUPER STRUT SUSPENSION)
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
W(SUPER STRUT SUSPENSION)
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
W(SUPER STRUT SUSPENSION)
48471CSEAT, FRONT COIL SPRING, UPPER LH
W(SUPER STRUT SUSPENSION)
48510ABSORBER ASSY, SHOCK, FRONT RH
sub48510-80219
sub48510-80219
W(SUPER STRUT SUSPENSION)
W(SUPER STRUT SUSPENSION)
48520ABSORBER ASSY, SHOCK, FRONT LH
sub48520-80045
sub48520-80045
W(SUPER STRUT SUSPENSION)
W(SUPER STRUT SUSPENSION)
48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
W(SUPER STRUT SUSPENSION)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
W(SUPER STRUT SUSPENSION)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
W(SUPER STRUT SUSPENSION)
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
W(SUPER STRUT SUSPENSION)
48810LINK ASSY, FRONT STABILIZER, LH
W(SUPER STRUT SUSPENSION)
48811BAR, STABILIZER, FRONT
W(SUPER STRUT SUSPENSION)
48815BUSH, FRONT STABILIZER BAR, NO.1
W(SUPER STRUT SUSPENSION)
48820BLINK ASSY, FRONT STABILIZER, RH
W(SUPER STRUT SUSPENSION)
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9017910095
main90179-10095
9017910183
main90179-10183
9090363002
main90903-63002
9161160816
main91611-60816
9161160822
main91611-60822
29 parts on this diagram · 2 diagrams in section
