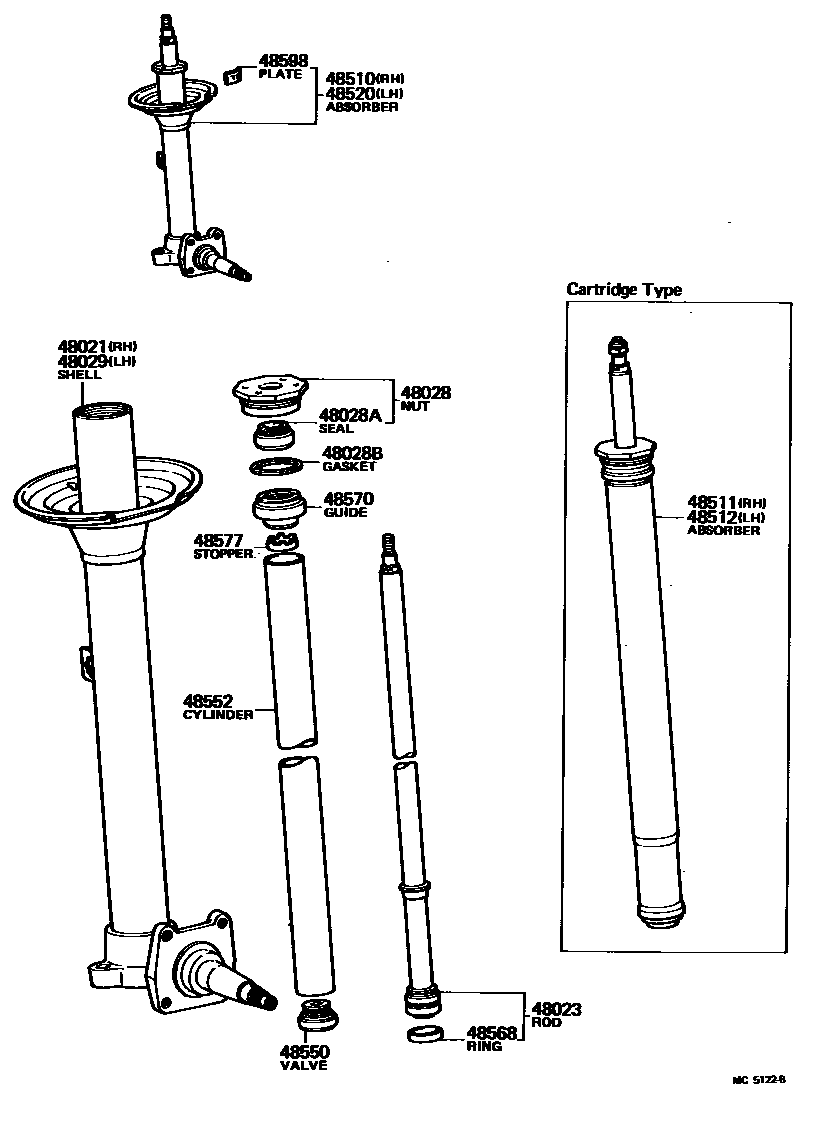

Toyota CELICA — FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH

main48021-14040iTA40..LT,ST197708-198107

13IN

main48021-14050iTA40..GT197708-198107

14IN

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-14033×2iTA40..EUG197708-197803

14IN,AUSTRIA SPEC

main48023-14034×2iTA40..GT197803-197808

14IN,AUSTRIA SPEC

main48023-14035×2iRA40,TA40..GT198008-198107

14IN

main48023-14043×2iTA40..LT,ST197708-197803

13IN

main48023-14044×2iTA40..LT,ST197803-197808

13IN

main48023-14070×2iTA40..LT,ST197808-198008

13IN

main48023-14071×2iTA40..LT,ST198008-198107

13IN

main48023-14080×2iRA40..LT,ST,XT197808-198008

14IN

main48023-14081×2iRA40..LT,ST,XT198008-198107

14IN

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-14011×2iRA40,TA40197708-198107

sub48028-14012

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-22001×2iRA40,TA40197708-198107

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-43206×2iRA40,TA40197708-198107

48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH

main48021-14040iTA40..LT,ST197708-198107

13IN

main48021-14050iTA40..GT197708-198107

14IN

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-14101iTA40..LT,ST197708-197803

13IN

main48510-14102iTA40..LT,ST197803-197808

13IN

sub48510-14103

main48510-14121iTA40..GT197708-197803

14IN,AUSTRIA SPEC

main48510-14122iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197803-197808

14IN,AUSTRIA SPEC

main48510-14123iRA40,TA40..GT198008-198107

14IN

main48510-14130iTA40..LT,ST197808-198008

13IN

main48510-14131iTA40..LT,ST198008-198107

13IN

main48510-14140iTA40..EUG197808-197903

14IN,AUSTRIA SPEC

main48510-14141iRA40..LT,ST,XT198008-198107

14IN

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-14090iTA40..LT,ST197708-197808

13IN

main48511-14100iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197708-197808

14IN

main48511-14110iTA40..LT,ST197808-198008

13IN

main48511-14120iRA40..LT,ST,XT197808-198008

14IN

sub48511-20080

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-14090iTA40..LT,ST197708-197808

13IN

main48511-14100iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197708-197808

14IN,AUSTRIA SPEC

main48511-14110iTA40..LT,ST197808-198008

13IN

main48511-14120iRA40..LT,ST,XT197808-198008

14IN

sub48511-20080

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-14101iTA40..LT,ST197708-197803

13IN

main48510-14102iTA40..LT,ST197803-197808

13IN

sub48510-14103

main48510-14121iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197708-197803

14IN

main48510-14122iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197803-197808

14IN,AUSTRIA SPEC

main48510-14123iRA40,TA40..GT198008-198107

14IN

main48510-14130iTA40..LT,ST197808-198008

13IN

main48510-14131iTA40..LT,ST198008-198107

13IN

main48510-14140iTA40..EUG197808-197903

14IN,AUSTRIA SPEC

main48510-14141iRA40..LT,ST,XT198008-198107

14IN

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-14012×2iRA40,TA40197708-197808

main48550-14040×2iRA40,TA40..LT,ST,XT197808-198107

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-14010×2iTA40..LT,ST197708-198107

13IN

main48552-14021×2iTA40..GT197708-198107

14IN

48568RING, SHOCK ABSORBER PISTON

main48568-14010×2iRA40,TA40197708-197803

main48568-22020×2iRA40,TA40197803-198107

48570GUIDE ASSY, SHOCK ABSORBER ROD

main48022-14010×2iRA40,TA40197708-198107

sub48022-22040

sub90430-42001

48577STOPPER, SHOCK ABSORBER REBOUND

main48579-14011×2iRA40,TA40197708-198107

48598PLATE, ABSORBER NAME

main48598-14201×2iTA40..LT,ST197708-197803

13IN

main48598-14202×2iTA40..LT,ST197803-197808

13IN

main48598-14221×2iTA40..GT197708-197803

14IN,AUSTRIA SPEC

main48598-14222×2iTA40..EUG197803-197808

14IN

main48598-14223×2iRA40,TA40..GT198008-198107

14IN

main48598-14250×2iTA40..LT,ST197808-198008

13IN

main48598-14251×2iTA40..LT,ST198008-198107

13IN

main48598-14260×2iTA40..EUG197808-197903

14IN,AUSTRIA SPEC

main48598-14261×2iRA40..LT,ST,XT198008-198107

14IN

16 parts on this diagram · 2 diagrams in section
