Toyota CELICA — FRONT SEAT & SEAT TRACK

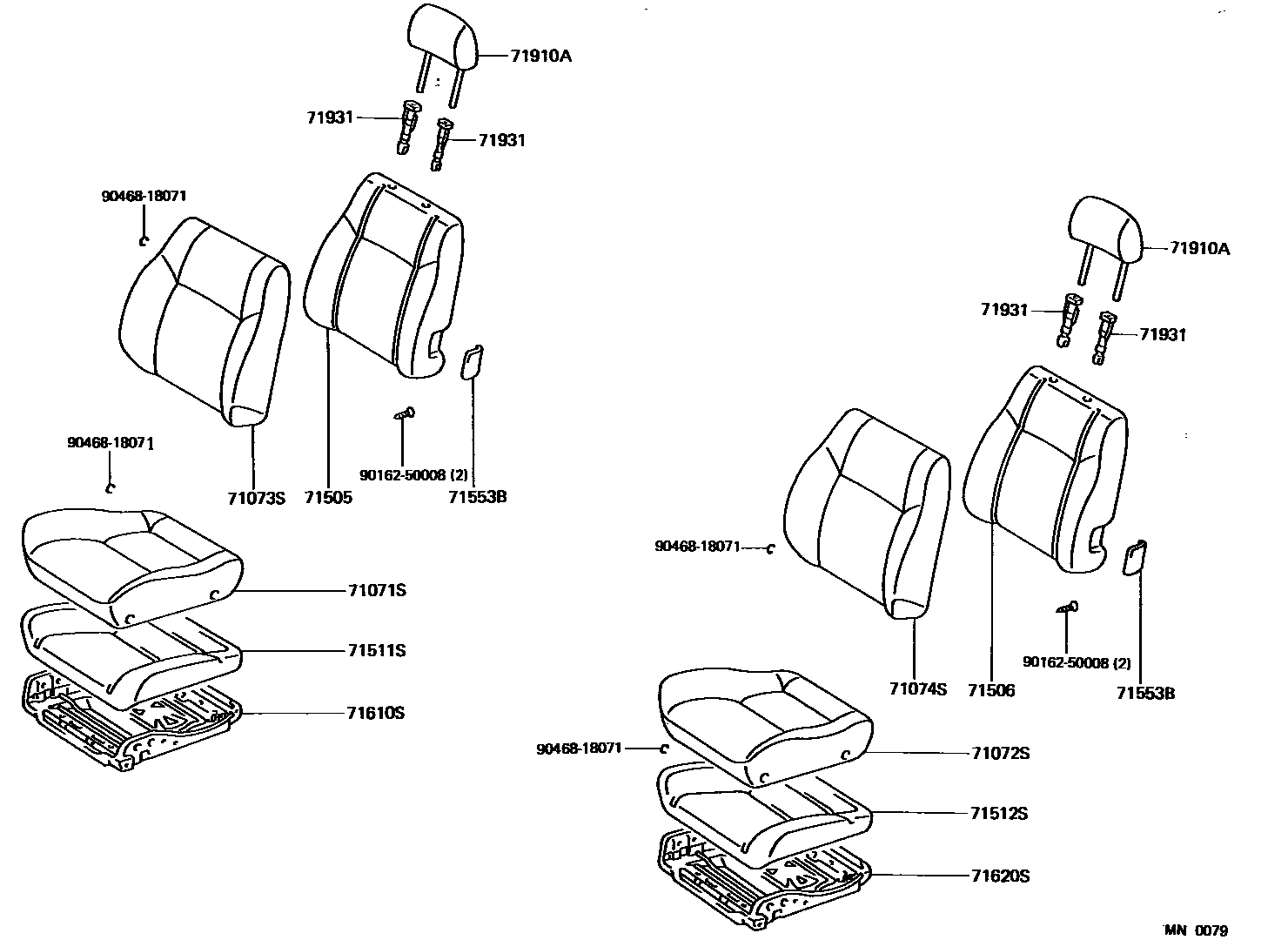

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-2D600-02i198909-199008
RED,TRIM3#
sub71071-2D601
main71071-2D600-03i198909-199009
SHADOW GRAY,TRIM1#
sub71071-2D601
main71071-2D600-04i198909-199009
DARK BLUE,TRIM8#
sub71071-2D601
main71071-2D600-16i199008-199009
CHOCOLATE BROWN,TRIM4#
sub71071-2D601
main71071-2D601-03i199009-199109
SHADOW GRAY,TRIM1#
main71071-2D601-04i199009-199108
DARK BLUE,TRIM8#
main71071-2D601-06i199009-199108
CHOCOLATE BROWN,TRIM4#
main71071-2D602-B0i199108-199309
SHADOW GRAY,TRIM1#
main71071-2D602-J0i199108-199309
DARK BLUE,TRIM8#
main71071-2D610-02i198909-199008
RED,TRIM3#
main71071-2D610-03i198909-199108
SHADOW GRAY,TRIM1#
main71071-2D610-04i198909-199108
DARK BLUE,TRIM8#
main71071-2D610-16i199008-199108
CHOCOLATE BROWN,TRIM4#
main71071-2D611-B0i199108-199309
SHADOW GRAY,TRIM1#
main71071-2D611-J0i199108-199309
DARK BLUE,TRIM8#
main71071-2D620-02i198909-199008
W(LEATHER SEAT),RED,TRIM3#
main71071-2D620-03i198909-199108
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71071-2D620-04i198909-199108
W(LEATHER SEAT),DARK BLUE,TRIM8#
main71071-2D620-06i199008-199108
W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4#
main71071-2D621-B0i199108-199309
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71071-2D621-J0i199108-199309
W(LEATHER SEAT),DARK BLUE,TRIM8#
main71071-2D640-02i198909-199008
RED,TRIM3#
main71071-2D640-03i198909-199008
SHADOW GRAY,TRIM1#
main71071-2D640-04i198909-199008
DARK BLUE,TRIM8#
main71071-2G040-03i199008-199108
SHADOW GRAY,TRIM1#
main71071-2G040-04i199008-199108
DARK BLUE,TRIM8#
main71071-2G040-06i199008-199108
CHOCOLATE BROWN,TRIM4#
main71071-2G041-B0i199108-199309
SHADOW GRAY,TRIM1#
main71071-2G041-J0i199108-199309
DARK BLUE,TRIM8#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-2D602-B0i199109-199309
SHADOW GRAY,TRIM1#
main71071-2D611-B0i199108-199309
SHADOW GRAY,TRIM1#
main71071-2D611-J0i199108-199309
DARK BLUE,TRIM8#
main71072-2D080-03i199006-199009
SHADOW GRAY,TRIM1#
sub71072-2D081
main71072-2D081-03i199009-199109
SHADOW GRAY,TRIM1#
sub71071-2D601
main71072-2D130-02i198909-199008
W(WALK IN TYPE),RED,TRIM3#
sub71071-2D590
main71072-2D130-03i198909-199108
W(WALK IN TYPE),SHADOW GRAY,TRIM1#
sub71071-2D590
main71072-2D130-04i198909-199108
W(WALK IN TYPE),DARK BLUE,TRIM8#
sub71071-2D590
main71072-2D130-16i199008-199108
W(WALK IN TYPE),CHOCOLATE BROWN,TRIM4#
sub71071-2D590
main71072-2D131-B0i199108-199309
W(WALK IN TYPE),SHADOW GRAY,TRIM1#
main71072-2D131-J0i199108-199309
W(WALK IN TYPE),DARK BLUE,TRIM8#
main71072-2D160-02i198909-199008
RED,TRIM3#
sub71071-2D610
main71072-2D160-03i198909-199108
SHADOW GRAY,TRIM1#
sub71071-2D610
main71072-2D160-04i198909-199108
DARK BLUE,TRIM8#
sub71071-2D610
main71072-2D160-16i199008-199108
CHOCOLATE BROWN,TRIM4#
sub71071-2D610
main71072-2D170-02i198909-199008
RED,TRIM3#
sub71072-2D171
main71072-2D170-03i198909-199009
SHADOW GRAY,TRIM1#
sub71072-2D171
main71072-2D170-04i198909-199009
DARK BLUE,TRIM8#
sub71072-2D171
main71072-2D170-16i199008-199009
CHOCOLATE BROWN,TRIM4#
sub71072-2D171
main71072-2D171-03i199009-199108
SHADOW GRAY,TRIM1#
sub71071-2D521
main71072-2D171-04i199009-199108
DARK BLUE,TRIM8#
sub71071-2D521
main71072-2D171-06i199009-199108
CHOCOLATE BROWN,TRIM4#
sub71071-2D521
main71072-2D172-B0i199108-199309
SHADOW GRAY,TRIM1#
main71072-2D172-J0i199108-199309
DARK BLUE,TRIM8#
main71072-2D180-02i198909-199008
W(LEATHER SEAT),RED,TRIM3#
sub71071-2D550
main71072-2D180-03i198909-199108
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
sub71071-2D550
main71072-2D180-04i198909-199108
W(LEATHER SEAT),DARK BLUE,TRIM8#
sub71071-2D550
main71072-2D180-06i199008-199108
W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4#
sub71071-2D550
main71072-2D181-B0i199108-199309
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71072-2D181-J0i199108-199309
W(LEATHER SEAT),DARK BLUE,TRIM8#
main71072-2D200-02i198909-199008
RED,TRIM3#
sub71071-2D580
main71072-2D200-03i198909-199008
SHADOW GRAY,TRIM1#
sub71071-2D580
main71072-2D200-04i198909-199008
DARK BLUE,TRIM8#
sub71071-2D580
main71072-2D440-03i199008-199108
SHADOW GRAY,TRIM1#
sub71071-2G030
main71072-2D440-04i199008-199108
DARK BLUE,TRIM8#
sub71071-2G030
main71072-2D440-06i199008-199108
CHOCOLATE BROWN,TRIM4#
sub71071-2G030
main71072-2D441-B0i199108-199309
SHADOW GRAY,TRIM1#
main71072-2D441-J0i199108-199309
DARK BLUE,TRIM8#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-2D500-02i198909-199008
RED,TRIM3#
sub71073-2D502
main71073-2D500-03i198909-199009
SHADOW GRAY,TRIM1#
sub71073-2D502
main71073-2D500-04i198909-199009
DARK BLUE,TRIM8#
sub71073-2D502
main71073-2D500-16i199008-199009
CHOCOLATE BROWN,TRIM4#
sub71073-2D502
main71073-2D502-03i199009-199109
SHADOW GRAY,TRIM1#
main71073-2D502-04i199009-199108
DARK BLUE,TRIM8#
main71073-2D502-06i199009-199108
CHOCOLATE BROWN,TRIM4#
main71073-2D503-B0i199108-199309
SHADOW GRAY,TRIM1#
main71073-2D503-J0i199108-199309
DARK BLUE,TRIM8#
main71073-2D520-02i198909-199008
W(LEATHER SEAT),RED,TRIM3#
main71073-2D520-03i198909-199309
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71073-2D520-04i198909-199309
W(LEATHER SEAT),DARK BLUE,TRIM8#
main71073-2D520-06i199008-199108
W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4#
main71073-2D530-02i198909-199008
RED,TRIM3#
sub71073-2D531
main71073-2D530-03i198909-199008
SHADOW GRAY,TRIM1#
sub71073-2D531
main71073-2D530-04i198909-199008
DARK BLUE,TRIM8#
sub71073-2D531
main71073-2D531-03i199008-199108
SHADOW GRAY,TRIM1#
main71073-2D531-04i199008-199108
DARK BLUE,TRIM8#
main71073-2D531-06i199008-199108
CHOCOLATE BROWN,TRIM4#
main71073-2D532-B0i199108-199309
SHADOW GRAY,TRIM1#
main71073-2D532-J0i199108-199309
DARK BLUE,TRIM8#
main71073-2D580-03i199008-199108
SHADOW GRAY,TRIM1#
main71073-2D580-04i199008-199108
DARK BLUE,TRIM8#
main71073-2D580-06i199008-199108
CHOCOLATE BROWN,TRIM4#
main71073-2D581-B0i199108-199309
SHADOW GRAY,TRIM1#
main71073-2D581-J0i199108-199309
DARK BLUE,TRIM8#
main71073-2D730-02i198909-199008
RED,TRIM3#
main71073-2D730-03i198909-199008
SHADOW GRAY,TRIM1#
main71073-2D730-04i198909-199008
DARK BLUE,TRIM8#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-2D503-B0i199108-199309
SHADOW GRAY,TRIM1#
main71073-2D503-J0i199108-199309
DARK BLUE,TRIM8#
main71073-2D532-B0i199108-199309
SHADOW GRAY,TRIM1#
main71073-2D532-J0i199108-199309
DARK BLUE,TRIM8#
main71074-2D200-02i198909-199008
RED,TRIM3#
sub71073-2D500
sub71074-2D202
main71074-2D200-03i198909-199009
SHADOW GRAY,TRIM1#
sub71073-2D500
sub71074-2D202
main71074-2D200-04i198909-199009
DARK BLUE,TRIM8#
sub71073-2D500
sub71074-2D202
main71074-2D200-16i199008-199009
CHOCOLATE BROWN,TRIM4#
sub71073-2D500
sub71074-2D202
main71074-2D202-03i199009-199109
SHADOW GRAY,TRIM1#
sub71073-2D502
main71074-2D202-04i199009-199108
DARK BLUE,TRIM8#
sub71073-2D502
main71074-2D202-06i199009-199108
CHOCOLATE BROWN,TRIM4#
sub71073-2D502
main71074-2D220-02i198909-199008
W(LEATHER SEAT),RED,TRIM3#
main71074-2D220-03i198909-199108
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71074-2D220-04i198909-199108
W(LEATHER SEAT),DARK BLUE,TRIM8#
main71074-2D220-06i199008-199108
W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4#
main71074-2D221-B0i199108-199309
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71074-2D221-J0i199108-199309
W(LEATHER SEAT),DARK BLUE,TRIM8#
main71074-2D230-02i198909-199008
RED,TRIM3#
sub71073-2D530
sub71074-2D231
main71074-2D230-03i198909-199008
SHADOW GRAY,TRIM1#
sub71073-2D530
sub71074-2D231
main71074-2D230-04i198909-199008
DARK BLUE,TRIM8#
sub71073-2D530
sub71074-2D231
main71074-2D231-03i199008-199108
SHADOW GRAY,TRIM1#
sub71073-2D531
main71074-2D231-04i199008-199108
DARK BLUE,TRIM8#
sub71073-2D531
main71074-2D231-06i199008-199108
CHOCOLATE BROWN,TRIM4#
sub71073-2D531
main71074-2D270-03i199008-199108
SHADOW GRAY,TRIM1#
sub71073-2D580
main71074-2D270-04i199008-199108
DARK BLUE,TRIM8#
sub71073-2D580
main71074-2D270-06i199008-199108
CHOCOLATE BROWN,TRIM4#
sub71073-2D580
main71074-2D271-B0i199108-199309
SHADOW GRAY,TRIM1#
main71074-2D271-J0i199108-199309
DARK BLUE,TRIM8#
main71074-2D400-02i198909-199008
RED,TRIM3#
sub71073-2D730
main71074-2D400-03i198909-199008
SHADOW GRAY,TRIM1#
sub71073-2D730
main71074-2D400-04i198909-199008
DARK BLUE,TRIM8#
sub71073-2D730
main71074-2D410-02i198909-199008
W(SPORTS SEAT & POWER SEAT),RED,TRIM3#
sub71073-2D690
main71074-2D410-03i198909-199008
W(SPORTS SEAT & POWER SEAT),SHADOW GRAY,TRIM1#
sub71073-2D690
main71074-2D410-04i198909-199008
W(SPORTS SEAT & POWER SEAT),DARK BLUE,TRIM8#
sub71073-2D690
main71074-2D411-03i199008-199108
W(SPORTS SEAT & POWER SEAT),SHADOW GRAY,TRIM1#
sub71073-2D590
main71074-2D411-04i199008-199108
W(SPORTS SEAT & POWER SEAT),DARK BLUE,TRIM8#
sub71073-2D590
main71074-2D411-06i199008-199108
W(SPORTS SEAT & POWER SEAT),CHOCOLATE BROWN,TRIM4#
sub71073-2D590
main71074-2D412-B0i199108-199309
W(SPORTS SEAT & POWER SEAT),SHADOW GRAY,TRIM1#
main71074-2D412-J0i199108-199309
W(SPORTS SEAT & POWER SEAT),DARK BLUE,TRIM8#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-20130i198909-199309
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71505-20130i198909-199309
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-20580i198909-199109
main71511-20581i199108-199309
main71511-20590i198909-199108
W(LEATHER SEAT)
main71511-20591i199108-199309
W(LEATHER SEAT)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-20580i198909-199109
main71511-20581i199108-199309
main71511-20590i198909-199108
W(LEATHER SEAT)
main71511-20591i199108-199309
W(LEATHER SEAT)
71553BPAD, FRONT SEATBACK, B
main71553-20190i198909-199309
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-20470i198909-199309
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71610-20460i198909-199309
W(WALK IN TYPE)
main71610-20460i198909-199309
main71610-20470i198909-199309
71910AHEADREST ASSY, FRONT SEAT
main71910-2B310-02i198909-199008
RED,TRIM3#
main71910-2B310-03i198909-199309
SHADOW GRAY,TRIM1#
main71910-2B310-04i198909-199309
DARK BLUE,TRIM8#
main71910-2B310-16i199008-199108
CHOCOLATE BROWN,TRIM4#
main71910-2B320-02i198909-199008
RED,TRIM3#
sub71910-2B321
main71910-2B320-03i198909-199009
SHADOW GRAY,TRIM1#
sub71910-2B321
main71910-2B320-04i198909-199009
DARK BLUE,TRIM8#
sub71910-2B321
main71910-2B320-16i199008-199009
CHOCOLATE BROWN,TRIM4#
sub71910-2B321
main71910-2B321-03i199009-199309
SHADOW GRAY,TRIM1#
main71910-2B321-04i199009-199309
DARK BLUE,TRIM8#
main71910-2B321-06i199009-199108
CHOCOLATE BROWN,TRIM4#
main71910-2B340-02i198909-199008
W(LEATHER SEAT),RED,TRIM3#
main71910-2B340-03i198909-199309
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71910-2B340-04i198909-199309
W(LEATHER SEAT),DARK BLUE,TRIM8#
main71910-2B340-06i199008-199108
W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4#
main71910-2B370-03i199008-199108
SHADOW GRAY,TRIM1#
main71910-2B370-04i199008-199108
DARK BLUE,TRIM8#
main71910-2B370-06i199008-199108
CHOCOLATE BROWN,TRIM4#
main71910-2B371-B0i199108-199309
SHADOW GRAY,SHADOW GRAY,TRIM1#
main71910-2B371-J1i199108-199309
DARK BLUE,TRIM8#
main71910-2B490-02i198909-199008
RED,TRIM3#
main71910-2B490-03i198909-199008
SHADOW GRAY,TRIM1#
main71910-2B490-04i198909-199008
DARK BLUE,TRIM8#
71931SUPPORT, FRONT SEAT HEADREST
main71930-20110-02i198909-199008
W(LOCK),W(LEATHER SEAT),RED,TRIM3#
sub71930-20111
main71930-20110-02i198909-199008
W(LOCK),RED,TRIM3#
sub71930-20111
main71930-20110-03i198909-199009
W(LOCK),SHADOW GRAY,TRIM1#
sub71930-20111
main71930-20110-03i198909-199009
W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1#
sub71930-20111
main71930-20110-04i198909-199009
W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8#
sub71930-20111
main71930-20110-04i198909-199009
W(LOCK),DARK BLUE,TRIM8#
sub71930-20111
main71930-20110-26i199008-199009
W(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4#
sub71930-20111
main71930-20110-26i199008-199009
W(LOCK),CHOCOLATE BROWN,TRIM4#
sub71930-20111
main71930-20111-03i199009-199309
W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71930-20111-03i199009-199309
W(LOCK),SHADOW GRAY,TRIM1#
main71930-20111-04i199009-199309
W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8#
main71930-20111-04i199009-199309
W(LOCK),DARK BLUE,TRIM8#
main71930-20111-06i199009-199108
W(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4#
main71930-20111-06i199009-199108
W(LOCK),CHOCOLATE BROWN,TRIM4#
main71930-22040-13i198909-199309
W(LOCK),SHADOW GRAY,TRIM1#
sub71930-22040
sub71930-10070
main71930-22040-14i198909-199309
W(LOCK),DARK BLUE,TRIM8#
sub71930-22040
sub71930-10070
main71930-22040-22i198909-199008
W(LOCK),RED,TRIM3#
sub71930-22040
sub71930-10070
main71930-22040-26i199008-199108
W(LOCK),CHOCOLATE BROWN,TRIM4#
sub71930-22040
sub71930-10070
main71931-20060-02i198909-199008
W/O(LOCK),RED,TRIM3#
main71931-20060-02i198909-199008
W/O(LOCK),W(LEATHER SEAT),RED,TRIM3#
main71931-20060-03i198909-199309
W/O(LOCK),SHADOW GRAY,TRIM1#
main71931-20060-03i198909-199309
W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71931-20060-04i198909-199309
W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8#
main71931-20060-04i198909-199309
W/O(LOCK),DARK BLUE,TRIM8#
main71931-20060-26i199008-199108
W/O(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4#
main71931-20060-26i199008-199108
W/O(LOCK),CHOCOLATE BROWN,TRIM4#
main71931-22010-12i198909-199008
W/O(LOCK),RED,TRIM3#
sub71931-22010
sub71931-28030
main71931-22010-13i198909-199309
W/O(LOCK),SHADOW GRAY,TRIM1#
sub71931-22010
sub71931-28030
main71931-22010-14i198909-199309
W/O(LOCK),DARK BLUE,TRIM8#
sub71931-22010
sub71931-28030
main71931-22010-26i199008-199108
W/O(LOCK),CHOCOLATE BROWN,TRIM4#
sub71931-22010
sub71931-28030
9016250008
main90162-50008
9046818071
main90468-18071

15 parts on this diagram · 3 diagrams in section
