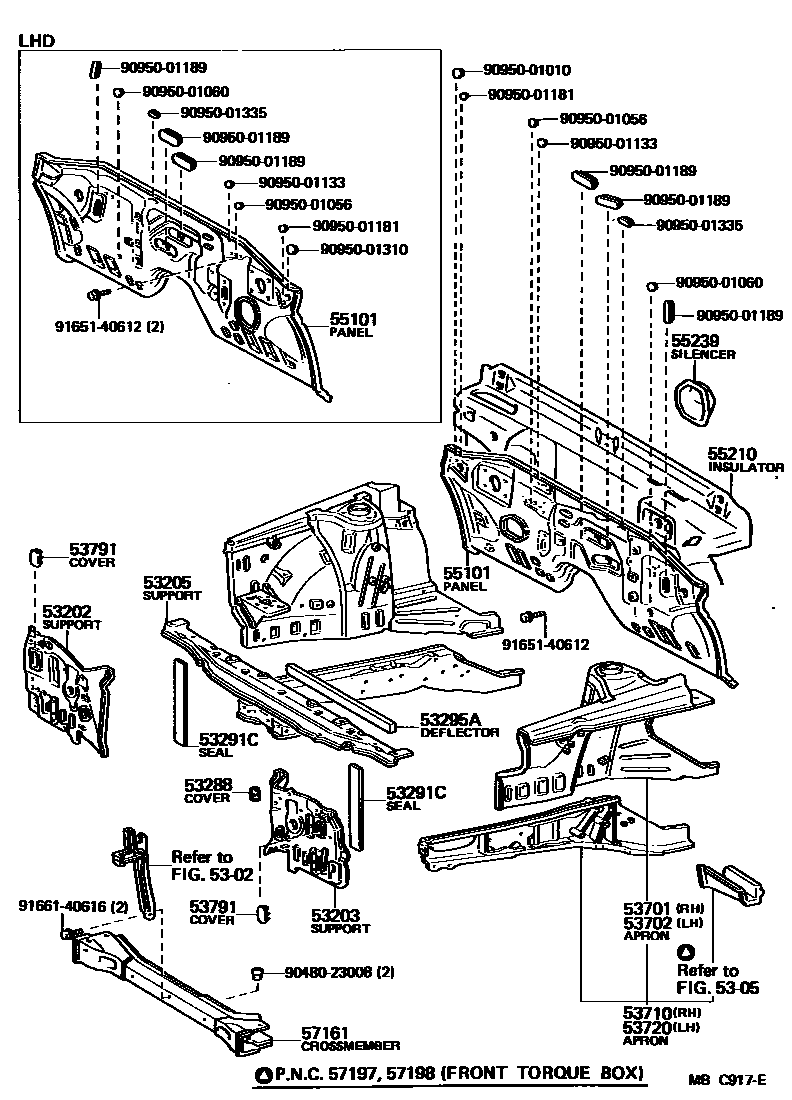

Toyota CELICA — FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

5302

5305

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-14150iAA63,RA6#,SA63,TA60198108-198507

sub53202-14180

main53211-14160iMA61..ARL,GEN,SA,SAA198408-198410

main53211-14170iMA61..EUR198408-198410

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-14200iRA63,SA63,TA60198108-198507

main53203-14210iRA60,61,65198108-198507

main53203-14240iAA63198308-198507

main53212-14140iMA61..ARL,GEN,SA,SAA198408-198410

main53212-14150iMA61..EUR198408-198410

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-14050iAA63,RA6#,SA63,TA60198108-198507

sub53205-14080

main53205-14060iMA61198112-198408

main53205-14070iMA61..EUR198408-198410

53288COVER, POWER STEERING PIPE HOLE

main53288-14050iAA63,RA60;RA61..RHD;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)198108-198507

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-14020×2iRA61..RHD;AA63,RA60,65;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)198108-198507

53295DEFLECTOR, RADIATOR LOWER AIR

main53295-14030iMA61198112-198512

53295ADEFLECTOR, RADIATOR UPPER AIR

main53293-14040iTA60..5F198108-198308

main53293-14050iTA60..3FC198108-198308

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-14914iRA63,TA60198108-198210

main53701-14915iRA60,61..ARL,EUR,GEN198108-198210

main53701-14917iRA60,61..ME,SAA198108-198507

main53701-14918iMA61..EUG198112-198210

main53701-14919iMA61..SAA198208-198512

main53701-14924iAA63,RA63,65,SA63,TA60198210-198507

sub53701-14922

main53701-14925iRA60,61..ARL,EUR,GEN198210-198507

main53701-14926iMA61..ARL,EUR,GEN,SA198210-198512

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-14914iRA63198108-198210

main53702-14915iRA60,61..ARL,EUR,GEN198108-198210

main53702-14916iRA60,61..ME,SAA198108-198507

main53702-14917iTA60198108-198210

main53702-14918iMA61..EUG198112-198210

main53702-14919iMA61..SAA198208-198512

main53702-14922iAA63,RA63,65,SA63198210-198507

main53702-14926iRA60,61..ARL,EUR,GEN198210-198507

main53702-14927iTA60198210-198507

main53702-14928iMA61..ARL,EUR,GEN,SA198210-198512

53710APRON ASSY, W/FRONT SIDE MEMBER, RH

main53710-14903iRA63,TA60198108-198210

main53710-14904iRA60,61..ARL,EUR,GEN198108-198210

main53710-14906iRA60,61..ME,SAA198108-198507

main53710-14907iMA61..EUG198112-198210

main53710-14908iMA61..SAA198208-198512

main53710-14911iAA63,RA63,65,SA63,TA60198210-198507

main53710-14912iRA60,61..ARL,EUR,GEN198210-198507

main53710-14913iMA61..ARL,EUR,GEN,SA198210-198512

53720APRON ASSY, W/FRONT SIDE MEMBER, LH

main53720-14903iRA63198108-198210

main53720-14904iRA60,61..ARL,EUR,GEN198108-198210

main53720-14905iRA60,61..ME,SAA198108-198507

main53720-14906iTA60198108-198210

main53720-14907iMA61..EUG198112-198210

main53720-14908iMA61..SAA198208-198512

main53720-14914iAA63,RA63,65,SA63198210-198507

main53720-14915iRA60,61..ARL,EUR,GEN198210-198507

main53720-14916iTA60198210-198507

main53720-14917iMA61..EUR198210-198512

main53720-14919iMA61..ARL,GEN,SA198308-198512

53791COVER, COOL AIR INTAKE HOLE

main53791-14010×2iRA61..RHD;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA);AA63,RA60,63,65,SA63,TA60198108-198507

55101PANEL SUB-ASSY, DASH

main55101-14912iRA60,61..LHD198108-198305

main55101-14913iRA63,TA60..LHD198108-198305

main55101-14915iRA63..RHD198108-198303

main55101-14917iRA60..ARL198108-198303

main55101-14918iRA60,61..RHD..(EUR,GEN)198108-198303

main55101-14919iMA61..LHD198112-198305

main55101-14922iSA63198308-198408

main55101-14923iRA65198408-198507

main55101-14924iAA63,RA63,TA60..LHD198305-198507

main55101-14927iRA60,61..LHD198305-198507

main55101-14929iRA60..ARL198303-198308

main55101-14930iRA60,61..RHD..(EUR,GEN)198303-198507

main55101-14931iMA61..LHD198305-198512

main55101-14932iRA63..RHD198303-198308

main55101-24020iMA61..RHD198112-198303

main55101-24021iMA61..RHD198303-198512

55210INSULATOR ASSY, DASH PANEL

main55210-14230iRA60,61..LHD198108-198507

main55210-14250iRA63,TA60..LHD198108-198507

main55210-14270iRA6#,SA63..RHD198108-198507

main55210-14290iAA63,MA61..RHD198112-198512

main55210-14310iMA61..LHD..TWC198112-198512

main55210-14320iAA63..LHD198308-198507

sub55210-14330

main55210-14340iMA61..5F..SDZ198308-198512

main55210-14350iMA61..4FC..SDZ198308-198512

55239SILENCER, STEERING COLUMN HOLE COVER

main55212-14060iAA63,MA61,RA6#,SA63,TA60198108-198512

57161CROSSMEMBER, FRONT

main57104-14050iRA6#,TA60198108-198308

main57104-14060iAA63,RA6#,SA63,TA60198308-198507

main57104-14070iMA61198112-198308

main57104-14080iMA61..EUR198308-198512

9048023008

main90480-23008

9095001010

main90950-01010

9095001056

main90950-01056

9095001060

main90950-01060

9095001133

main90950-01133

9095001181

main90950-01181

9095001189

main90950-01189

9095001310

main90950-01310

9095001335

main90950-01335

9165140612

main91651-40612

9166140616

main91661-40616

29 parts on this diagram · 2 diagrams in section
