Toyota CELICA — FRONT AXLE HUB

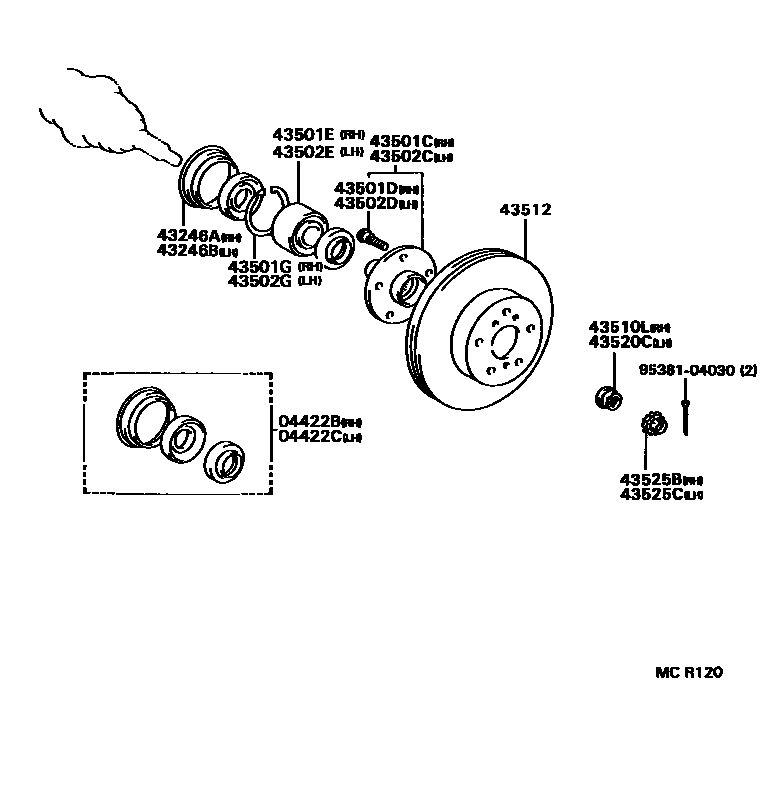

Parts diagram
04422BSEAL KIT, FRONT AXLE OIL, RH
main04422-12121i199601
W(ABS & SUPER STRUT SUSPENSION)
main04422-20060i199311-199601
W(ABS)
main04422-20080i199601
W(ABS)
main04422-20090i199311-199508
W(SUPER STRUT SUSPENSION)
main04422-20100i199311-199601
W(ABS & SUPER STRUT SUSPENSION)
main04422-20110i199508-199512
04422CSEAL KIT,FRONT AXLE OIL, LH
main04422-12121i199601
W(ABS & SUPER STRUT SUSPENSION)
main04422-20060i199311-199601
W(ABS)
main04422-20080i199601
W(ABS)
main04422-20090i199311-199508
W(SUPER STRUT SUSPENSION)
main04422-20100i199311-199601
W(ABS & SUPER STRUT SUSPENSION)
main04422-20110i199512
43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH
main43246-12020i199311
W(ABS)
main43246-17020i199311-199508
W(SUPER STRUT SUSPENSION)
main43246-20010i199508-199512
main43246-32020i199311
W(ABS & SUPER STRUT SUSPENSION)
43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH
main43246-12020i199311
W(ABS)
main43246-17020i199311-199508
W(SUPER STRUT SUSPENSION)
main43246-20010i199512
main43246-32020i199311
W(ABS & SUPER STRUT SUSPENSION)
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43502-20170i199311
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02070×5i199311
43501EBEARING (FOR FRONT AXLE HUB RH)
main90369-38003i199311-199508
43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
main90521-79002i199311
main90521-85002i199311
W(SUPER STRUT SUSPENSION)
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43502-20170i199311
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02070×5i199311
43502EBEARING (FOR FRONT AXLE HUB LH)
main90369-38003i199311-199508
43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)
main90521-79002i199311
main90521-85002i199311
W(SUPER STRUT SUSPENSION)
43510LNUT (FOR STEERING KNUCKLE RH)
main90178-22001i199709
main90179-22020i199311-199603
main90179-22025i199603-199606
43512DISC, FRONT
main43512-20580×2i199311
main43512-20590×2i199311
main43512-20610i199402-199606
RH
main43516-20010i199402-199606
LH
43520CNUT (FOR STEERING KNUCKLE LH)
main90178-22001i199709
main90179-22020i199311-199709
main90179-22025i199603-199606
W(ABS)
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
main43525-20030i199311
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
main43525-20030i199311
9538104030
main95381-04030

18 parts on this diagram · 2 diagrams in section

FRONT AXLE HUB for Toyota CELICA

This section contains 18 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CELICA. Key components include: SEAL KIT, FRONT AXLE OIL, RH, SEAL KIT,FRONT AXLE OIL, LH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH, HUB SUB-ASSY, FRONT AXLE, RH.
