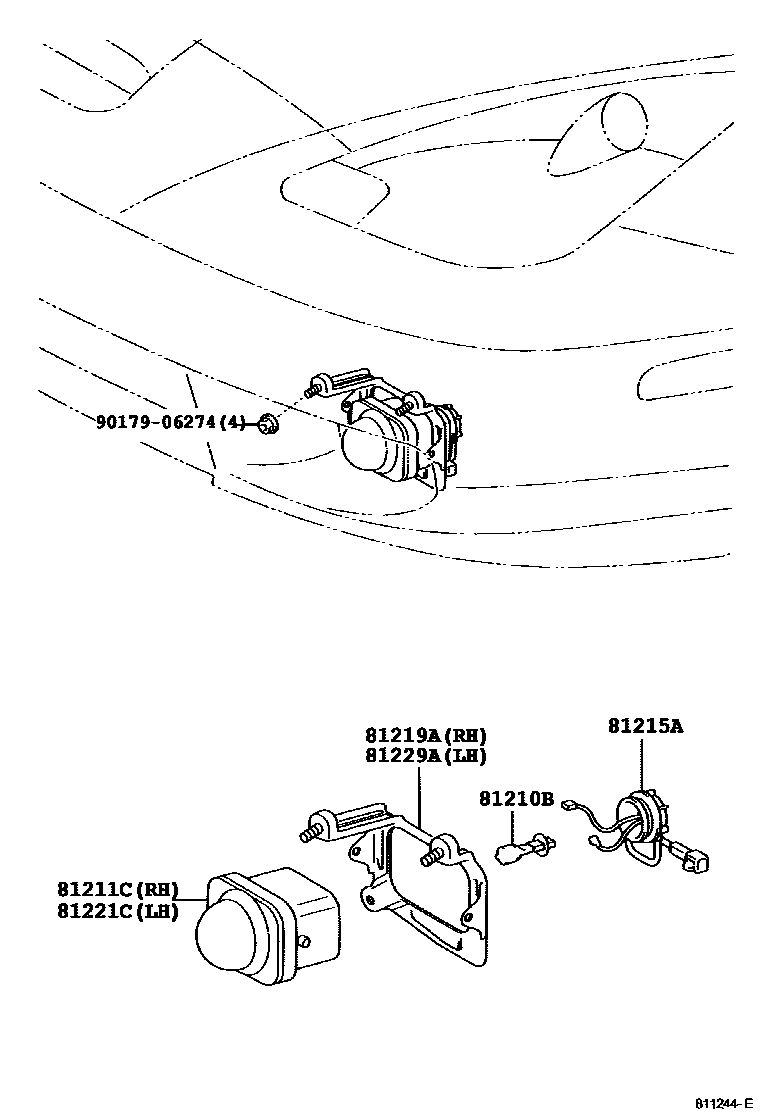

Toyota CELICA — FOG LAMP

81210BBULB, FOG LAMP

main90981-13018×2i199908-200208

12V 55W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-20430i199908-200208

main81221-20420i200208-200509

81215ASOCKET & WIRE, FOG LAMP

main81215-20430×2i199908-200208

81219ABRACKET, FOG LAMP, RH

main81219-20430i199908-200208

main81219-20480i200208-200509

81221CLAMP UNIT, FOG LAMP, LH

main81211-20430i200208-200509

main81221-20420i199908-200208

81229ABRACKET, FOG LAMP, LH

main81229-20420i199908-200208

main81229-20470i200208-200509

9017906274

main90179-06274

7 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota CELICA

This section contains 7 genuine Toyota parts for the FOG LAMP system of the Toyota CELICA. Key components include: BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, SOCKET & WIRE, FOG LAMP, BRACKET, FOG LAMP, RH, LAMP UNIT, FOG LAMP, LH.
