Toyota CELICA — FOG LAMP

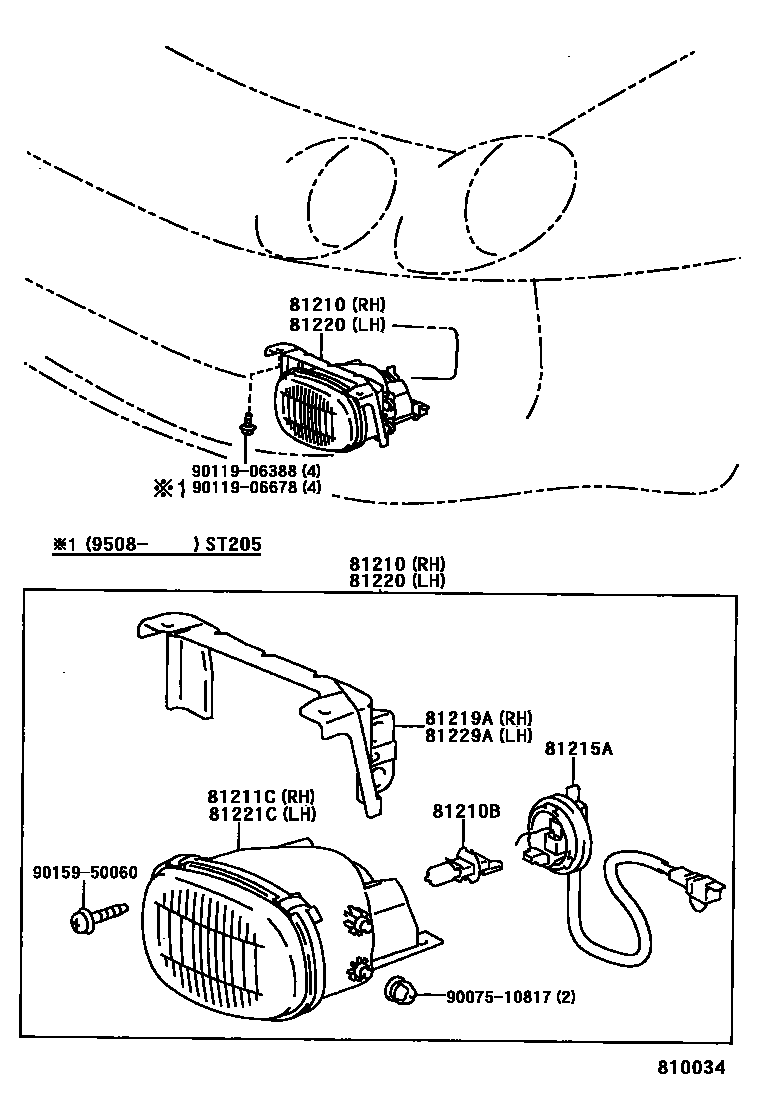

Parts diagram

81210LAMP ASSY, FOG

main81210-20290i199508-199512

main81210-20350i199311-199508

main81210-20370i199402-199606

81210BBULB, FOG LAMP

main90981-13018×2i199311

12V 55W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-20290i199508-199512

main81211-20350i199311-199508

main81211-20370i199402-199606

81215ASOCKET & WIRE, FOG LAMP

main81215-20270×2i199512

main81215-20330×2i199508-199512

main81215-20360×2i199402-199606

81219ABRACKET, FOG LAMP, RH

main52015-20310i199512

main81219-20330i199508-199512

main81219-20360i199402-199606

81220LAMP ASSY, FOG, LH

main81220-20280i199512

main81220-20340i199508-199512

main81220-20360i199402-199606

81221CLAMP UNIT, FOG LAMP, LH

main81211-20370i199402-199606

main81221-20280i199508-199512

main81221-20340i199508-199512

81229ABRACKET, FOG LAMP, LH

main52016-20150i199508-199512

main81229-20320i199311-199508

main81229-20360i199402-199606

9007510817

main90075-10817

9011906388

main90119-06388

9011906678

main90119-06678

9015950060

main90159-50060

12 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota CELICA

This section contains 12 genuine Toyota parts for the FOG LAMP system of the Toyota CELICA. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, SOCKET & WIRE, FOG LAMP, BRACKET, FOG LAMP, RH.
