Toyota CELICA — FOG LAMP

81210LAMP ASSY, FOG

main81210-20300i199108-199309

RH; WHITE BULB,RH

main81210-20310i199108-199311

main81210-29165i199108-199311

YELLOW BULB,RH

main81210-29175i198910-199108

main81210-29215i199109-199309

YELLOW BULB,RH

main81220-20290i199108-199309

LH; WHITE BULB,LH

main81220-20300i199108-199311

main81220-29115i199012-199108

main81220-29125i199108-199109

main81220-29165i199109-199309

YELLOW BULB,LH

81210BBULB, FOG LAMP

main90981-13018×2i199108-199109

12V 55W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-20130i198910-199008

main81211-20170i198910-199108

main81211-20210i199108-199109

YELLOW BULB

main81211-20300i199108-199109

WHITE BULB

main81211-20310i199108-199311

81213ABODY, FOG LAMP

main81213-20130i199008-199012

main81213-20170i198910-199108

main81223-20130i198910-199008

main81223-20170i198910-199108

81215ASOCKET & WIRE, FOG LAMP

main81215-20120×2i199109-199311

main81215-20170×2i199008-199012

81216BRIM, FOG LAMP, RH NO.1

main81216-20130i199108-199311

main81216-20170i198910-199108

81219ABRACKET, FOG LAMP, RH

main81219-20120i199109-199311

main81219-20140i199008-199012

main81219-20180i199108-199109

81221CLAMP UNIT, FOG LAMP, LH

main81221-20120i199108-199109

YELLOW BULB

main81221-20130i199008-199012

main81221-20170i199108-199109

main81221-20290i199108-199311

WHITE BULB

81226BRIM, FOG LAMP, LH

main81226-20130i199108-199311

main81226-20170i198910-199108

81229ABRACKET, FOG LAMP, LH

main81229-20110i199109-199311

main81229-20140i199008-199012

main81229-20180i198910-199108

8161920070

main81619-20070

9011906388

main90119-06388

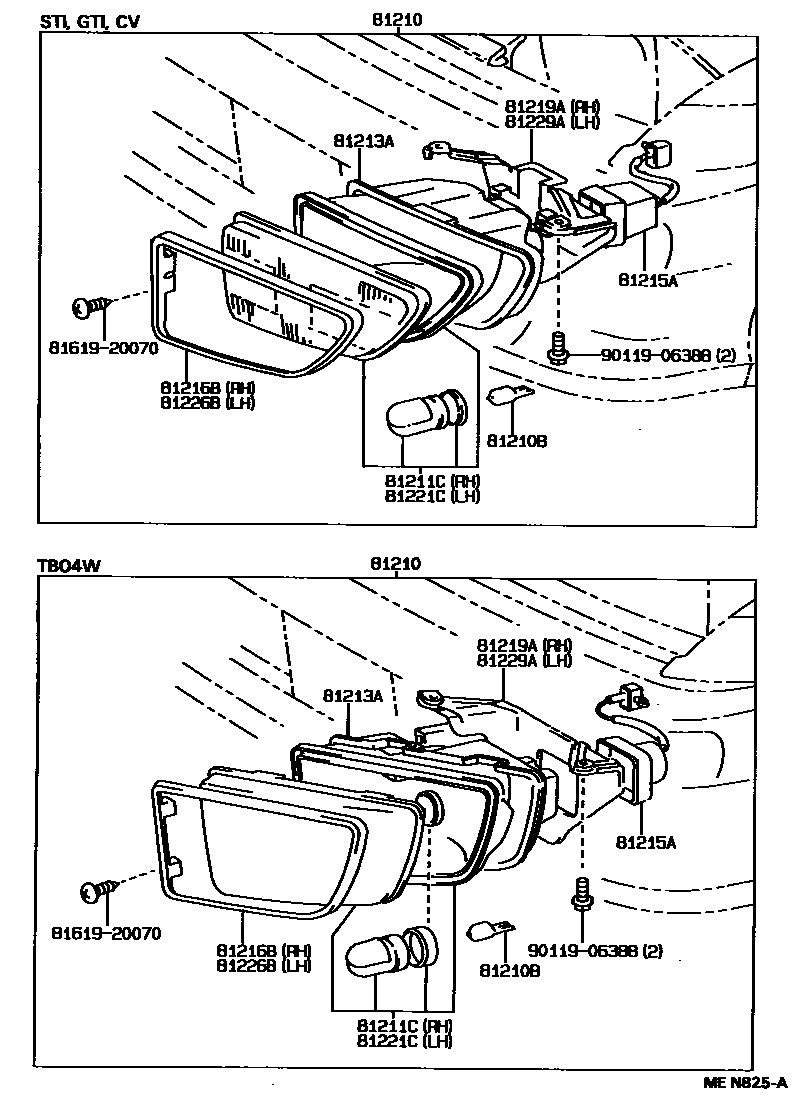

12 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota CELICA

This section contains 12 genuine Toyota parts for the FOG LAMP system of the Toyota CELICA. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, BODY, FOG LAMP, SOCKET & WIRE, FOG LAMP.
