Toyota CELICA — EXHAUST GAS RECIRCULATION SYSTEM

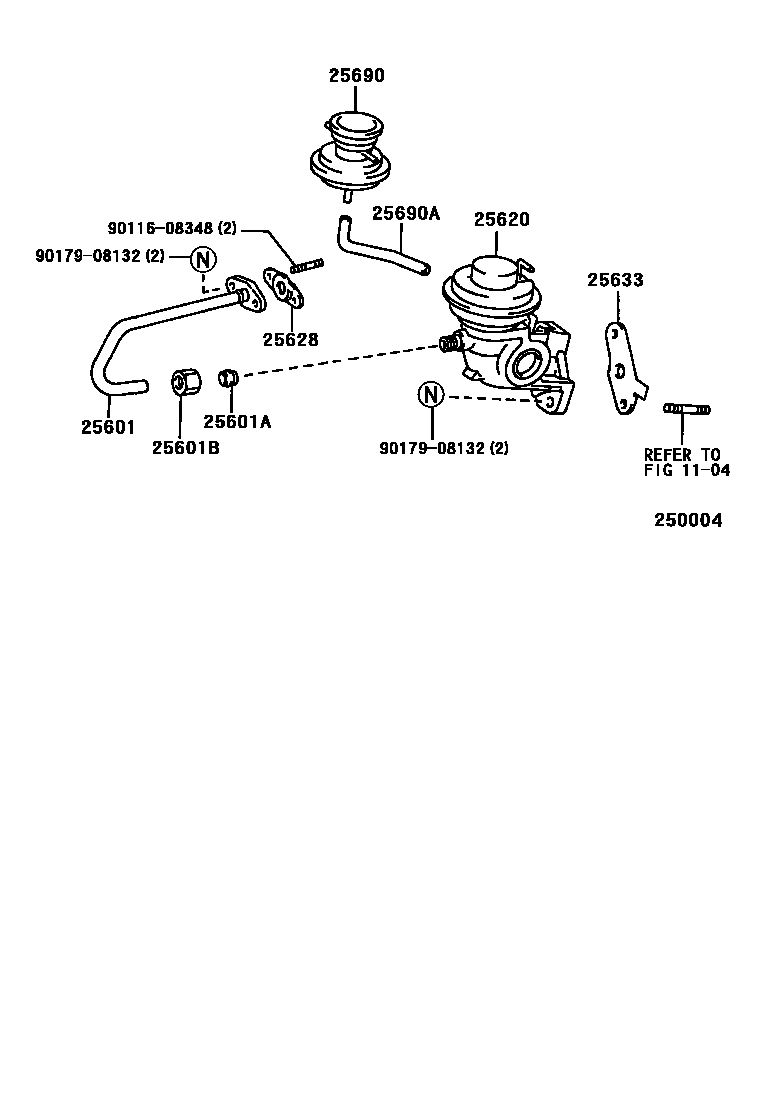

Parts diagram

1104CYLINDER HEAD

→ Go to FIG 11-04

25601PIPE SUB-ASSY, EGR, NO.1

main25601-88460i199606

main25601-88480i199402-199606

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042i199402-199606

25601BNUT, UNION, EGR PIPE, NO.1

main90402-20009i199402-199606

main90402-20073i199606

25620VALVE ASSY, EGR

main25620-74270i199402-199606

main25620-74280i199606

25628GASKET, EGR INLET

main25634-88460i199606

main25634-88480i199402-199606

25633GASKET, EGR VALVE

main25633-88460i199606

25690MODULATOR ASSY, EGR VACUUM

main25690-88480i199402-199606

main25870-88460i199606

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-88460i199606

main25695-88480i199402-199606

9011608348

main90116-08348

9017908132

main90179-08132

11 parts on this diagram · 2 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota CELICA

This section contains 15 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota CELICA. Key components include: CYLINDER HEAD, PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, VALVE ASSY, EGR.
