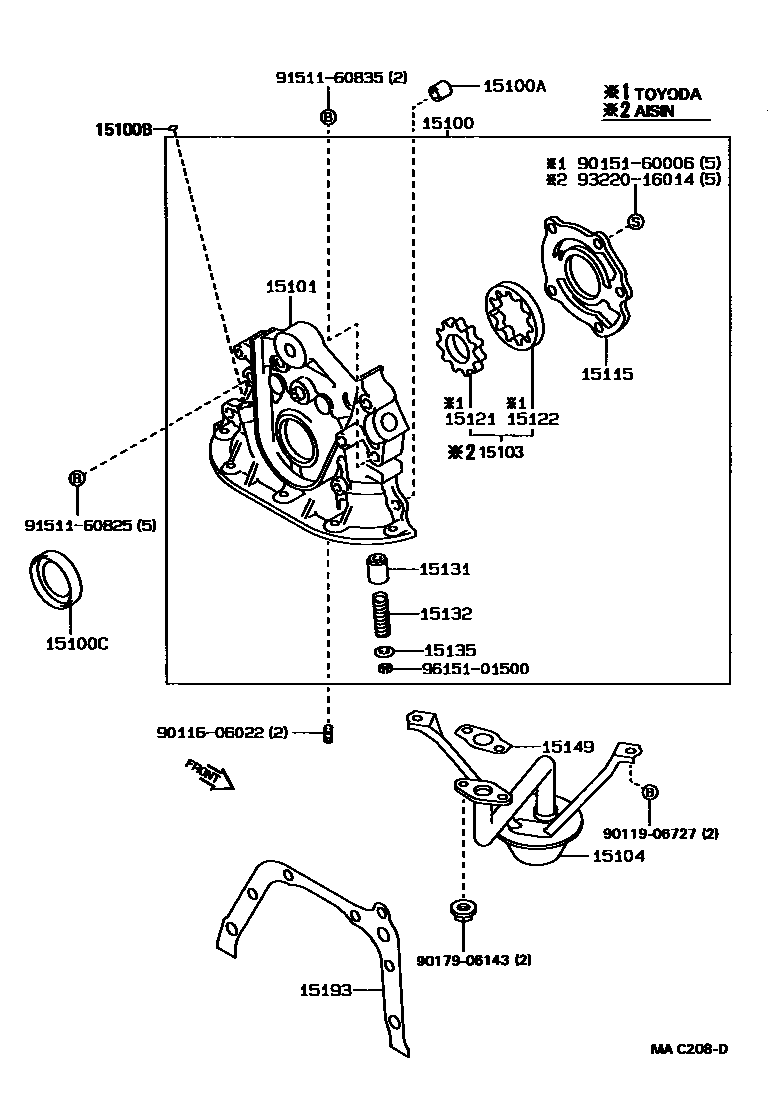

Toyota CELICA — ENGINE OIL PUMP

0001 1 0002 1 0003 1

15100PUMP ASSY, OIL

main15100-15050i4AFE..AT180198909-199309

main15100-74010i5SFE..ST184198909-199309

sub15100-74060

sub15197-74040

main15100-88381i3SGTE..ST185198910-199105

main15100-88382i3SGTE..ST185199105-199309

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021i4AFE..AT180198909-199309

15100BRING, O(FOR OIL PUMP)

main15188-63010i5SFE..ST184198909-199304

main15188-88382i3SGTE,5SFE..ST18#199105-199309

sub15188-74050

main96711-19010i4AFE..AT180198909-199105

main96721-19010i4AFE..AT180199105-199309

15100CSEAL(FOR OIL PUMP)

main15165-70010i3SGTE,5SFE..ST18#198909-199304

main15165-74020i5SFE..ST184199304-199309

main15165-88382i3SGTE..ST185199105-199309

main90311-32001i4AFE..AT180198909-198911

sub90311-32018

main90311-32018i4AFE..AT180198911-199309

sub90311-32020

15101BODY SUB-ASSY, OIL PUMP

main15011-15050i4AFE..AT180198909-199309

AISIN

main15101-15040i4AFE..AT180198909-199309

TOYODA KOUKI

15103GEAR SET, OIL PUMP

main15103-15020i4AFE..AT180198909-199309

AISIN

15104STRAINER SUB-ASSY, OIL

main15104-15080i4AFE..AT180198909-199201

sub15104-15090

main15104-15090i4AFE..AT180199201-199309

main15104-88360i5SFE..ST184198909-198912

main15104-88380i3SGTE,5SFE..ST18#198910-199309

15115COVER, OIL PUMP

main15115-15020i4AFE..AT180198909-199309

AISIN

main15115-15030i4AFE..AT180198909-199211

TOYODA KOUKI

sub15115-16060

main15115-16060i4AFE..AT180199211-199309

TOYODA KOUKI

15121GEAR, OIL PUMP DRIVE

main15121-15040i4AFE..AT180198909-199309

15122GEAR, OIL PUMP DRIVEN

main15122-15040i4AFE..AT180198909-199309

15131VALVE, OIL PUMP RELIEF

main15131-15030i4AFE..AT180198909-199309

TOYODA KOUKI

main15131-24010i4AFE..AT180198909-199309

AISIN

main15131-63010i3SGTE..ST185198910-199309

15132SPRING, OIL PUMP RELIEF VALVE

main15132-15030i4AFE..AT180198909-199309

TOYODA KOUKI

main15132-40010i5SFE..ST184198909-199309

AISIN

main15132-88380i3SGTE..ST185198910-199309

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i4AFE..AT180198909-199309

AISIN

main15135-15030i4AFE..AT180198909-199309

TOYODA KOUKI

15149GASKET, OIL STRAINER FLANGE

main15149-15010i4AFE..AT180198909-198912

sub15149-15011

main15149-15011i4AFE..AT180198912-199205

sub15149-16010

main15149-16010i4AFE..AT180199205-199309

15193GASKET, OIL PUMP

main15197-15011i4AFE..AT180198909-198912

sub15197-15012

main15197-15012i4AFE..AT180198912-199309

sub15197-15030

main15197-63021i3SGTE,5SFE..ST18#198909-199309

9011606022

main90116-06022

9011906727

main90119-06727

9015160006

main90151-60006

9017906143

main90179-06143

9151160825

main91511-60825

9151160835

main91511-60835

9322016014

main93220-16014

9615101500

main96151-01500

23 parts on this diagram · 3 diagrams in section
