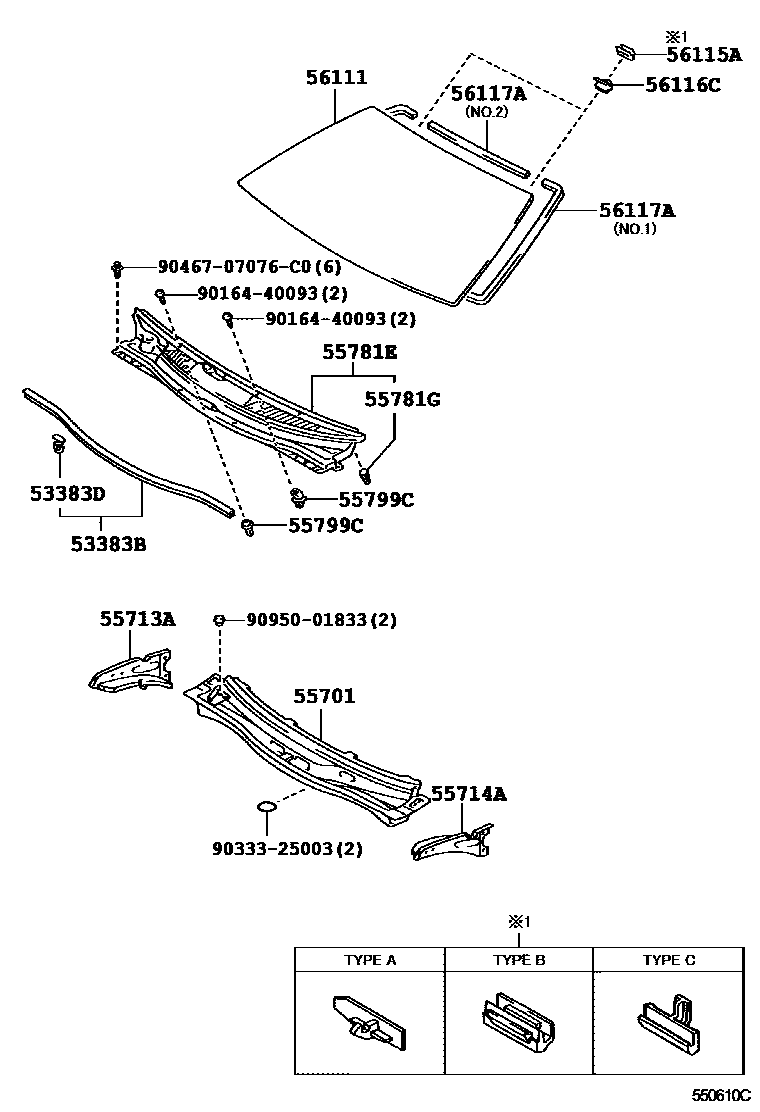

Toyota CELICA — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-20200i200208-200405

main53383-20201i200405-200507

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90467-10146×6i199908-200208

55701PANEL SUB-ASSY, COWL

main55700-2B210i199908-200208

main55700-2B211i200403-200507

55713APANEL, COWL TOP SIDE, RH

main55713-20160i199908-200208

55714APANEL, COWL TOP SIDE, LH

main55714-20160i199908-200208

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-20300i199908-200208

main55708-20310i200208-200507

COLD SPEC

55781GCLIP, COWL TOP VENTILATOR LOUVER

main67771-32150×2i200208-200507

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-12010×2i199908-200208

BLUE

main55799-20060×2i199908-200208

YELLOW

56111GLASS, WINDSHIELD

main56101-20040i199908-200208

*TL,T=4.76

main56101-20070i200208-200507

*TL,T=4.76

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010×2i199912-200208

TYPE C:REFER TO ILLUSTRATION

main56115-30100×2i200208-200507

TYPE B:REFER TO ILLUSTRATION

main56115-33040×2i199908-199910

TYPE A:REFER TO ILLUSTRATION

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i199908-200208

56117ADAM, WINDOW GLASS ADHESIVE

main56117-47010i199908-200208

*D,L=3204,NO.1:REFER TO ILLUSTRATION

main56118-20060i199908-200208

NO.2:REFER TO ILLUSTRATION

9016440093

main90164-40093

9033325003

main90333-25003

9046707076C0

main90467-07076C0

9095001833

main90950-01833

16 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota CELICA

This section contains 16 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CELICA. Key components include: SEAL, HOOD TO COWL TOP, CLIP(FOR HOOD TO COWL TOP SEAL), PANEL SUB-ASSY, COWL, PANEL, COWL TOP SIDE, RH, PANEL, COWL TOP SIDE, LH.
