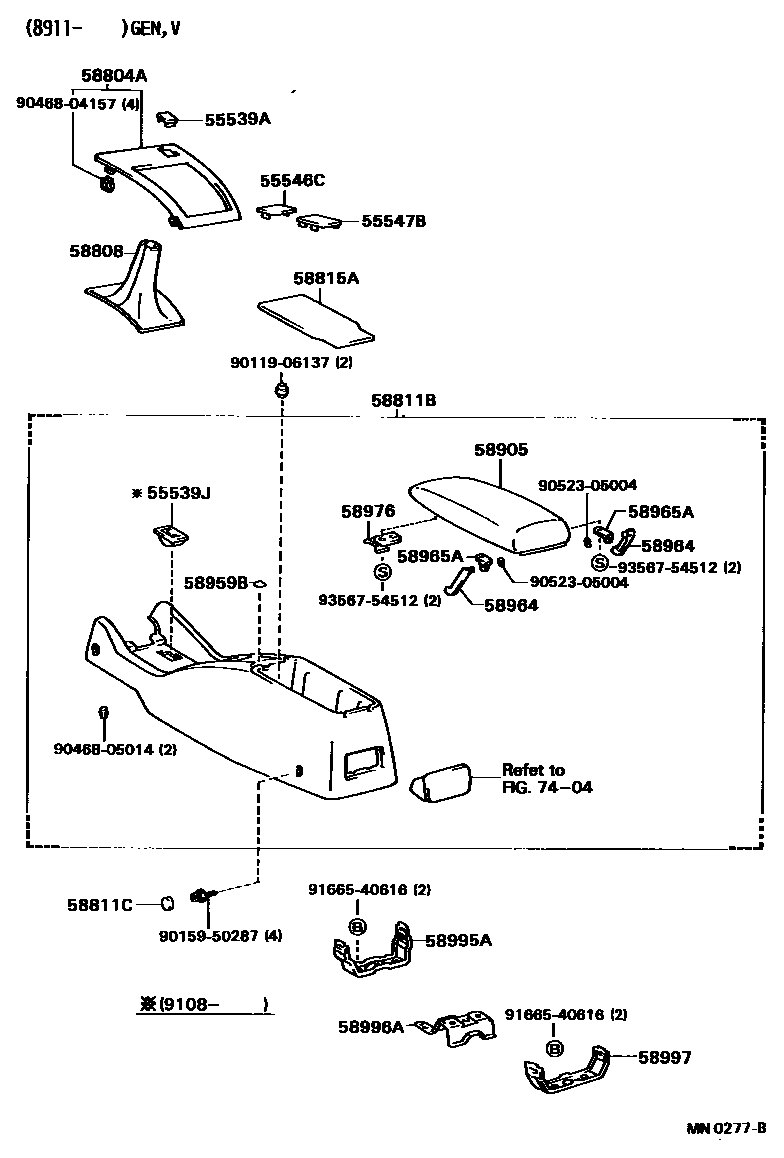

Toyota CELICA — CONSOLE BOX & BRACKET

0001 1 0002 1

55539ACOVER, SPARE SWITCH HOLE

main55539-20080-03iST18#..RHD..LB198910-199309

SHADOW GRAY,TRIM1#

sub55539-12130

sub55539-32010

main55539-20080-04iST182..RHD..LB198910-199311

DARK BLUE,TRIM8#

sub55539-12130

sub55539-32010

main55539-22100iAT180,ST18#..LHD..(CP,LB)198910-199311

55539JCOVER, SPARE SWITCH HOLE

main55539-32030-04iAT180,ST182..CP,LB199108-199311

DARK BLUE,TRIM8#

main55539-32030-B0iAT180,ST18#..CP,LB199108-199109

SHADOW GRAY,TRIM1#

55546CCOVER, POWER SEAT SWITCH HOLE

main55546-20020-03iAT180,ST18#..CP,LB198910-199309

SHADOW GRAY,TRIM1#

main55546-20020-04iAT180,ST182..CP,LB198910-199311

DARK BLUE,TRIM8#

55547BCOVER, REMOTE CONTROL MIRROR HOLE

main55547-20040-03iAT180198910-199311

SHADOW GRAY,TRIM1#

main55547-20040-04iAT180198910-199311

DARK BLUE,TRIM8#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-20040-03iST182..ATM198910-199311

SHADOW GRAY,TRIM1#

main58804-20040-04iST182..ATM198910-199311

DARK BLUE,TRIM8#

main58804-20050-03iST18#..RHD..MTM198910-199311

SHADOW GRAY,TRIM1#

main58804-20050-04iST182..RHD..LB..MTM198910-199311

DARK BLUE,TRIM8#

main58804-20070iAT180,ST18#..LHD198910-199311

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-20090iAT180,ST18#..MTM198910-199001

main58808-20091iAT180,ST18#..MTM199001-199008

main58808-20092iAT180,ST18#..MTM199008-199311

58811BBOX, CONSOLE

main58801-20200-03iAT180198910-199108

SHADOW GRAY,TRIM1#

main58801-20200-04iAT180198910-199108

DARK BLUE,TRIM8#

main58801-20201-P0iAT180199108-199311

SHADOW GRAY,TRIM1#

main58801-20201-R8iAT180199108-199311

DARK BLUE,TRIM8#

main58801-20210-03iST182198910-199108

SHADOW GRAY,TRIM1#

main58801-20210-04iST182..LB198910-199108

DARK BLUE,TRIM8#

main58801-20211-P0iST182199109-199311

SHADOW GRAY,TRIM1#

main58801-20211-R8iST182..LB199108-199311

DARK BLUE,TRIM8#

main58801-20220-03iST185198910-199108

SHADOW GRAY,TRIM1#

main58801-20221-P0iST185199108-199311

SHADOW GRAY,TRIM1#

58811CCAP(FOR CONSOLE)

main90339-10009-03×4iAT180,ST18#198910-199311

SHADOW GRAY,TRIM1#

main90339-10009-04×4iAT180,ST182..CP,LB198910-199311

DARK BLUE,TRIM8#

58815ACARPET, CONSOLE BOX

main58815-20020-01iAT180,ST182..CP,LB198910-199311

BLACK,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-20120-03iST18#198910-199311

SHADOW GRAY,TRIM1#

main58905-20120-04iST182..LB198910-199311

DARK BLUE,TRIM8#

main58951-20110-03iAT180198910-199311

SHADOW GRAY,TRIM1#

main58951-20110-04iAT180198910-199311

DARK BLUE,TRIM8#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010×2iAT180,ST18#198910-199311

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20020iAT180,ST18#198910-199311

LH

main58964-90K00iAT180,ST18#198910-199311

RH

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iAT180198910-199311

LH

main58965-20020iAT180198910-199311

RH

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20020iAT180,ST18#198910-199311

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-20050iAT180,ST182198910-199311

main58995-20060iST185198910-199311

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-20050iAT180,ST182198910-199311

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-20020iAT180,ST182198910-199311

main58997-20040iST185198910-199311

7404

9011906137

main90119-06137

9015950287

main90159-50287

9046804157

main90468-04157

9046805014

main90468-05014

9052305004

main90523-05004

9166540616

main91665-40616

9356754512

main93567-54512

25 parts on this diagram · 2 diagrams in section
