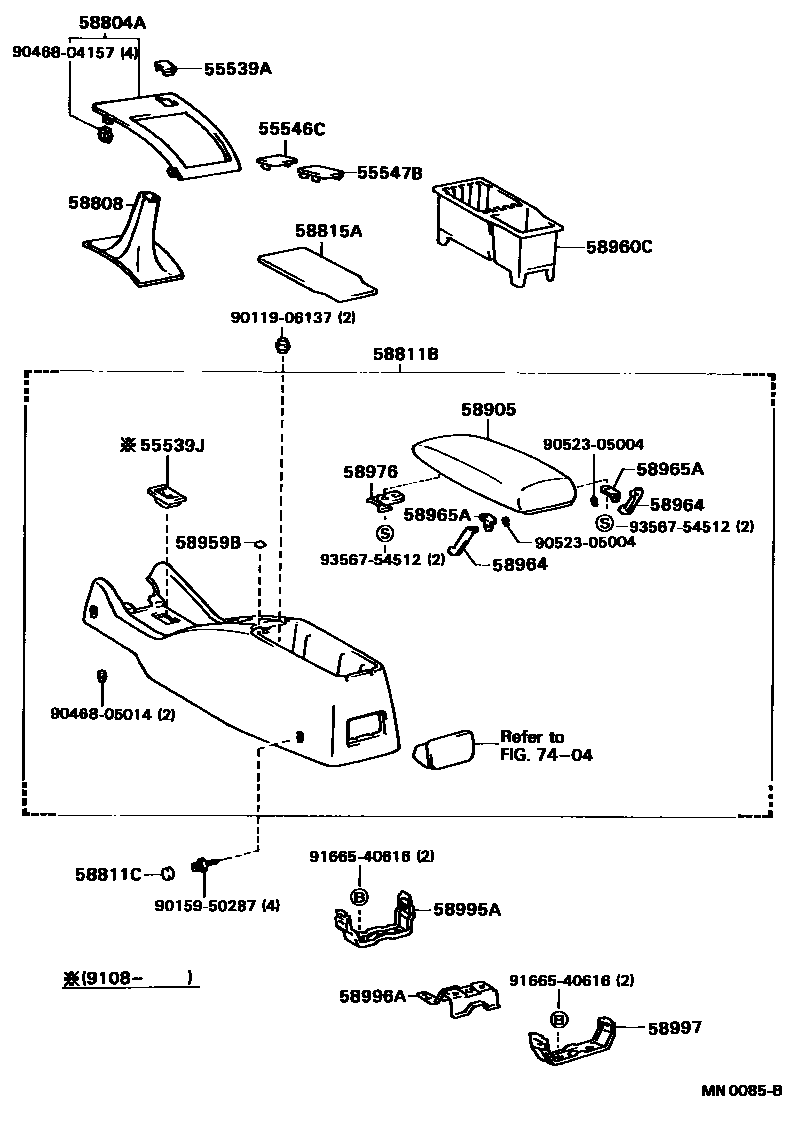

Toyota CELICA — CONSOLE BOX & BRACKET

0001 1 0003 1

55539ACOVER, SPARE SWITCH HOLE

main55539-22100iAT180,ST18#..CP,LB198910-199309

55539JCOVER, SPARE SWITCH HOLE

main55539-32030-04iAT180,ST184..CP,LB199108-199309

DARK BLUE,TRIM8#

sub55539-32030

main55539-32030-B0iAT180,ST18#..CP,LB199108-199309

SHADOW GRAY,TRIM1#

sub55539-32030

55546CCOVER, POWER SEAT SWITCH HOLE

main55546-20020-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

sub55546-20020

main55546-20020-03iAT180,ST18#..CP,LB198909-199309

SHADOW GRAY,TRIM1#

sub55546-20020

main55546-20020-04iAT180,ST18#..CP,LB198909-199309

DARK BLUE,TRIM8#

sub55546-20020

main55546-20020-26iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

sub55546-20020

55547BCOVER, REMOTE CONTROL MIRROR HOLE

main55547-20040-02iAT180198909-199008

RED,TRIM3#

main55547-20040-03iAT180;ST184..CVT198909-199309

SHADOW GRAY,TRIM1#

main55547-20040-04iAT180198909-199309

DARK BLUE,TRIM8#

main55547-20040-16iAT180199008-199108

CHOCOLATE BROWN,TRIM4#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-20060iAT180,ST184..ATM198909-199309

main58804-20070iAT180,ST18#..MTM198909-199309

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-20090iAT180,ST18#..MTM198909-199001

sub58808-20091

main58808-20091iAT180,ST18#..MTM199001-199008

main58808-20092iAT180,ST18#..MTM199008-199309

58811BBOX, CONSOLE

main58801-20200-02iAT180198909-199008

RED,TRIM3#

sub58801-20201

main58801-20200-03iAT180198909-199108

SHADOW GRAY,TRIM1#

sub58801-20201

main58801-20200-04iAT180198909-199108

DARK BLUE,TRIM8#

sub58801-20201

main58801-20200-16iAT180199008-199108

CHOCOLATE BROWN,TRIM4#

sub58801-20201

main58801-20201-P0iAT180199108-199309

SHADOW GRAY,TRIM1#

main58801-20201-R8iAT180199108-199309

DARK BLUE,TRIM8#

main58801-20210-02iST184..CP,LB198909-199008

RED,TRIM3#

sub58801-20211

main58801-20210-03iST184..CVT198909-199109

SHADOW GRAY,TRIM1#

sub58801-20211

main58801-20210-04iST184..CP,LB198909-199108

DARK BLUE,TRIM8#

sub58801-20211

main58801-20210-26iST184..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

sub58801-20211

main58801-20211-P0iST184199108-199309

SHADOW GRAY,TRIM1#

main58801-20211-R8iST184..CP,LB199108-199309

DARK BLUE,TRIM8#

main58801-20220-02iST185198910-199008

RED,TRIM3#

sub58801-20221

main58801-20220-03iST185198910-199108

SHADOW GRAY,TRIM1#

sub58801-20221

main58801-20220-04iST185198910-199108

DARK BLUE,TRIM8#

sub58801-20221

main58801-20220-16iST185199008-199108

CHOCOLATE BROWN,TRIM4#

sub58801-20221

main58801-20221-P0iST185199108-199309

SHADOW GRAY,TRIM1#

58811CCAP(FOR CONSOLE)

main90339-10009-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

sub90339-10009

main90339-10009-03iAT180,ST18#198909-199309

SHADOW GRAY,TRIM1#

sub90339-10009

main90339-10009-04iAT180,ST18#..CP,LB198909-199309

DARK BLUE,TRIM8#

sub90339-10009

main90339-10009-06iAT180,ST184..CP,LB199008-199108

SABLE,TRIM4#

sub90339-10009

58815ACARPET, CONSOLE BOX

main58815-20020-01iAT180,ST184..(CP,LB)..NOB199008-199108

BLACK,TRIM1#,4#,8#

main58815-20020-01iAT180,ST184..(CP,LB)..NOB198909-199008

BLACK,TRIM1#,3#,8#

main58815-20020-01iST184..CVT198909-199309

BLACK,TRIM1#

main58815-20020-01iAT180,ST184..(CP,LB)..NOB199108-199309

BLACK,TRIM1#,8#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-20120-02iST18#..CP,LB198909-199008

RED,TRIM3#

sub58905-20120

main58905-20120-03iST18#198909-199309

SHADOW GRAY,TRIM1#

sub58905-20120

main58905-20120-04iST184..CP,LB198909-199309

DARK BLUE,TRIM8#

sub58905-20120

main58905-20120-26iST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

sub58905-20120

main58951-20110-02iAT180198909-199008

RED,TRIM3#

sub58951-20110

main58951-20110-03iAT180198909-199309

SHADOW GRAY,TRIM1#

sub58951-20110

main58951-20110-04iAT180198909-199309

DARK BLUE,TRIM8#

sub58951-20110

main58951-20110-06iAT180199008-199108

CHOCOLATE BROWN,TRIM4#

sub58951-20110

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010iAT180,ST18#198909-199309

58960CHOLDER ASSY, CASSETTE CASE

main58960-20010iST184..CVT;ST184..GT..CND198909-199309

FOR CASSETTE

main58960-20010iST184..GT..CND199008-199211

FOR CASSETE

main58960-20010iAT180,ST184..GTS,ST198909-199211

main58960-20020iST185198910-199309

main58960-20030iST184198909-199309

FOR CD

main58960-20040iST185198910-199309

FOR CD

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20020iAT180,ST18#198909-199309

LH

main58964-90K00iAT180,ST18#198909-199309

RH

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iAT180198909-199309

LH

main58965-20020iAT180198909-199309

RH

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20020iAT180,ST18#198909-199309

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-20050iAT180,ST184198909-199309

main58995-20060iST185198910-199309

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-20050iAT180,ST184198909-199309

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-20020iAT180,ST184198909-199309

main58997-20040iST185198910-199309

7404

9011906137

main90119-06137

9015950287

main90159-50287

9046804157

main90468-04157

9046805014

main90468-05014

9052305004

main90523-05004

9166540616

main91665-40616

9356754512

main93567-54512

26 parts on this diagram · 2 diagrams in section
