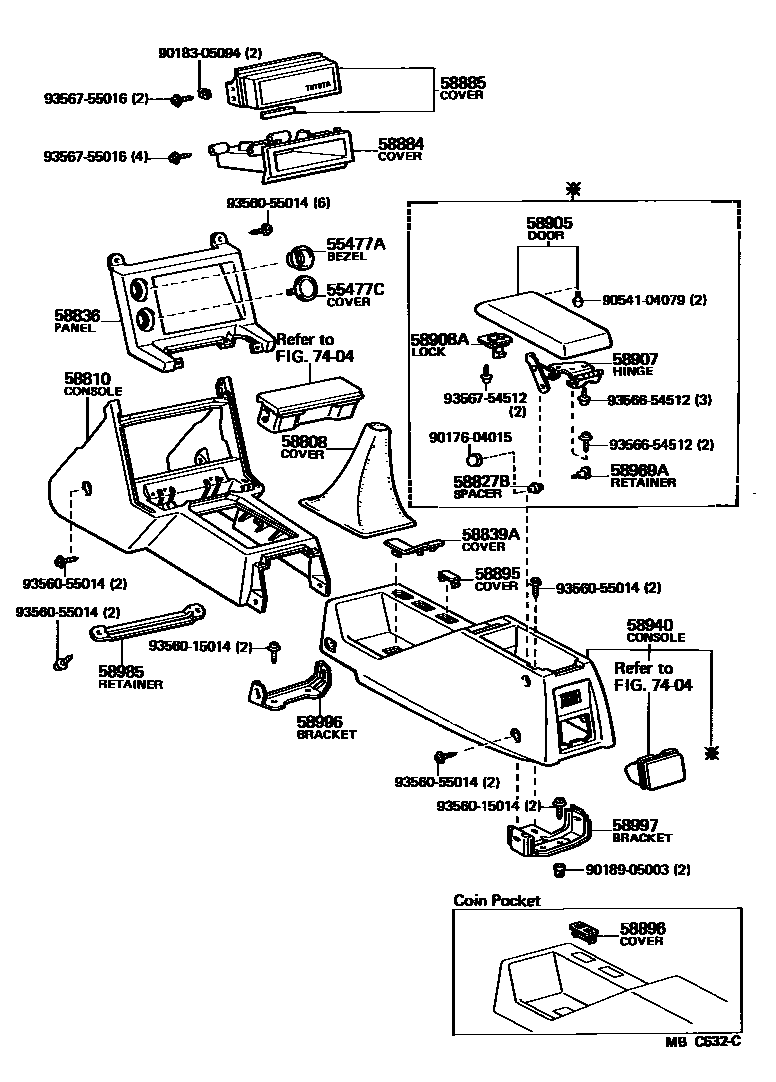

Toyota CELICA — CONSOLE BOX & BRACKET

0001 1 0003 1

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-14050iAA63,MA61,RA6#,SA63,TA60198108-198512

55477CCOVER, COOLER SWITCH HOLE

main55477-10010iAA63,MA61,RA6#,SA63,TA60198108-198512

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-14100-01iAA63,MA61,RA6#,SA63,TA60..5F198108-198507

BLACK,BLACK,TRIM2#

main58808-14100-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

main58808-14100-04iAA63,MA61,RA6#,SA63,TA60..5F198108-198512

BLUE,BLUE,TRIM8#

main58808-14100-06iAA63,RA6#,SA63,TA60..5F198108-198507

DARK BROWN,BROWN,TRIM4#

main58808-14100-12iMA61..5F..(ARL,GEN,SAA)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

58810CONSOLE ASSY

main58811-14180-01iAA63,MA61,RA6#,SA63,TA60198108-198512

BLACK,BLACK,TRIM2#

main58811-14180-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main58811-14180-04iAA63,MA61,RA6#,SA63,TA60198108-198512

BLUE,BLUE,TRIM8#

main58811-14180-06iAA63,RA6#,SA63,TA60198108-198507

DARK BROWN,BROWN,TRIM4#

main58811-14180-12iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

58827BSPACER, CONSOLE COMPARTMENT DOOR STOPPER

main58827-20021iAA63,MA61,RA6#,SA63..GT,SPR,XT198108-198512

58836PANEL, CONSOLE, UPPER FRONT

main58804-14010iMA61,RA61..RHD198108-198308

main58804-14011iMA61..RHD198308-198512

main58804-14020iMA61..SAA198208-198308

main58804-14021iMA61..LHD198308-198512

main58804-14030iMA61,RA61,63,TA60..LHD..EUG198108-198308

W/SOFT PAD

main58804-14031iAA63,MA61,RA61,TA60..LHD..EUG198308-198512

W/SOFT PAD

main58821-14070iRA60,63..RHD198108-198308

main58821-14071iAA63,RA6#,SA63..RHD..(ARL,GEN)198308-198507

main58821-14080iMA61,RA6#,TA60..LHD..(EUR,GEN,ME)198108-198212

main58821-14081iRA61..SDZ;AA63,RA61,TA60..GEN,SAA198308-198507

58839ACOVER, CONSOLE BOX HOLE

main58839-14010-01iAA63,RA6#,SA63,TA60198108-198507

BLACK,BLACK,TRIM2#

main58839-14010-04iMA61..EUR,SA198112-198512

BLUE,BLUE,TRIM8#

main58839-14010-06iAA63,RA6#,SA63,TA60198108-198507

DARK BROWN,BROWN,TRIM4#

58884COVER, STEREO OPENING

main55521-14050iAA63,MA61,RA6#,SA63,TA60198108-198512

58885COVER, CONSOLE BOX OPENING

main55522-14070iAA63,MA61,RA61,63,TA60..LHD..EUG198108-198512

W/SOFT PAD

main55522-14080iAA63,MA61,RA60,61,63,TA60..EUR,GEN,SA198108-198512

sub55522-20070

58895COVER, SWITCH HOLE, NO.1

main55539-24010-01iAA63,MA61,RA6#,SA63,TA60198108-198512

BLACK,BLACK,TRIM2#

sub55539-32010

sub55539-20030

main55539-24010-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub55539-32010

sub55539-20030

main55539-24010-04iAA63,MA61,RA6#,SA63,TA60198108-198512

BLUE,BLUE,TRIM8#

sub55539-32010

sub55539-20030

main55539-24010-06iAA63,RA6#,SA63,TA60198108-198507

DARK BROWN,BROWN,TRIM4#

sub55539-32010

sub55539-20030

main55539-24010-12iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub55539-32010

sub55539-20030

58896COVER, SWITCH HOLE, NO.2

main55539-14030-01iMA61,RA6#,TA60198108-198208

W/COIN POCKET,BLACK,BLACK,TRIM2#

main55539-14030-04iMA61,RA6#,TA60198108-198208

W/COIN POCKET,BLUE,BLUE,TRIM8#

main55539-14030-06iMA61,RA6#,TA60198108-198208

W/COIN POCKET,DARK BROWN,BROWN,TRIM4#

main55539-14031-01iAA63,MA61,RA6#,SA63,TA60198208-198512

W/COIN POCKET,BLACK,BLACK,TRIM2#

main55539-14031-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main55539-14031-04iAA63,MA61,RA6#,SA63,TA60198208-198512

W/COIN POCKET,BLUE,BLUE,TRIM8#

main55539-14031-06iAA63,RA6#,SA63,TA60198208-198507

W/COIN POCKET,DARK BROWN,BROWN,TRIM4#

main55539-14031-12iMA61..ARL,GEN,SAA198308-198512

W/COIN POCKET,DEEP MAROON,RED/MAROON,TRIM3#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-14040-01iMA61..EUR,SA198112-198512

BLACK,BLACK,TRIM2#

main58905-14040-04iMA61..EUR,SA198112-198512

BLUE,BLUE,TRIM8#

main58905-14040-06iAA63,RA6#,SA63..GT,XT198108-198507

DARK BROWN,BROWN,TRIM4#

main58905-24010-01iMA61..EUG198209-198308

GEN SPEC,BLACK,BLACK,TRIM2#

main58905-24010-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

main58905-24010-04iMA61..EUG198209-198308

GEN SPEC,BLUE,BLUE,TRIM8#

main58905-24010-12iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-14010iAA63,MA61,RA6#,SA63..GT,SPR,XT198108-198512

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-14010iMA61..EUG198209-198308

GENERAL COUNTRIES SPEC

main58908-22010iMA61..EUR,SA198112-198512

58940CONSOLE ASSY, REAR

main58901-14040-01iAA63,RA60,61,65,SA63,TA60..GTS,LT,ST198108-198507

BLACK,BLACK,TRIM2#

main58901-14040-04iAA63,RA60,61,65,SA63,TA60..GTS,LT,ST198108-198507

BLUE,BLUE,TRIM8#

main58901-14040-06iAA63,RA60,61,65,SA63,TA60..GTS,LT,ST198108-198507

DARK BROWN,BROWN,TRIM4#

main58901-14050-01iAA63,RA6#,SA63..GT,XT198108-198507

BLACK,BLACK,TRIM2#

main58901-14050-04iAA63,RA6#,SA63..GT,XT198108-198507

BLUE,BLUE,TRIM8#

main58901-14050-06iMA61..SDZ;MA61..5F..EUG198112-198512

DARK BROWN,BROWN,TRIM4#

main58901-14080-01iMA61..4FC..EUR198308-198512

BLACK,BLACK,TRIM2#

main58901-14080-04iMA61..4FC..EUR198308-198512

BLUE,BLUE,TRIM8#

main58901-14080-06iMA61..4FC..EUR198308-198512

DARK BROWN,BROWN,TRIM4#

main58901-24011-01iMA61..RHD..(ARL,GEN)198308-198512

BLACK,BLACK,TRIM2#

main58901-24011-02iMA61..RHD198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main58901-24011-04iMA61..RHD..(ARL,GEN)198308-198512

BLUE,BLUE,TRIM8#

main58901-24011-12iMA61..RHD..(ARL,GEN)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main58901-24021-01iMA61..LHD..(GEN,SAA)198208-198512

BLACK,BLACK,TRIM2#

main58901-24021-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

main58901-24021-04iMA61..LHD..(GEN,SAA)198208-198512

BLUE,BLUE,TRIM8#

main58901-24021-12iMA61..LHD..(GEN,SAA)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER

main58969-20010iAA63,MA61,RA6#,SA63..GT,SPR,XT198108-198512

58985RETAINER, CONSOLE BOX

main58985-14020iMA61..TWC..(EUR,SA);AA63,RA61,63,TA60..EUG198108-198512

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58902-14030iAA63,MA61,RA6#,SA63,TA60198308-198512

main58996-14010iMA61..LHD..EUG198209-198308

GENERAL COUNTRIES SPEC

sub58996-14011

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-24010iAA63,MA61,RA6#,SA63,TA60198108-198512

7404

9017604015

main90176-04015

9018305094

main90183-05094

9018905003

main90189-05003

9054104079

main90541-04079

9356015014

main93560-15014

9356055014

main93560-55014

9356654512

main93566-54512

9356754512

main93567-54512

9356755016

main93567-55016

29 parts on this diagram · 2 diagrams in section
