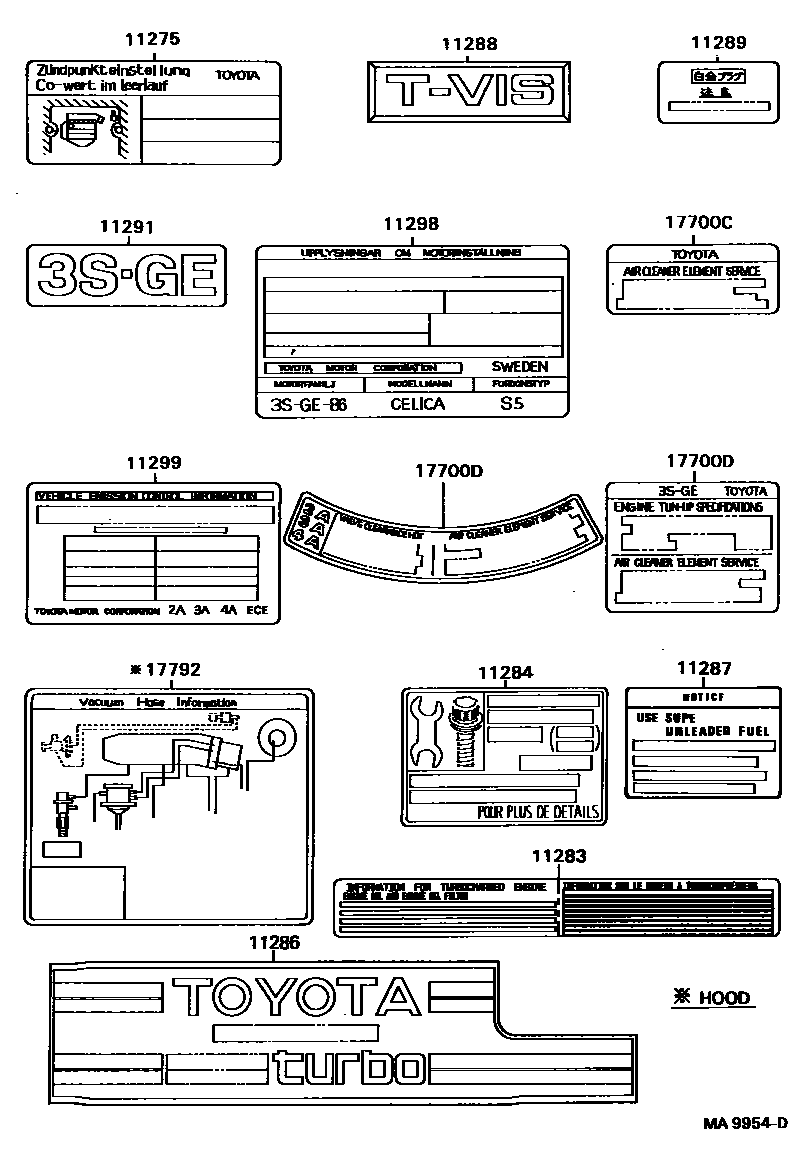

Toyota CELICA — CAUTION PLATE & NAME PLATE (ENGINE)
11275PLATE, IGNITION TIMING ADJUSTING CAUTION
SWEDEN SPEC
SWEDEN SPEC
11283PLATE, TURBOCHARGER CAUTION
11284PLATE, ENGINE BOLT INFORMATION
11286PLATE, ENGINE SPECIFICATION
11287LABEL, FUEL SELECTION NOTICE
11288PLATE, ENGINE SYSTEM
11289PLATE, SPARK PLUG CAUTION
11291PLATE, ENGINE NAME
11298PLATE, EMISSION CONTROL INFORMATION
SWEDEN SPEC
SWEDEN SPEC
11299PLATE, IDLE ADJUSTING CAUTION
17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)
17700DPLATE, ENGINE CAUTION
13 parts on this diagram · 1 diagram in section
