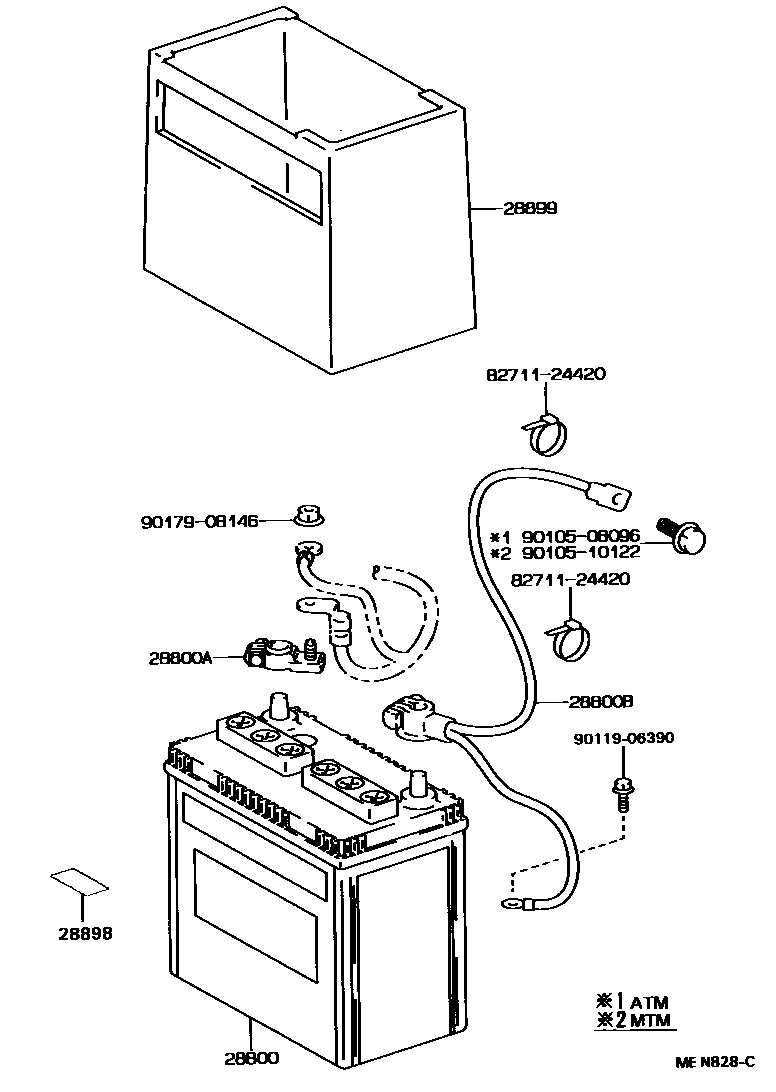

Toyota CELICA — BATTERY & BATTERY CABLE
28800BATTERY
32C24L
55D23L
28800ATERMINAL, BATTERY POSITIVE
28800BCABLE, BATTERY TO GROUND
28898PLATE, BATTERY
28899INSULATOR, BATTERY
8271124420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-24420
9010508096
main90105-08096
9010510122
main90105-10122
9011906390
main90119-06390
9017908146
main90179-08146
10 parts on this diagram · 1 diagram in section
BATTERY & BATTERY CABLE for Toyota CELICA
This section contains 10 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota CELICA. Key components include: BATTERY, TERMINAL, BATTERY POSITIVE, CABLE, BATTERY TO GROUND, PLATE, BATTERY, INSULATOR, BATTERY.
